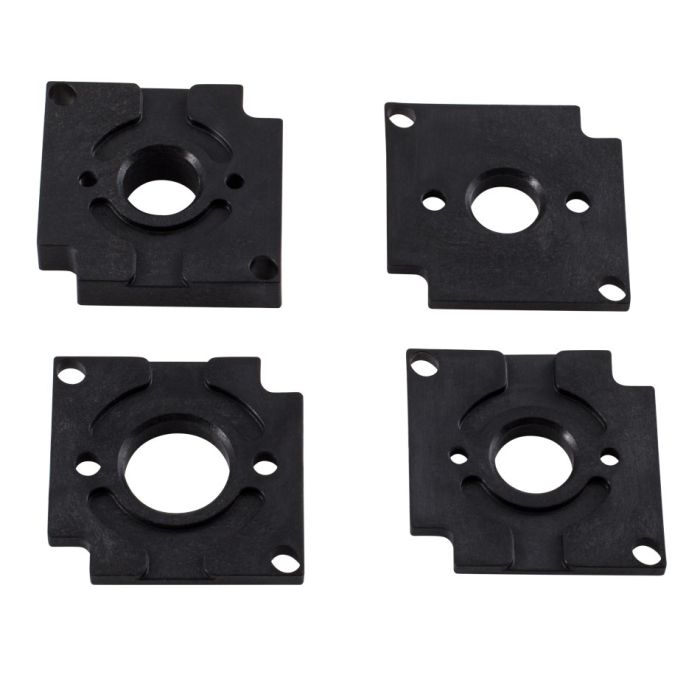

Motor Mounting Plates (clockwise from top left: AM-9015, BAG, RS-550, RS-775)

VersaPlanetary Motor Mounting Plates with Pilot

P/N: 217-3564

Redesigned plastic motor mounting plates for use with the VersaPlanetary Gearbox. Includes plates for the BAG, RS-550, 775 Series, and AM-9015 motors.

CDN$ 7.99

In Stock

Add Items to Cart
OR

Technical Specifications

Kit Contents
  • (1)BAG Motor Mounting Plate
  • (1)RS-550 Mounting Plate
  • (1)775 Series Mounting Plate
  • (1)AM-9015 Mounting Plate
CAD Model BAG Motor Motor Mounting Plate (STEP File)
RS 550 Motor Mounting Plate (STEP File)
RS 775 Motor Mounting Plate (STEP File)
AM 9015 Motor Mounting Plate (STEP File)
Drawing Detail Drawing: 217-3564 (Motor Mounting Plates with Pilot) (PDF)
Weight 0.01 lb (per plate)
