Bar 1x25

 Bar 1x25
  • Bar 1x25

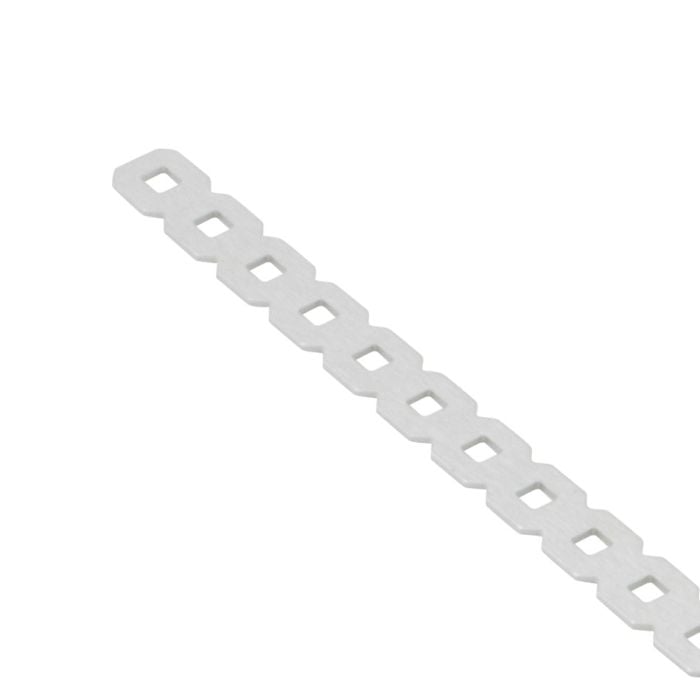

Bar 1x25 (8-pack)

P/N: 275-1141

VEX bar with holes on 0.500" increments. Can be cut on 0.500" increments.

  • Made from cold rolled steel, 0.046" thick, zinc plated.
  • The item is (8) to a package.
$12.99

In Stock

Add Items to Cart
OR

Gears

This Gear Kit contains additional gears so you will always have the right combination available to ensure you can achieve the desired balance of torque, speed, and direction.


To expand your inventing possibilities, the 60- and 84-tooth gears have extra mounting holes. These mounting holes can be used for attaching metal bars or parts to these gears when using them as part of a turntable system, or other similar designs.


This kit contains four sizes of VEX Spur Gears (12-, 36-, 60-, and 84-tooth gears). The 60- and 84-tooth gears have extra mounting holes for attaching metal bars or parts to these gears when using them as part of a turntable system or similar design.

  • Create robot transmissions, gearboxes, and gear reductions.
  • Vary the speed or torque of robot motion systems.
  • Increase design possibilities for your robots.

Build mechanisms capable of achieving higher torque or speed than ever before with High Strength Gears - lift heavier loads and survive bigger impacts with the additional gear ratio options provided by the largest high strength gear available.


  • Works with the VEX High Strength Gear Kit or any VEX spur gear
  • Double-thick face width and ribbing provide added strength
  • Metal Square Hole Inserts prevent axles from "stripping"
  • Build gearboxes that resist high shock-loads
  • Bolt gears together for added strength


Now modified for 1/4" shaft, also includes inserts for .125" shaft. These metal 12-tooth spur gears are great for applications under high shock load or requiring high strength. Look for this update to begin rolling out in the next few months!

  • Double-thick face.
  • All metal gear for high strength.
  • Mates with standard VEX gears.



This High Strength Gear Kit provides several new gears with features to handle higher loads. Each of these gears has a wider face width; this means each tooth is wider so applied loads will be spread over a larger area.


The 12-tooth High Strength Gear is molded out of powdered metal. The 36-tooth and 60-tooth Gears have powdered metal inserts. These metallic components will protect the gear from high loads applied by a VEX axle.


  • High strength gears mate with all VEX spur gears.
  • Double-thick face width provides added tooth strength.
  • Metal Square Hole Inserts prevent axles from "stripping".
  • Use metal pinions for high strength where it counts.
  • Use the round-hole inserts to build free spinning idler gears.
  • Build gearboxes that resist high shock-loads.
  • Bolt Gears together for added strength.

Rack Gears can be used to turn rotary motion into linear motion.


  • Use any VEX spur gear as a pinion to drive these rack gears.
  • Stack multiple rack gears back to back for longer motions.
  • Combine these with a VEX linear slide and Rack Gear Bracket (sold separately) to create a simple linear actuator.
  • Each Rack Gear includes (3) 6-32 threaded inserts on their back face. Mount these similar to VEX motors or servos with 6-32 screws.
  • Discontinued. Available while supplies last



Now with a new design! The Rack Gear v2 is wider and thereby more compatible with VEX High Strength gears. v2 has also eliminated the brass inserts from the original design, and replaced them with molded-in nut pockets. Now you can use 8-32 screws!

This Advanced Gear Kit contains several gear types designed to help you build advanced mechanical systems.


The rack gear will mount on any VEX metal component and mesh with any VEX gear to create linear motion systems.


The worm gears allow users to create very high reduction gearing in a small package; these gears will also resist "back driving" which may be useful in some applications.


The kit comes with several bevel gears which allow designers to transfer motion "around corners"; you can change the axis of motion by 90 degrees. These bevel gears can also be used with the differential frame to build a differential. This can be utilized to create more efficient "car style" drivetrains.

  • Create Linear Motion with the Rack Gears.
  • Transfer Motion 90 degrees with Bevel Gears.
  • Add a Differential to your Drivetrain.
  • Get a high-reduction with the Worm Gears.
  • Increase design possibilities for your robots.

Technical Specifications

Gear Kit (276-2169)

  • (4)12-tooth gears
  • (4)36-tooth gears
  • (4)60-tooth gears
  • (2)84-tooth gears

Metal 12-Tooth Pinion (276-2251)

  • (12)High Strength 12-tooth Gear (0.58 inch diameter)

High Strength 36 Tooth Gear Pack (276-5034)

  • (8)High Strength 36-tooth Gear
  • (16)Square Gear Insert
  • (16)Free Spinning Insert

High Strength 60 Tooth Gear Pack (276-5035)

  • (8)High Strength 60-tooth Gear
  • (16)Square Gear Insert
  • (16)Free Spinning Insert

High Strength 84 Tooth Gear Pack (276-3438)

  • (4)High Strength 84-tooth Gear
  • (8)Square Gear Insert
  • (8)Free Spinning Insert

High Strength Gear Kit (276-2250)

  • (4)High Strength 12-tooth Gear (0.58 inch diameter)
  • (4)High Strength 36-tooth Gear (1.58 inch diameter)
  • (4)High Strength 60-tooth Gear (2.58 inch diameter)
  • (16)High Strength Square Gear Insert
  • (16)Free Spinning Gear Insert

Rack Gear (276-1957)

  • (16)19-tooth Rack Gear

Rack Gear v2 (276-4872)

  • (16)19-tooth Rack Gear v2

Advanced Gear Kit (276-2184)

  • (8)19-tooth rack gear
  • (2)12-tooth pinion gear
  • (4)Worm gears
  • (4)Worm wheel
  • (1)Differential frame
  • (7)24-tooth bevel gear
  • (16)6-32 x 1/4 inch Button Head Screws

Gear Kit


Metal 12-Tooth Pinion


High Strength Gears

    Gear Kit (276-2169)
  • Compatible with all High Strength Gears and Metal 12 Tooth Pinions
  • Material Type - Acetal
  • Gear Type - Spur
  • Diametral Pitch - 24
  • Pressure Angle - 20 degrees
  • Face Width - 0.250" (6.35mm)

    Metal 12-Tooth Pinion (276-2251)
  • Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
  • Material Type - Steel
  • Gear Type - Spur
  • Diametral Pitch - 24
  • Pressure Angle - 20 degrees
  • Face Width - 0.500" (12.7mm)
  • 12-tooth gears 0.5" (12.7mm) Pitch Diameter
  • Weight - 0.002 lbs (0.907 grams)

    High Strength 36-Tooth Gear (276-5034)
  • Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
  • Material Type - Acetal
  • Pitch Diameter - 1.5" (38.1mm)
  • Weight - 0.012 lbs (5.44 grams)

    High Strength 60-Tooth Gear (276-5035)
  • Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
  • Material Type - Acetal
  • Pitch Diameter - 2.5" (63.5mm)
  • Weight - 0.03 lbs (15 grams)

    High Strength 84-Tooth Gear (276-3438)
  • Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
  • Material Type - Acetal
  • Pitch Diameter - 3.5" (88.9mm)
  • Weight - .08 lbs (35 grams)
    High Strength Gear Kit (276-2250)
  • Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
  • Material Type - 12-tooth Gear & Square Gear Insert: Powdered Metal. 36-tooth Gear, 60-tooth Gears & Free Spinning Insert: Acetal
  • Gear Type - Spur
  • Diametral Pitch - 24
  • Pressure Angle - 20 degrees
  • Face Width - 0.500" (12.7mm)

    Rack Gear (276-1957)
  • Compatible with all VEX Spur Gears
  • Material Type - Acetal
  • Length - 2.50" (63.5mm)
  • Weight - 0.020 lbs (9.07 grams)

    Rack Gear v2 (276-4782)
  • Compatible with all VEX Spur Gears
  • Material Type - Acetal

    Advanced Gear Kit (276-2184)
  • Compatible with Drive Shafts and all VEX Spur Gears. Note: Worm Gears only mate with the Worm wheel, and 24-tooth bevel gear only mate with themselves
  • Material Type - Acetal
  • Differential Frame Requires (3) 24-tooth bevel gear to make a functional differential
  • Rack Gears can be combined continuously to create a longer slide
  • Worm Gear length - 0.75" (19.1mm)
  • Rack Gear length - 2.50" (63.5mm)
All listed weights are actual weights of one item (no packaging)
