Winch Assembly (motor and mounting hardware not included)

 Winch Assembly (motor and mounting hardware not included)

Hover to View, Click to Zoom

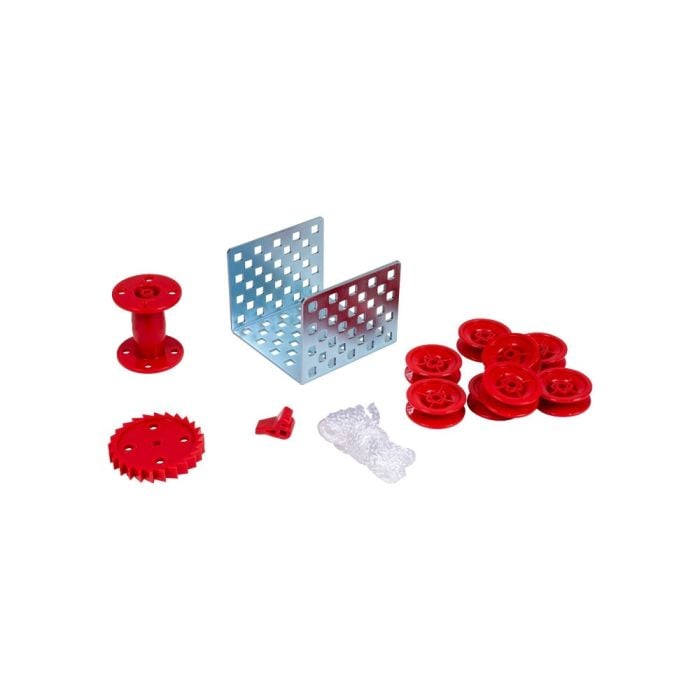

  • Winch and Pulley Kit Contents
  • Winch and Pulley Kit in packaging

Winch and Pulley Kit

P/N: 276-1546

Pull it up.

This kit provides the ability to implement a winch and pulley system and create block and tackle mechanisms to utilize mechanical advantage.

  • Lift, lower, hang, drag and more.
  • Configurable for many applications.
  • Ratchet and Pawl can be engaged to prevent back driving.
$14.99

In stock

Add Items to Cart
OR

You may also be interested in the following product(s)

Product Name P/N: Availability Price Qty
2-Wire Motor 269 276-2181
Discontinued
$12.99

2-Wire Motor 393 276-2177
In stock
$14.99
2-Wire Motor 393 w/ Motor Controller 29 276-1668
In stock
$24.98

Ratchet & Pawl Options

The image to the right shows how the pawl engages with the ratchet wheel. The VEX Ratchet and Pawl must be mounted in specific configuration to avoid slipping of the Ratchet Gear. The image to the right illustrates proper mounting of the VEX Pawl in relation to the VEX Ratchet Gear.

The pawl can be spring loaded with a rubber band so it is always in contact with the ratchet wheel, or alternately can be driven with a servo or motor so the user can control engagement.



Technical Specifications

Kit Contents
  • (1)Winch Bracket
  • (1)Winch Drum
  • (1)Ratchet Gear
  • (1)Winch Pawl
  • (8)VEX Pulley
  • (1)Rope Section 4-foot (122cm)
Compatibility Ratchet Gear mates with the Pawl only.
Winch Drum, Ratchet Gear, Pawl and Pulleys work with VEX Square Shafts 0.125" (3.2mm)
Downloads Inventor's Guide - Winch and Pulley Kit
CAD File (STEP)
Material Type
  • Winch Bracket: Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)
  • Green Parts: Delrin
  • Rope: Nylon, Solid Braided (Ultimate Tensile Strength: 100lbs)
Material Thickness
  • Winch Bracket: 0.046" (1.17mm)
Material Finish
  • Winch Bracket:Zinc Plated
Hole Size
  • Winch Bracket:0.182 square (VEX standard)
Size
  • Rope Diameter:0.125" (3.18mm)
Weight
  • Winch Bracket: 0.190 lbs
  • Winch Drum: 0.024 lbs
  • Ratchet Gear: 0.012 lbs
  • Winch Pawl: 0.002 lbs
  • VEX Pulley: 0.006 lbs
  • Rope Section: 0.010 lbs
