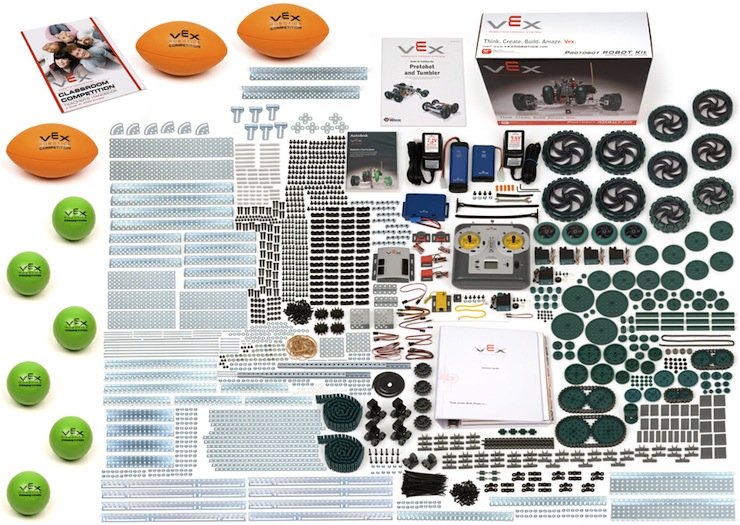

| Kit Contents |
Curriculum & Manuals
- (1)Classroom Competition Teacher's Handbook
- (1)Autodesk VEX Robotics Curriculum
- (1)Quick Start Guide, Protobot & Tumbler
- (1)Inventor's Guide
Logic
- (1)PIC Microcontroller V0.5
- (5)Jumpers
Control
- (1)75 MHz Transmitter and Receiver
- (5)Motor Controller 29
Sensors
- (2)Bumper Switch
- (2)Limit Switch
Motion
- (5)2-Wire Motor 269
- (1)3-Wire Servo
- (4)5" Wheel
- (4)4" Wheel
- (4)2.75" Wheel
- (2)4" Omni-Directional Wheel
- (4)Intake Roller
- (4)Double Bogie wheel assemblies
- (2)Single Bogie wheel assemblies
- (4)Tank tread drive/idler wheels
- (170)Tread Links
- (2)10-tooth sprockets
- (4)15-tooth sprockets
- (4)24-tooth sprockets
- (2)40-tooth sprockets
- (2)48-tooth sprockets
- (326)Chain Links (48")
- (1)Differential frame
- (2)12-tooth pinion gear
- (8)12-tooth gears
- (12)19-tooth rack gear
- (4)Worm wheel
- (7)24-tooth bevel gear
- (8)36-tooth gears
- (10)60-tooth gears
- (4)84-tooth gears
- (4)Worm gears
- (62)Bearing Flat
- (100)Bearing Pop Rivet
- (12)Pillow Block
- (8)Lock Bar
- (53)Shaft Collar
- (6)12" Shaft
- (12)2" Shaft
- (14)3" Shaft
- (3)4" Shaft
- (11)11mm Shaft
Tank Tread Upgrade Kit
- (25)Tank Tread Traction Links
- (30)Conveyor-belt Base Links
- (10)Short Conveyor-belt Inserts
- (10)Medium Conveyor-belt Inserts
- (10)Tall Conveyor-belt Inserts
Power
- (1)7.2V Robot Battery NiMH 2000mAh
- (1)Smart Charger
- (1)Power Cord - Type A (North America)
- (1)VEXnet Backup Battery Holder
- (2)Cable, VEX "Y"
- (2)Cable, 3-Wire Extension, 6"
- (3)Cable, 3-Wire Extension, 12"
- (1)Cable, 3-Wire Extension, 24"
- (1)Cable, 3-Wire Extension, 36"
Structure
- (4)Chassis Bumper (15-hole)
- (2)Chassis Bumper (25-hole)
- (8)Chassis Rail (16-hole)
- (4)Chassis Rail (25-hole)
- (4)C-Channel, 1x2x1x15 hole
- (3)C-Channel, 1x2x1x25 hole
- (2)C-Channel, 1x5x1x25 hole
- (2)Linear Slides
- (2)Rack Gear Bracket
- (2)Segmented Angle, 25-hole
- (4)Slotted Angle, 30-hole
- (4)Slotted Angle, 30-hole, REVERSE
- (14)Bar, 25-hole
- (5)Plate, 5 x 15 hole
- (2)Plate, 5 x 25 hole
- (2)Plate, 5 x 5 hole
- (6)Angle Gussets
- (4)Pivot Gussets
- (6)Plus Gussets
- (2)Hinge
- (12)1" Standoffs
- (24)1/2" Standoffs
- (16)2" Standoffs
- (12)3" Standoffs
- (18)Screw, 6-32 x 1/2" Long
- (34)Screw, 6-32 x 1/4" Long
- (66)Screw, 8-32 x 1/2" Long
- (190)Screw, 8-32 x 1/4" Long
- (30)Screw, 8-32 x 3/4" Long
- (79)Screw, 8-32 x 3/8" Long
- (12)Screw, 8-32 x 1" for Bogie wheels
- (246)Nut, 8-32 Keps
- (42)Nut, 8-32 Nylock
- (41)Spacer (8mm)
- (51)Spacer (4.6mm)
- (20)Plastic Washer
- (60)Steel Washer
- (100)4" Zip Tie
- (1)10' Latex Tubing
- (20)Rubber Band
- (4) Rubber Link
High Strength Sprocket & Chain Kit
- (4)High Strength 6-tooth Sprocket
- (2)High Strength 12-tooth Sprocket
- (2)High Strength 18-tooth Sprocket
- (2)High Strength 24-tooth Sprocket
- (2)High Strength 30-tooth Sprocket
- (140)High Strength Chain Links
- (20)Chain Attachment Links
- (1)Inventor's Guide Insert
High Strength Gear Kit
- (4)High Strength 12-tooth Gear
- (4)High Strength 36-tooth Gear
- (4)High Strength 60-tooth Gear
- (16)High Strength Square Gear Insert
- (16)Free Spinning Gear Insert
- (1)Inventor's Guide Insert
Equipment
- (1)Tool, Allen Wrench Large (3/32")
- (1)Tool, Allen Wrench Small (5/64")
- (1)Tool, Nut Starter
- (1)Tool, VEX Open-Ended Wrench
|
