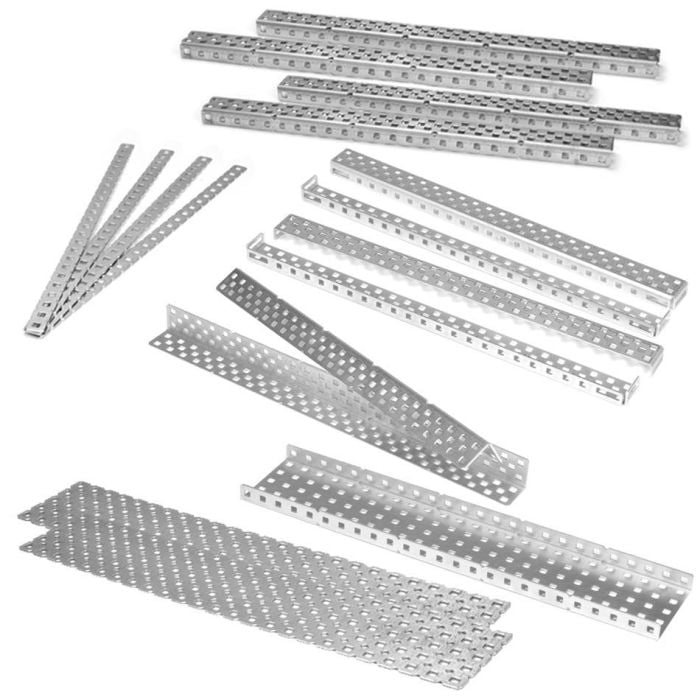

Aluminum Structure Kit

 Aluminum Structure Kit

Hover to View, Click to Zoom

  • Long Aluminum Structure Kit
  • Aluminum Chassis Kit 25x25
  • Aluminum C-Channel 1x5x1x25
  • Aluminum Plate 25x5

Aluminum Kits

Make your robot lighter!

Use VEX Aluminum pieces to lighten the total weight of a robot or mechanism while still keeping it strong.

  • Compatible with all VEX Motion and Structure components.
  • Available in bundle kits or in single part multi-packs
Items in stock ship out today if you complete your order in the next 4 hours and 13 minutes!
Product Name P/N: Availability Price Qty
Aluminum Plate 25x5 (6-pack) 276-2311
In stock
$24.99
Aluminum Bar 1x25 (16-pack) 276-2307
In stock
$29.99
Aluminum Angle 2x2x35 (6-pack) 276-2304
In stock
$34.99
Aluminum C-Channel 1x2x1x25 (6-pack) 276-2288
Out of stock
$29.99

Aluminum C-Channel 1x2x1x35 (6-pack) 276-2289
In stock
$34.99
Aluminum C-Channel 1x5x1x25 (6-pack) 276-2290
In stock
$39.99
Aluminum C-Channel 1x5x1x35 (6-pack) 276-2298
In stock
$44.99
Aluminum Chassis Kit 25x25 276-2319
In stock
$34.99
Aluminum Structure Kit 275-1097
In stock
$79.99
Long Aluminum Structure Kit 275-1410
In stock
$79.99

Technical Specifications

Kit Contents Aluminum Structure Kit Contents
  • (1)Aluminum Chassis 25x25x2
  • (4)Aluminum C-Channel 1x2x1x25
  • (1)Aluminum C-Channel 1x5x1x25
  • (2)Aluminum Plate 5x25
  • (4)Aluminum Bar 1x25

Long Aluminum Structure Kit Contents
  • (4)Aluminum C-Channel 1x2x1x35
  • (4)Aluminum C-Channel 1x5x1x35
  • (4)Aluminum Angles 2x2x35

Aluminum Chassis Kit 25x25 Contents
  • (2)Angles 2x2x25
  • (4)Rails 2x1x25
Downloads CAD Files (STEP)
Material Type Aluminum, 5052H32
Material Thickness 0.064in (1.6mm)
Material Finish Wire brushed & clear anodized
Hole Size 0.182 square (VEX standard)
Weight Aluminum Plate 5x25: 0.146 lbs
Aluminum Bar 1x25: 0.030 lbs
Aluminum Angle 2x2x35: 0.154 lbs
Aluminum Chassis: 25x25x2: 0.552 lbs
Aluminum C-Channel 1x2x1x25: 0.116 lbs
Aluminum C-Channel 1x5x1x25: 0.211 lbs
Aluminum C-Channel 1x2x1x35: 0.157 lbs
Aluminum C-Channel 1x5x1x35: 0.298 lbs
SKUs 275-1097, 275-1410, 276-2311, 276-2307, 276-2304, 276-2288, 276-2289, 276-2290, 276-2298, 276-2319
