Pneumatics Kit 1

 Pneumatics Kit 1

Hover to View, Click to Zoom

  • Pneumatics Kit 1A
  • Pneumatics Kit 2
  • Pneumatics Kit 2A
  • Solenoid Driver Cable
  • Pneumatic Tubing

Pneumatics

Pneumatic cylinders use compressed air (rather than motors) to produce motion that rests in one of 2 states: fully extended or fully retracted.

The cylinder in Pneumatics Kit 1 is single-acting -- it uses air to extend the cylinder rod, but uses a spring to return to its contracted state. As a result, the cylinder may expand and contract at different speeds.

In contrast, the cylinders in Pneumatics Kit 2 are double-acting and use compressed air to both extend and retract.

Single Acting Cylinders
Product Name P/N: Availability Price Qty
Pneumatics Kit 1 - Single Acting Cylinders 275-0274
In stock
$179.95
Pneumatics Kit 1A - Single Acting Cylinder Add-On 275-0275
In stock
$59.95
Double Acting Cylinders
Product Name P/N: Availability Price Qty
Pneumatics Kit 2 - Double Acting Cylinders 275-0276
In stock
$229.95
Pneumatics Kit 2A - Double Acting Cylinder Add-On 275-0277
In stock
$89.95
Pneumatic Accessories
Product Name P/N: Availability Price Qty
Solenoid Driver Cable (2-pack) 275-1417
In stock
$29.99
Pneumatics Tubing (5') 275-0447
In stock
$4.95

Pneumatics

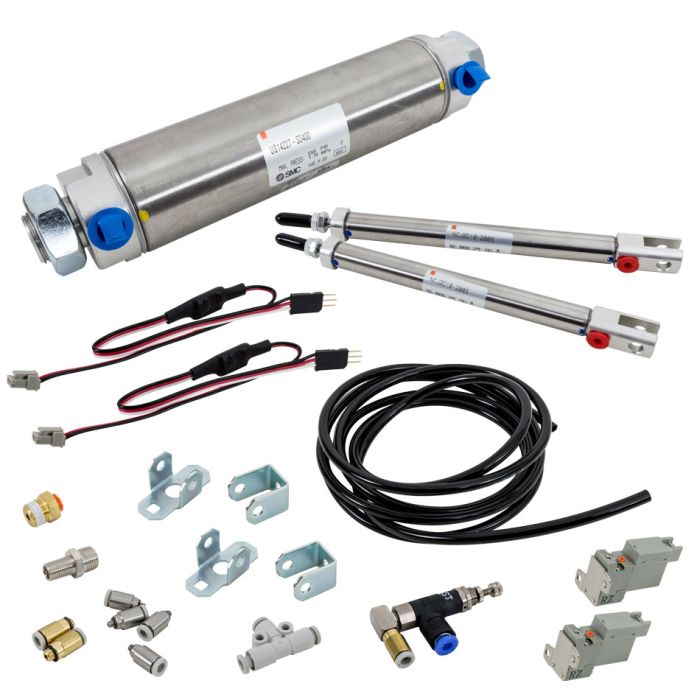

Pneumatics Kit 1 - Single Acting Cylinders

Kit 1 is a complete pneumatics add-on for VEX EDR. The cylinders are Single Acting, meaning they use air pressure to extend the piston, and an internal spring to allow the piston to retract.

  • Uses one VEX EDR Controller I/O port per air cylinder
  • Reservoir is filled using a standard tie pump fitting

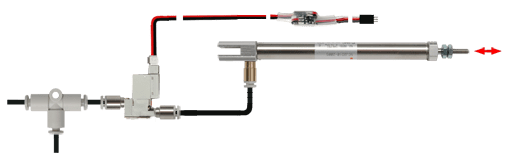

Pneumatics Kit 1A - Single Acting Cylinder Add-On

Kit 1A adds one Cylinder (Air Push, Spring Return) to Kit 1 or Kit 2

  • Cannot be used without Kit 1 or Kit 2

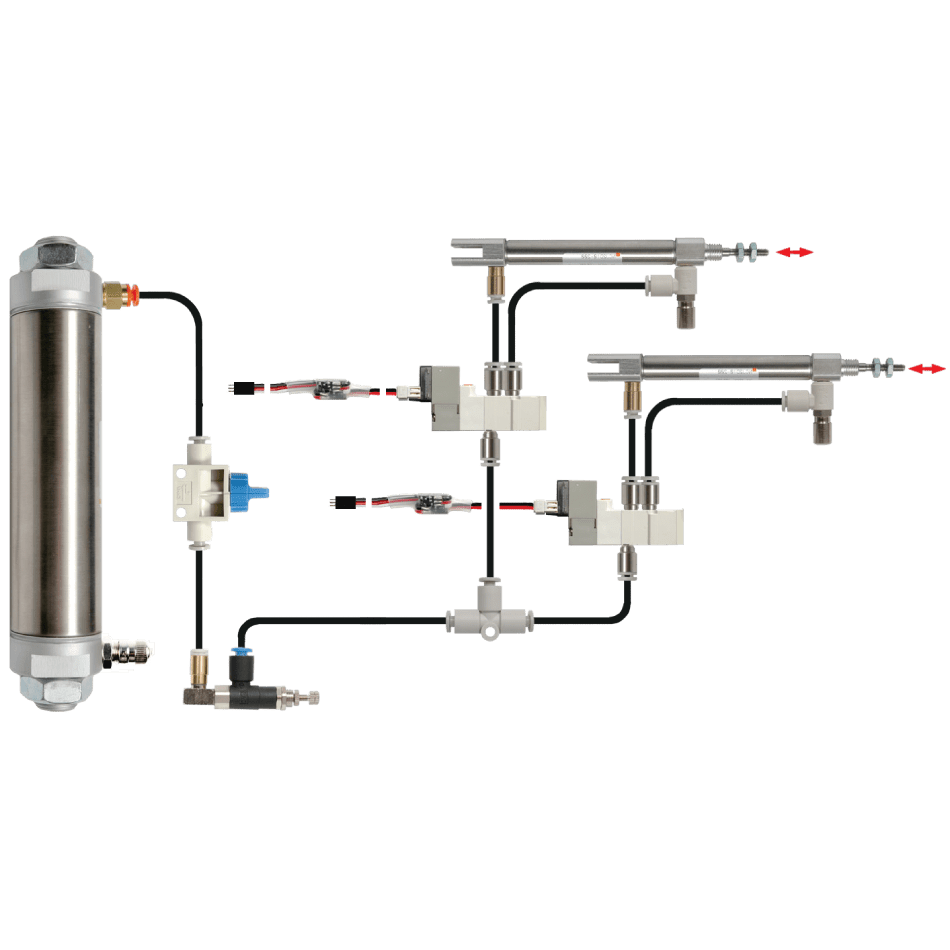

Pneumatics Kit 2 - Double Acting Cylinders

Kit 2 is a complete pneumatics add-on for VEX EDR. The cylinders are Double Acting, meaning they use air pressure to extend and retract the piston.

  • Uses one VEX EDR Controller I/O port per air cylinder
  • Reservoir is filled using a standard tie pump fitting

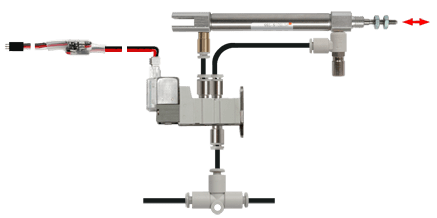

Pneumatics Kit 2A - Double Acting Cylinder Add-On

Kit 2A adds one Cylinder (Bi-directional) to Kit 1 or Kit 2

Cannot be used without Kit 1 or Kit 2

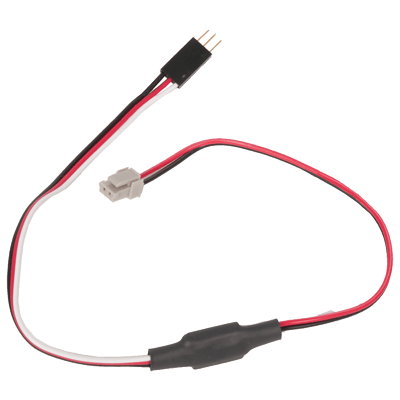

Solenoid Driver Cable (2-pack)

The Pneumatic Solenoid Driver Cable is this same driver cable that is included in the Pneumatic Kits. This cable takes the digital On\Off signal and controls the 5V power applied to a pneumatic solenoid.

  • 3 wire PWM Connector to connect to the VEX EDR Microcontroller
  • 2 wire Pneumatic Connector to connect to the Pneumatic Solenoid
  • Rated for about 3/4 Amp

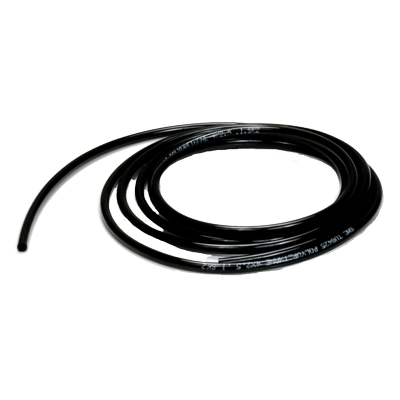

Pneumatics Tubing (5')

5 ft. of Polyurethane Tubing for use with VEX EDR Pneumatics. (Black, 5/32" OD)

  • 5 ft. of Polyurethane Tubing
  • Compatible with VEX EDR Pneumatics

Technical Specifications

Pneumatics Kit 1 - Single Acting Cylinders (275-0274)

  • (2)Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
  • (1)Tire Pump Fitting - Shraeder Valve With 4mm Tube Fittings - 8090410075
  • (1)Reservoir - Reservoir, 1-1/2" X 4", w 1/8"NPT & M5 port - US14227-S0400
  • (1)Pressure Regulator - Mini Regulator w/ 4mm Fittings - A-474-0000005
  • (1)"T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
  • (2)Cylinder - Single Acting Spring Return Cylinder 10mm Bore - NCJ2D10-200S
  • (2)Solenoid, On/Off - 3/2 Solenoid Valve, 5VDC - SY113-SMO-PM3-F
  • (4)Fitting for Valves - 4mm Tubing x M3 Thread - KJS04-M3 or KJL04-M3 or KQ2S04-M3G
  • (1)Fitting for Reservoir - 1/8 X 4mm Male Connector To Reservoir - KQ2H03-34S or "-34AS"
  • (2)Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
  • (1)Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696
  • (2)Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT
  • (2)Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT

Pneumatics Kit 1A - Single Acting Cylinder Add-On (275-0275)

  • (1)Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
  • (1)"T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
  • (1)Cylinder - Single Acting Spring Return Cylinder 10mm Bore - NCJ2D10-200S
  • (1)Solenoid, On/Off - 3/2 Solenoid Valve, 5VDC - SY113-SMO-PM3-F
  • (2)Fitting for Valves - Fitting 4mm Tubing x M3 Thread - KJS04-M3 or KQ2S04-M3G
  • (1)Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
  • (1)Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT
  • (1)Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT
  • (1)Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696

Pneumatics Kit 2 - Double Acting Cylinders (275-0276)

  • (2)Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
  • (1)Tire Pump Fitting - Shraeder Valve With 4mm Tube Fittings - 8090410075
  • (1)Reservoir - Reservoir, 1-1/2" X 4", w 1/8"NPT & M5 port - US14227-S0400
  • (1)On/Off Switch - Finger Valve - VHK3-04F-04F
  • (1)Pressure Regulator - Mini Regulator w/ 4mm Fittings - A-474-0000005
  • (1)"T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
  • (2)Cylinder, Bi-directional - Dbl Acting Cylinder 10mm Bore - NCJ2D10-200
  • (2)Solenoid, Fwd, Reverse - 5/2 Single Solenoid Valve, 5VDC - SYJ3120-SMO-M3-F
  • (2)Flow Meter - M5 elbow meter out flow control 4mm tubing - AS1201F-M5-04T
  • (6)Fitting for Valves - Fitting 4mm Tubing x M3 Thread - KJS04-M3 or "-M3G"
  • (1)Fitting for Reservoir - 1/8 X 4mm Male Connector To Reservoir - KQ2H03-34S or "-34AS"
  • (2)Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
  • (1)Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696
  • (2)Cylinder Mount - Mount for Cylinder - CYLINDER-MOUNT
  • (2)Cylinder Nut - Nut for the Cylinder Mount - CYLINDER-NUT
  • (2)Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT

Pneumatics Kit 2A - Double Acting Cylinder Add-On (275-0277)

  • (1)Solenoid Driver - Cable w/Driver, Connects one VEX EDR I/O Port to one Solenoid
  • (1)"T" Fitting - "T" Fitting for Valves - KQ2T04-00 or "-00A"
  • (1)Cylinder, Bi-directional - Dbl Acting Cylinder 10mm Bore - NCJ2D10-200
  • (1)Flow Meter - M5 elbow meter out flow control 4mm tubing - AS1201F-M5-04T
  • (1)Solenoid, Fwd, Reverse - 5/2 Single Solenoid Valve, 5VDC - SYJ3120-SMO-M3-F
  • (3)Fitting for Valves - Fitting 4mm Tubing x M3 Thread - KJS04-M3 or KQ2S04-M3G
  • (1)Fitting for Cylinders - M5 Male Connector for Cylinders - KQ2S04-M5 or "-M5A"
  • (1)Tubing - 4mm X 1696mm Length Tubing - TUO425B-X81US1696
  • (1)Cylinder Nut - Nut for the Cylinder Mount - CYLINDER-NUT
  • (1)Cylinder Rod Pivot - Pivot for the Cylinder Rod - CYLINDER-ROD-PIVOT

Solenoid Driver Cable (275-1417)

  • (2)Solenoid Driver Cable

    Pneumatic Tubing (275-0447)

  • (5ft)Pneumatic Tubing
  • System
    Pressure:
    689 kN/m² (100 psi)


  • Cylinder
    Bore:
    10 mm (0.394 in.)


  • Cylinder
    Stroke:
    50 mm (1.987 in.)


  • Force: 54 N (12 lb force)


  • Strokes: 45 Strokes from 100 psi to 25 psi


  • Valve
    Control:
    Connects to one VEX EDR Controller I/O port.

  • Tank
    Volume:
    150 mL (9.153 in.)


  • Length
    Single:
    Compressed - 5.5 in. / Extended - 7.5 in.


  • Length
    Double:
    Compressed - 6.125 in. / Extended - 8.25 in.

  • Reservoir
    Weight:
    0.68 lbs.

  • PNEUMATICS-KIT1
  • PNEUMATIC-KIT1A
  • PNEUMATIC-KIT2
  • PNEUMATIC-KIT2A
  • PNEUMATICS-VEX-TUBING
