Single Speed, Double Reduction Gearbox

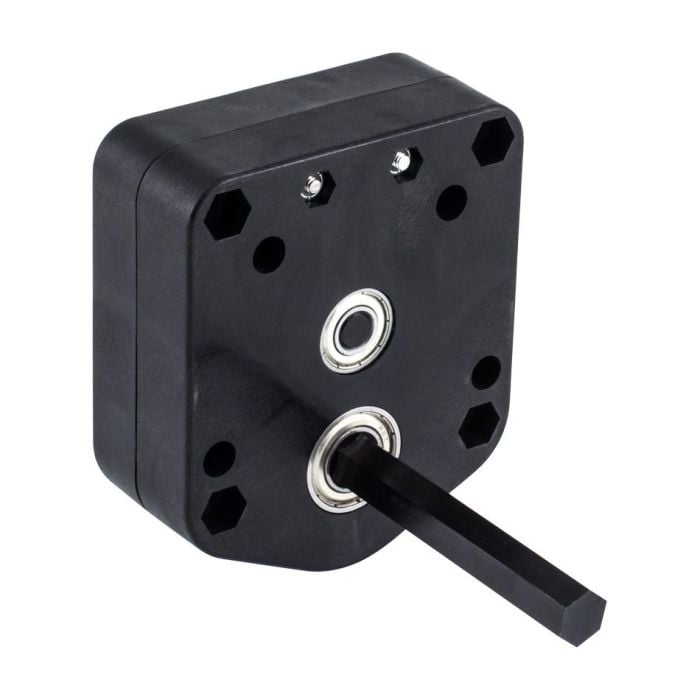

The same old two stage gearboxes teams have come to know and love. This is the latest and greatest update to the basic layout John V-Neun & Paul Copioli created for the original "Kit Transmission" included in the FRC kit of parts in 2005. After years of iteration, this gearbox has several subtle features which add to its superior performance.

Plastic Housings, Aluminum Shafts and Aluminum Gears provide for a light weight package. The specific transmission layout and ratio selections allow for an extremely small form factor, without a lot of complexity!

Weight: 1.26 lbs
Designed for use with 2 CIM Motors
Use the Optional Replacement Second Stage Gears to change ratios
AGMA 11 quality gears with teflon infused ceramic coating
Housing is completely enclosed - keeps metal chips out, grease in
Designed to work with Grayhill 63R series encoder (coupler required)
Can be adapted for any encoder with a 1/4" male shaft
Assembly Required, see instructions below
Encoders and Motors not included

Add to Wishlist

In Stock

Starting at: CDN$ 0.00

Price as configured: CDN$ 0.00

Single Speed, Double Reduction Standard Option

x Single Speed, Double Reduction Standard Option (40/12 - 40/14) (217-2454) +CDN$ 77.99

Optional Second Stage Gearsets

x 34t Gear with 1/2" Hex Bore (217-2706) +CDN$ 11.99
x 20t Gear with 3/8" Hex Bore (217-2701) +CDN$ 9.99
x 30t Gear with 1/2" Hex Bore (217-2705) +CDN$ 11.99
x 24t Gear with 3/8" Hex Bore (217-2703) +CDN$ 9.99

Motor Options

x CIM Motor (217-2000) +CDN$ 36.99

Price as configured: CDN$ 0.00

Add Items to Cart Qty:

You may also be interested in the following product(s)

Product Name	P/N:	Availability	Price	Qty
VEXpro Single Speed Housing Kit	217-2797	In Stock	CDN$ 6.99

Single Speed, Double Reduction Gearbox Ratios

These gear ratio options were specifically chosen to give designers variability within a few key speed ranges; helping them get their gearing exactly where they want it to be:

Initial Stage: 40:12
Second Stage Option 1: 40:14
Overall Reduction (w/ Option 1): 9.52:1

Second Stage Option 2: 34:20
Overall Reduction (w/ Option 2): 5.67:1

Second Stage Option 3: 30:24
Overall Reduction (w/ Option 3): 4.17:1

Standard Option:

(1) Single Speed, Double Reduction Housing Kit
(1) Gearbox Mounting Bracket
(1) 1/2" Hex Output Shaft
(2) 12t CIM Motor Gear (Steel) w/ Mounting Hardware
(1) 40t Gear with 3/8" Hex
(1) 14t Gear with 3/8" Hex
(1) 40t Gear with 1/2" Hex
(1) 1/2" ID flanged double shielded ball bearing
(2) 3/8" ID flanged double shielded ball bearing
(1) 1/2" Hex flanged double shielded ball bearing
(1) Grayhill Encoder Mount (coupler not included)
(1) Cluster Shaft
(4) Screw, #08-32 x 0.375" Socket head cap clear zinc
(2) Screw, #08-32 x 1.250" Socket head cap clear zinc
(2) Nut, #08-32 Nylock
(4) Screw, 1/4-20 x 1.375" Socket head cap clear zinc
(4) Nut, 1/4-20 Nylock
(2) 1.5" long standoff
(2) E-50 Retaining Ring

Optional Second Stage Gearset 34/20:

(1) 20t Gear w/ 3/8" Hex
(1) 34t Gear w/ 1/2" Hex

Optional Second Stage Gearset 30/24:

(1) 24t Gear w/ 3/8" Hex
(1) 30t Gear w/ 1/2" Hex

Output: 1/2" HEX

Material Type:

Housing - Glass-filled Nylon
Gears - 7075 T6 Aluminum
CIM Input Gear - 4140 Steel
Shafts - 7075 T6 Aluminum

Gear Material Finish: Teflon infused ceramic coating

Weight: 1.26 lbs

VEXpro Gears Require Lubrication. We recommend white lithium grease.
