VersaPlanetary Gearbox

The VersaPlanetary base options have been updated for the 2017 season. Information on the updates can be found near the bottom of this page.

Modular planetary gearbox system designed specifically for use by FRC teams. The easiest way to put power where you need it in your design.

  • Adapts a variety of FRC motors (BAG, MiniCIM, RS-550, RS-775, AM-9015, and CIM)
  • 4 output shaft options make integration easy
  • Six different planetary stages provide dozens of gearing options from 3:1 to 100:1

VersaPlanetary Gearboxes ship disassembled. Please grease before assembly.

In Stock

Starting at: $0.00

Price as configured: $0.00

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

Price as configured: $0.00

Add Items to Cart

You may also be interested in the following product(s)

Product Name P/N: Availability Price Qty
VersaPlanetary 1/2" Hex Output Shaft Kit 217-2897
In Stock
$7.99
VersaPlanetary 3/8" Hex Output Shaft Kit 217-2894
In Stock
$4.99
VersaPlanetary 1/2" with 1/8" Keyway Output Shaft Kit 217-2895
In Stock
$4.99
VersaPlanetary CIM Motor Output Shaft Kit 217-2893
In Stock
$4.99
VersaPlanetary Motor Mounting Hardware Kit 217-4649
In Stock
$5.99
VersaPlanetary Motor Mounting Plates with Pilot 217-3564
In Stock
$5.99
VersaPlanetary Dual Motor Input 217-3141
In Stock
$14.98
VersaPlanetary Dual Motor Input Housing Kit 217-3254
In Stock
$4.99
VersaPlanetary Dual Motor Input Hardware Kit 217-3272
In Stock
$9.99
2mm Key (5-pack) 217-2761
In Stock
$2.99

The VersaPlanetary is a battle-tested modular planetary gearbox system designed specifically for use in the FIRST ® Robotics Competition market. Designers choose one of four output shafts, configure a single-stage planetary using one of six different reductions, or build a multi-stage gearbox using any of the different ratio combinations.

All of the VersaPlanetary gearboxes include mounting plates & hardware for typical FIRST ® Robotics Competition motors (550, 775 Series, 9015 size motors, and the VEXpro BAG motor) -- these plates are custom designed for each motor to provide perfect piloting and high efficiency.

Motors can be interfaced with the gearbox using the innovative VersaCoupler, which utilizes a clamping collar design to attach a variety of motors without pressing on a motor pinion. Just find the correct motor mounting plate, mount your motor into place, tighten down one clamping screw, and you're good to go. The VersaCoupler does the rest; innovative industry technology brought to the FIRST ® Robotics Competition market.

The VersaPlanetary has a variety of options for mounting. Each gearbox has four 10-32 threaded holes on top and bottom of its housing for easy side mounting. In addition, there are also holes on the front which allow face-mounting. Conveniently, these holes are on a 2" bolt circle; this is the same as the CIM motor - anywhere you can mount a CIM-style motor, you can mount a VersaPlanetary.

  • Use with BAG, RS-550, 775 Series and AM-9015 motors
  • Interface with the CIM and Mini CIM motors with the VersaPlanetary CIM Adaptor
  • Dozens of gear ratios from 3:1 to 100:1
  • Dual Motor Input available
  • AGMA 11 quality steel gears

VersaPlanetary v1 vs VersaPlanetary v2

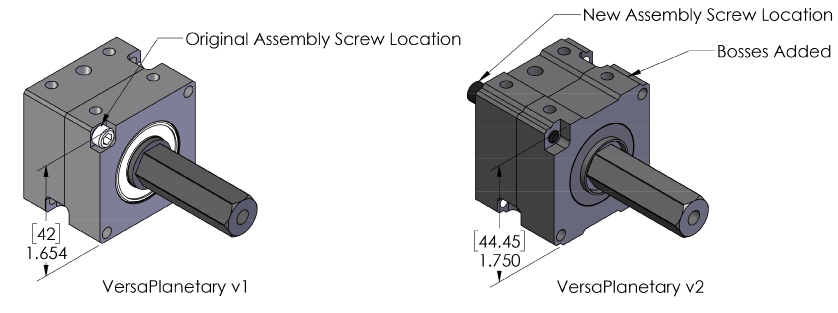

The VersaPlanetary v2 assembly is now held together with screws that install on the "back" (motor side) of the housing. This means that the gearbox can be disassembled to change gearsets without removing the gearbox output from the robot. Bosses have been added to the sides of the gearbox so when it is side-mounted you can "crank down" on the mounting screws without accidentally misaligning a ring-gear stage. The v1 & v2 input and output blocks cannot be mixed and matched - A v2 input block must be used with a v2 output block. Ring gears and gear kits are compatible between v1 & v2

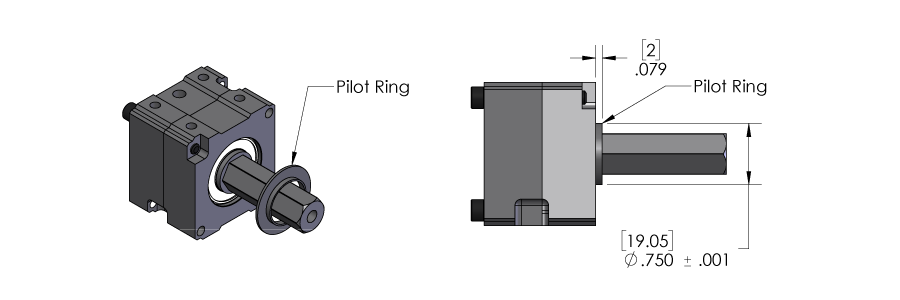

The base VersaPlanetary kits now include an optional pilot ring that will allow users to pilot the VersaPlanetary on a 0.75" hole, instead of relying on screw clearances to locate the gearbox. The plastic motor mounting plates now pilot on the input block.

Technical Specifications

    VersaPlanetary Base Options (ships partially assembled)
  • (1) VersaPlanetary Input Housing
  • (1) VersaPlanetary Output Housing with selected output shaft
  • (1) Output Shaft
  • (1) VersaPlanetary Input Coupler
  • (1) VersaPlanetary Motor Mounting Kit
  • (1) VersaPlanetary Motor Mounting Plates with Pilot
  • (1) Wave Washer .839 ID X 1.08 OD X .012 thick
  • (1) Retaining Ring, Metric MSH-15
  • (2) Ball Bearing, Double Shielded 15x28x7
  • (2) #8-32 x 1.25" Socket Head Cap Screw
  • (2) 2mm key for use with CIM & Mini CIM motors
  • (2) Nylock Nuts for use with the CIM adaptor
  • (2) 2.25" screws to build 2 stage gearboxes

  • VersaPlanetary Gear Kits
  • (1) Selected VersaPlanetary Gear Ratio Kit

  • VersaPlanetary Ring Gear Kit
  • (1) Ring Gear Add-On Slice
  • (2) #8-32 x 1.75" Socket Head Cap Screw

  • VersaPlanetary Dual Motor Input
  • (1) Dual Motor Input Housing Kit
  • (1) Dual Motor Input Hardware Kit
    Material Type:
  • Gears - Rockwell C 55-62 Case Hardened Steel
  • Gearbox Housing - 6061-T6 Aluminum
  • Shafts - 7075-T6 Aluminum

  • Material Finish:
  • Gears - Rockwell C 55-62 Case Hardening
  • Gearbox Housing - Black Type II Anodizing
  • Shafts - Black Type III, Hard Coat Anodized

Specification: VEXpro Gears Require Lubrication. We recommend white lithium grease.

Weight:
  • Base VersaPlanetary Kit (with Output Shaft) - 0.36 lb
  • Gear Kit - 0.13 lb each
  • Ring Gear Kit - 0.07 lb each

  • The theoretical weight for your VersaPlanetary can be calculated as follows:
    Base Kit + (Number of Stages × Weight of a Stage)

      Example VersaPlanetary Weights:
    • Single Stage: 0.36 lb + 0.2lb = 0.56 lb
    • Two Stage: 0.36 lb + (2 × 0.2 lb) = 0.76 lb
