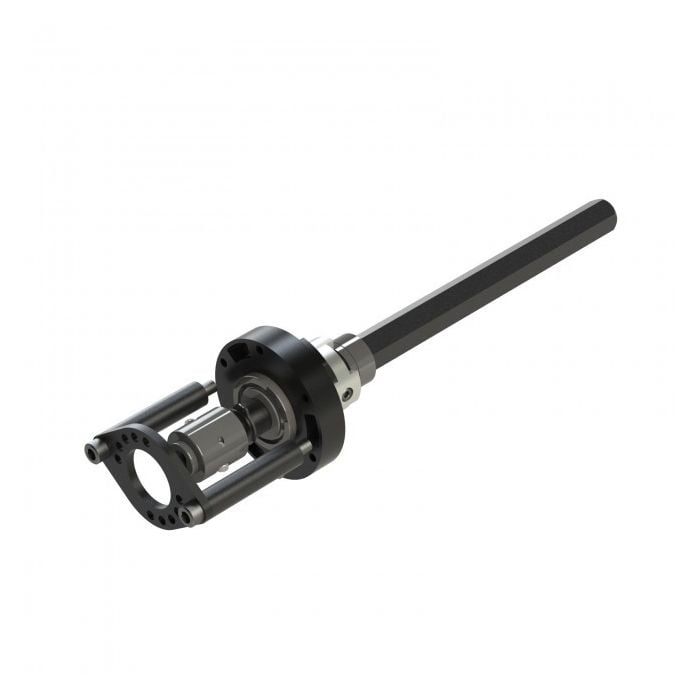

WCP DS - PTO Add-On Kit

217-3636

We know that more and more teams are trying to harness their drivetrain motors for other mechanisms, so we want to make it easy for teams to integrate a PTO ("power take-off") design into their robot. By using the PTO Add-On Kit's VersaDog assembly, teams can utilize any VEXpro gear, sprocket, or pulley to power their additional mechanisms off of the existing gearbox.

Note: Intended to be used with a WCP DS - 3 CIM West Coast Drive Version Base Kit (217-3433). See the WCP DS page for more information.

$74.99

Availability: In stock

OR
Kit Contents
  • (1) Dog Gear Kit (217-3628)
  • (1) WCP DS Pneumatic Hardware Kit (217-3496)
  • (1) WCP DS Standard Output Shaft (217-3625)
  • (1) WCP PTO VersaDog
  • (1) 0.500" ID x 1.125" OD x 0.313" WD (Radial Bearing) (217-3109)
  • (1) 1/2" Retaining Ring
  • (1) 1/8" Acetal Spacer (1/2" Hex) (217-2758)
  • (1) 1/4" Acetal Spacer (1/2" Hex) (217-3259)
  • (1) 1/16" Acetal Spacer (1/2" Hex) (217-3257)
  • (2) #10-32 x 5/16" BHCS
Docs & Downloads
Drawing
CAD Files
Click the button next to a file to view it in your browser.
