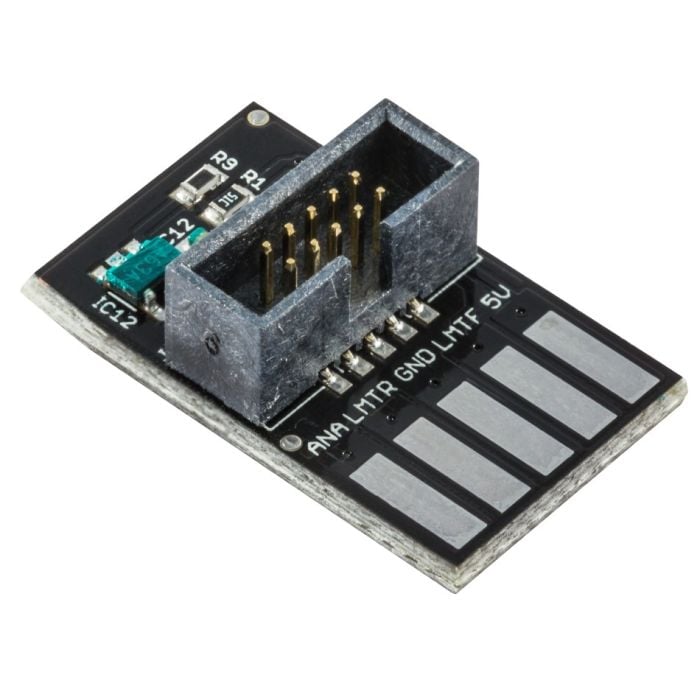

Talon SRX Analog Breakout Board

This breakout board makes wiring 5V analog sensors to the Talon SRX quick and easy. When connected to the Talon SRX through a ribbon cable, the breakout board provides solder pads to help connect your necessary sensors. This breakout board is designed specifically for use with the Talon SRX - it scales a native 5V analog signal to a Talon SRX compliant 3.3V, helping 5V magnetic shaft encoders to "just work" without additional circuitry.

See section 1.4.7 of the Talon SRX User's Guide for more details.
