VersaDrop

$129.99

In stock

SKU

217-4824

The VersaDrop is a configurable drop down module for use with 4" wheels. This product was designed to work with the VersaFrame System, allowing all teams, regardless of their resources the ability to create the popular Butterfly and Octocanum drivetrains. Teams have the ability to design their own actuated drivetrain solution with the VersaDrop.

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

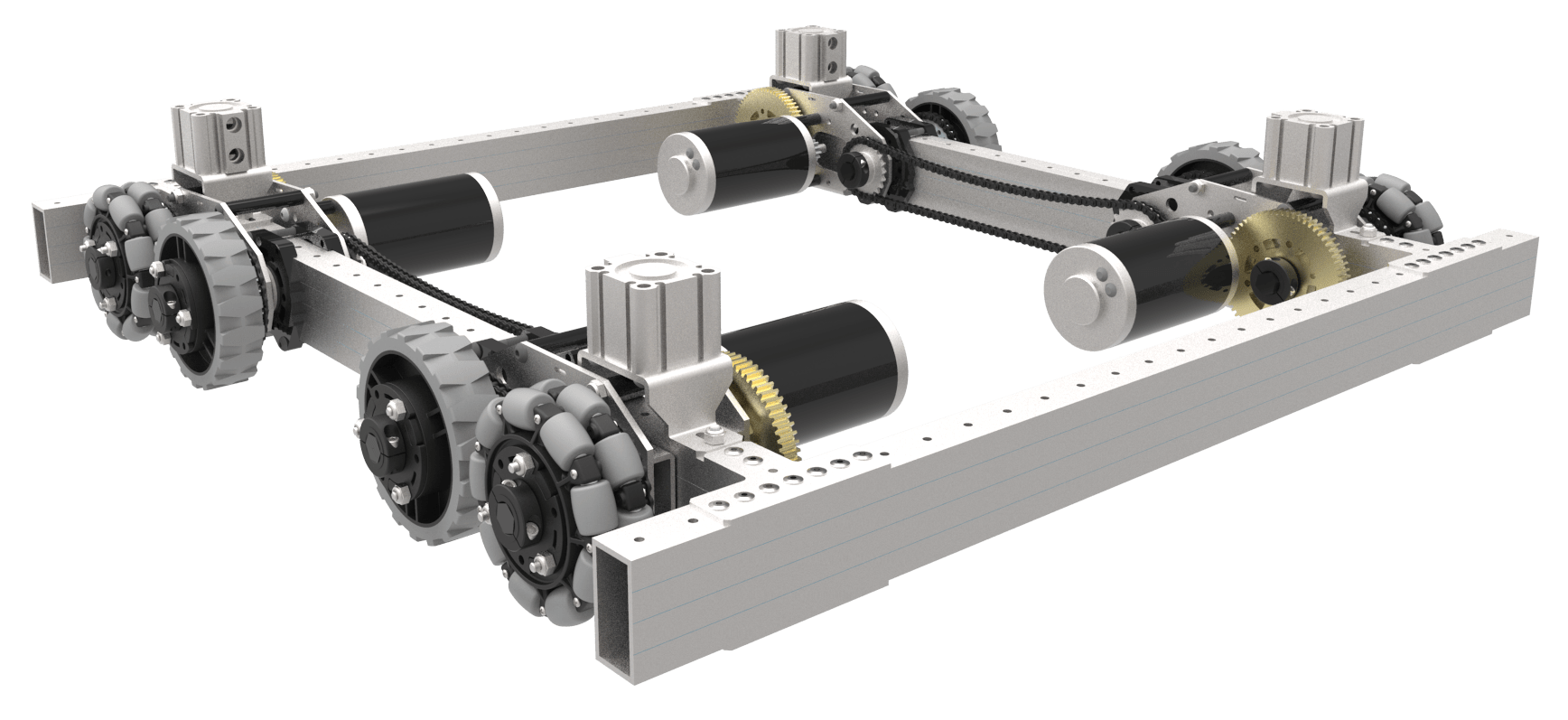

Articulated "Butterfly" Drive

Switch between traction and omni modes on the fly for ultimate maneuverability.

CAD STEP Model (ZIP, 7.41 MB)

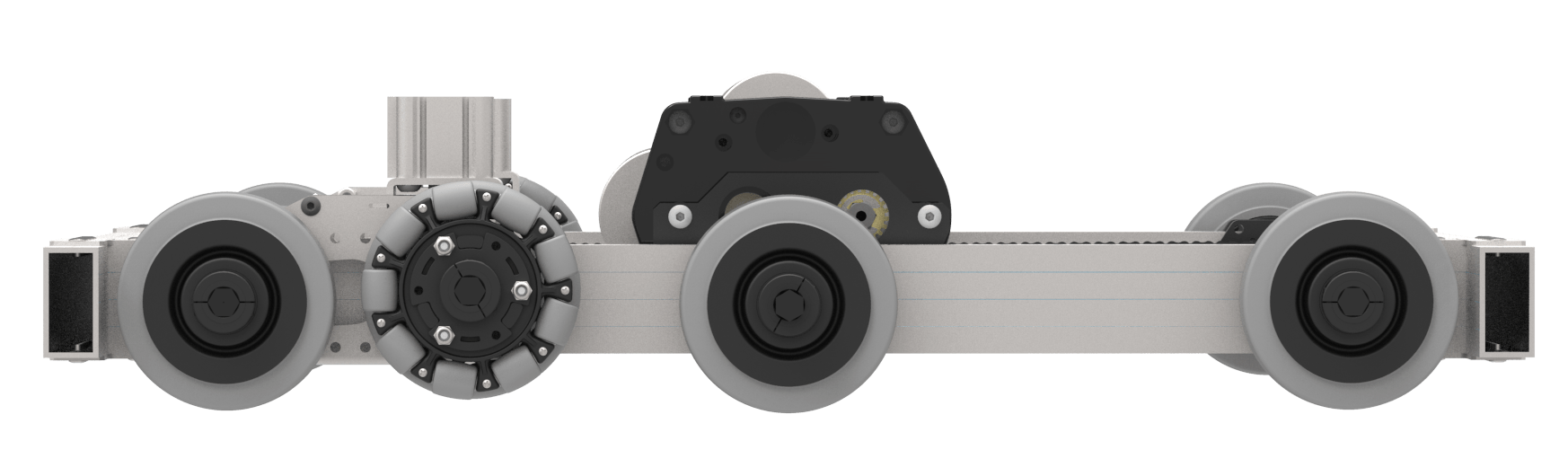

6-Wheel Drive with Drop Omni Wheels

Drop a set of rear Omni Wheels to pivot out of tight situations with ease.

CAD STEP Model (ZIP, 10.6 MB)

Articulated "Octocanum" Drive

The best of both worlds - traction mode to hold your ground, mecanums to slide sideways.

CAD STEP Model (ZIP, 10.7 MB)

(1) VersaDrop Pivot
(2) VersaDrop - Tube Brace
(1) VersaDrop Cylinder mount
(2) VersaDrop Module Spacers
(2) Motor Mount Spacers
(4) Button head screw - .250-20 x 0.375
(2) Button head screw - #10-32 x 2.500
(3) Button head screw - #8-32 x .500
(2) Socket head screw - #10-32 x 1.750
(3) #8-32 Nylock Nut
(2) #10-32 Nylock Nut
(1) 1/16" Acetal Spacer 1/2" Hex (10-pack)
(1) Pancake Pneumatic Cylinder, 32mm Bore, 15mm Travel

217-4824 (VersaDrop Module Assembly) (PDF)

5052 aluminum

1.23 lbs

Module Travel: Pivoting wheel goes from 0.437" down to 0.200" up

Lifting force: 75lbs per module at 60PSI

Note: VersaDrop Cylinders use 1/8" NPT fittings

CAD
VersaDrop (217-4824)
