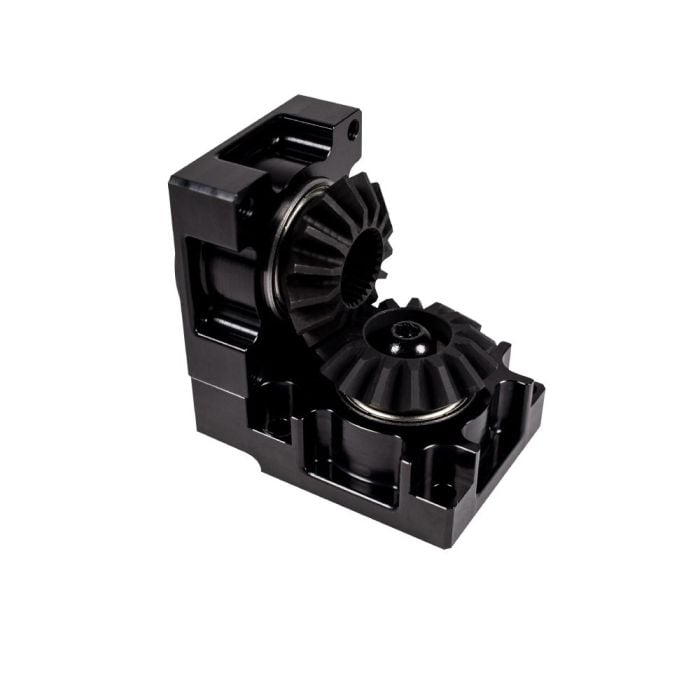

VersaPlanetary 90° Drive Kit
The VersaPlanetary 90° Drive Kit allows you to drive two perpendicular shafts from the same gearbox, making two-dimensional intakes and conveyors easier than ever. The 90° Drive can go anywhere inside the VersaPlanetary stack, giving you the ability to choose the physical placement of the motor.
In addition, the bevel gears in the VersaPlanetary 90° Drive are made from the same high quality steel the existing VEXpro bevel gears are made from. These are the same gears teams have been using in their swerve drives for years.
(1) VersaPlanetary 90 Degree Drive
(1) 0-2 Stage Assembly Screw Kit (217-5994)
VersaPlanetary Motor Mounting Guide (PDF)
VersaPlanetary Load Ratings Guide (PDF)
VersaPlanetary Ratio Identification Guide (PDF)
JVN's Mechanical Design Calculator (.XLSX)
90 Degree and 180 Degree CoAxial
VersaPlanetary 90 Deg. Drive Kit (217-6293)
VP Input to Ring Gear to 90 Degree to Ring Gear to VP Output
90 Degree and 180 Degree
VP Input to 90 Degree to 2X Ring Gears to VP Output
(2) 90 Degrees with Ring Gear
VP Input to 2X Ring Gears to 90 Degree to VP Output
