Dual Control Starter Kit
Build a dual control starter robot!

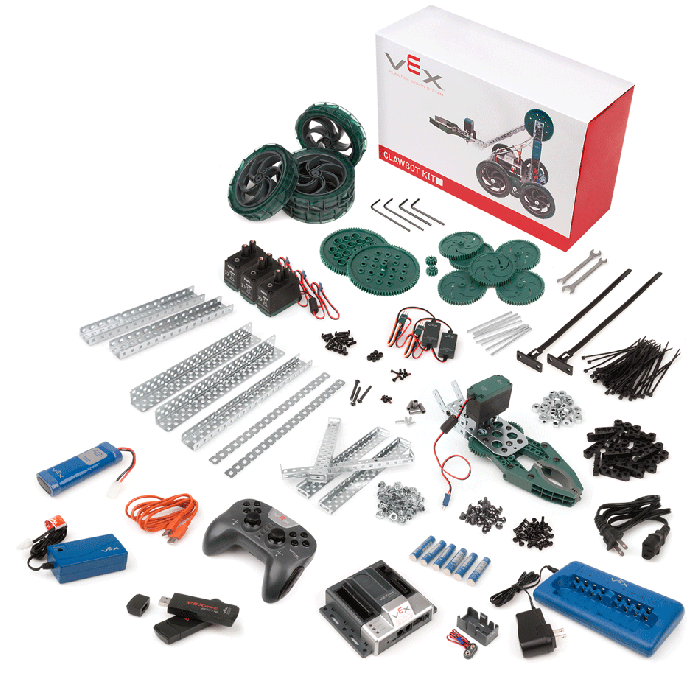

The Dual Control Starter Kit comes with everything needed to build a robot which can be controlled by a human operator or programmed to run autonomously.
- Clawbot Robot Kit (4 motors included)
- VEX ARM® Cortex®-based Microcontroller
- VEXnet Joystick & VEXnet Key 2.0
- Robot Battery NiMH 3000mAh and Charger
Note: This kit has been discontinued and replaced with the Cortex Classroom Starter Kit.
| CAD File | CAD Assembly (STEP) |
|---|
Motion
(3) 2-Wire Motor 393
(21) Shaft Collar
(4) Shaft Coupler
(8) Shaft, 3" Long
(18) Bearing Flat
(2) Spur Gear, 12-tooth
(6) Spur Gear, 60-tooth
(2) Spur Gear, 84-tooth
(4) 4" Wheel
(1) Claw Kit Assembly (includes motor)
Structure
(2) Bar, 20-hole
(2) Chassis Bumper (20-hole)
(4) Chassis Rail (16-hole)
(2) C-Channel, 1x2x1x15 hole
(1) C-Channel, 1x2x1x20 hole
Electrical
(1) 7.2V Robot Battery NiMH 3000mAh
(1) Smart Charger & Power Cord
(1) AAA NiMH Rechargeable Battery (6-pack)
(1) 8-Bay AA/AAA Smart Battery Charger
(2) Motor Controller 29
(1) Battery Strap (2-pack)
Electronics
(1) VEX ARM® Cortex®-based Microcontroller
(1) USB A-A Tether Cable
Control
(1) VEXnet Joystick
(2) VEXnet Key 2.0
(1) VEXnet Backup Battery Holder
Hardware
(32) Screw, 8-32 x 1/4" Long
(14) Screw, 8-32 x 1/2" Long
(3) Screw, 8-32 x 1 1/2" Long
(6) Locking Screw, 6-32 x 1/4" Long
(6) Locking Screw, 6-32 x 1/2" Long
(42) Nut, 8-32 Keps
(6) Shaft Spacer, Thin (4.6mm)
(50) 4" Zip Ties
(32) Bearing Attachment Rivet
Equipment
(2) Tool, Hex Key (5/64")
(2) Tool, Hex Key (3/32")
(2) Tool, VEX Open-Ended Wrench
(1) Quick Start Guide, Clawbot
Quick Start Guide for VEX Clawbot
Assembly Dimensions (PDF)
Structure Piece Dimensions (PDF)
Claw Assembly Details (PDF)
The VEX ARM® Cortex®-based Microcontroller is pre-programmed with default firmware that allows for basic robot control via the VEXnet Joystick. Programming software is required for customization of robot control, autonomous programming, integration of sensors and more.
