CIM-ile
As low as
$0.00
Out of stock
Works with
products and accessories.
FRC
legal.
simile - [sim-uh-lee]
noun
1. a figure of speech in which two unlike things are explicitly compared, as in “she is like a rose.”
CIM-ile - [sim-uh-lee]
noun
1. a gearbox in which a smaller motor is used as an input, with the output emulating the RPM and mounting of a CIM motor, as in "the CIM-ile has made my 550 sized motor much like a CIM motor."

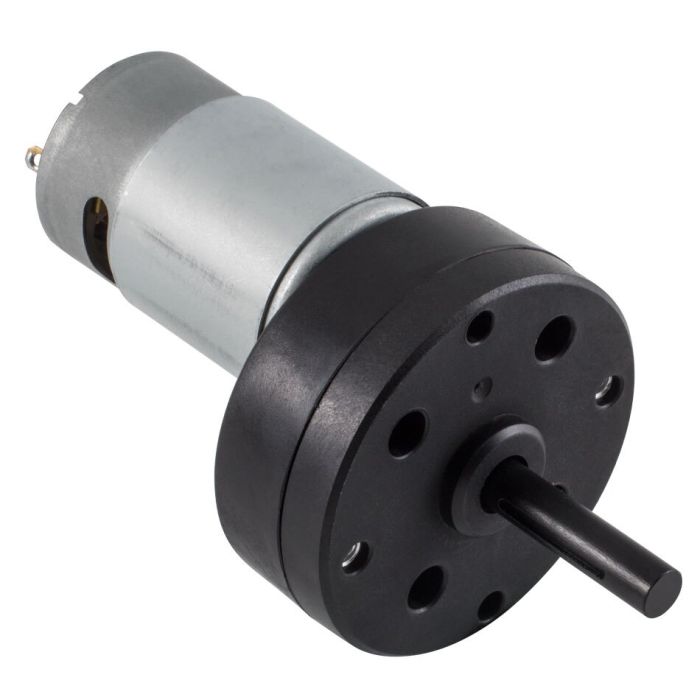

The CIM-ile gives teams the ability to emulate the RPM and mounting pattern of the popular CIM motor using one smaller motor in a compact, lightweight package. The precision VEXpro gears and glass-filled nylon housing create a system that is “similar” to a CIM and can be used with any gearbox or drive where a CIM would be used.
- Accepts RS-550 or 775 Series motors
- Single spur reduction to minimize size and weight
- Can be used anywhere a CIM would be used
- Ratio with RS-550: 9:29
- Ratio with 775 Series: 12:29
CIM-ile (217-3198)
- (1) CIM-ile Hardware Kit
- (1) CIM-ile Housing Kit
- (1) Radial Bearing - 3/8" ID
- (1) Radial Bearing - 3/16" ID
- (1) 8mm with 2mm keyway Output Shaft (29T 32dp Gear)
- (1) Press on 12T 32dp Pinion for 775 Series Motor
- (1) Press on 8T 32dp Pinion for RS-550 Motor
- (1) #10-32 X 0.500" Standoff
- (1) M3 X 0.5 X 8" Socket Head Cap Screw
- (1) M4 X 0.7 X 10" Socket Head Cap Screw
- (1) #10-32 X 0.375" Socket Head Cap Screw
- (1) #10-32 X 0.500" Socket Head Cap Screw
- (1) M2 X 10" Phillips Screw
- (1) Output Housing
- (1) Input Housing
- Output Shaft - 7075 T6 Aluminum
- Pinion Gears - 4140 Steel
- Gearbox Housing - Glass-filled Nylon
- 0.14 lbs (gearbox with no motors)
- (1) RS-550 motor or (1) 775 Series motor
- 8mm with 2mm keyway Output Shaft
