Colson Hubs (2 choices)

More Views

Colson Hubs (2 choices)

Colson Hubs from West Coast Products are the quickest and easiest way to integrate a Colson solid-core rubber wheel into a FIRST ® Robotics Competition drivetrain. Colson wheels are a common choice for competitive robotics, and the new hubs from West Coast Products make them simpler than ever to use.

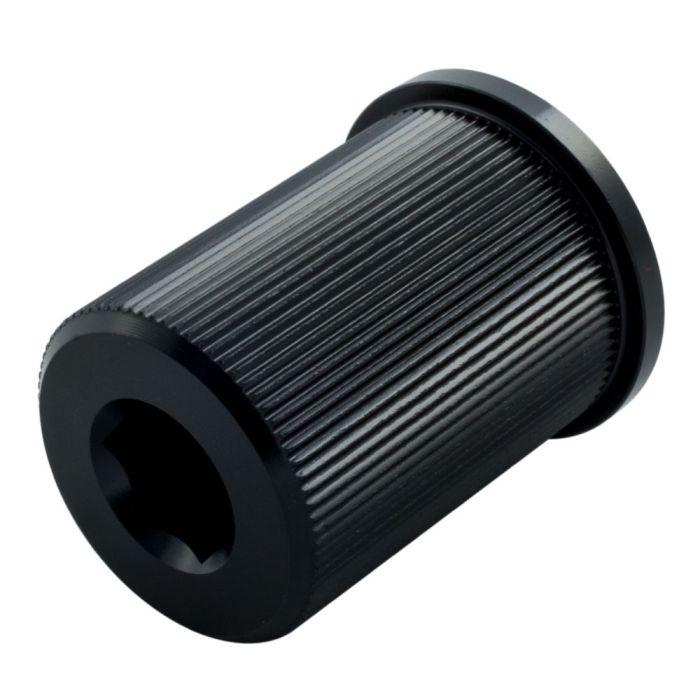

Colson Live hubs enable a direct drive system via a powered hex shaft (like in the VersaChassis). The hub is also slightly longer than previous options, allowing a better fit for both 1.5” and 2” wide wheels.

Colson Dead hubs allow the wheels to be powered by a sprocket, pulley, or gear. The hub now features an integrated VersaKey pattern, providing seamless interaction with all VEXpro sprockets, pulleys, and gears. Plus, the new hub also features a counter-bore, allowing teams to use either flanged or non-flanged bearings.

  • Colson Dead Hubs are VersaKey compatible
  • Machined from 6061-T6 Aluminum
  • Black anodizedanodised for superior performance

Availability: In stock

OR
Product Name Availability Price Qty
Colson Live Hub
217-3430

In Stock

$9.99
Colson Dead Hub
217-3429

In Stock

$15.99
Docs & Downloads
Material Type
  • 6061 T-6 Aluminum
Material Finish
  • Black Anodized
Drawing
Weight
  • 217-3430 (Colson Live Hub): 0.16 lb
  • 217-3429 (Colson Dead Hub): 0.17 lb
CAD Files
Click the button next to a file to view it in your browser.
