D Shaft Adapter Hubs

More Views

D Shaft Adapter Hubs

D Shaft Adapter Hubs bridge the gap between different building systems commonly used by the FTC community, allowing for easier accessibility to VEX EDR gears and wheels.

D Shaft Adapter Hubs are meant to go on either 6mm D Shafts or 4.75mm (3/16”) D-Shafts. They have two different bolt patterns. The first is the 4x #8-32 tapped holes on a 1” bolt circle, which is commonly found on VEX EDR gears, sprockets and wheels. The second is 4x #6-32 tapped holes on a 16mm bolt circle, which is commonly found on Tetrix, Actobotics and AndyMark products.

Common Application Examples could include:

  • A perfect standalone hub for any wheel, sprocket, or gear from Tetrix, AndyMark or Actobotics
  • Attaching a VEX EDR High Strength Gear to a Tetrix wheel when you want to use a lightweight gear
  • Attaching a VEX EDR High Strength Sprocket to a Tetrix wheel as a lightweight option for chain drives

Availability: In stock

OR
Product Name Availability Price Qty
4.75mm D Shaft Adapter Hub (1" Bolt Pattern) (2 Pack)
217-5825

In Stock

$9.99
6mm D Shaft Adapter Hub (1" Bolt Pattern) (2 Pack)
217-6004

In Stock

$9.99
Description

Details

Kit Contents

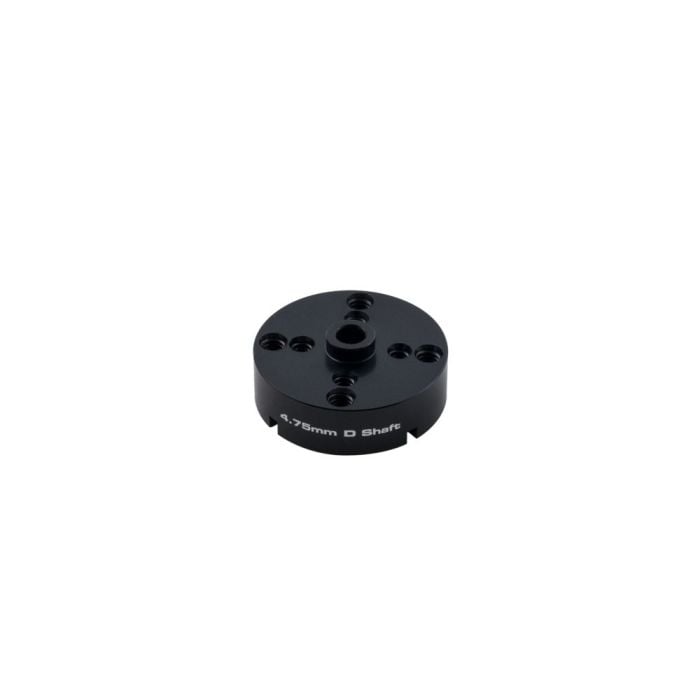

4.75mm D Shaft Adapter Hub (1" Bolt Pattern) (217-5825)
  • (2) 4.75mm D Shaft Adapters
  • (2) #10-32 x 0.375" Cup Point Set Screw w/ Thread Locker

6mm D Shaft Adapter Hub (1" Bolt Pattern) (217-6004)
  • (2) 6mm D Shaft Adapters
  • (2) #10-32 x 0.375" Cup Point Set Screw w/ Thread Locker
Application Examples
Drawing
Weight
  • 4.75mm D Shaft Adapter Hub (217-5825) - 0.04lbs
  • 6mm D Shaft Adapter Hub (217-6004) - 0.03lbs
CAD Files
