Tight Fit Falcon Accessories
In stock
Compatible with
products and accessories.
FRC
legal.

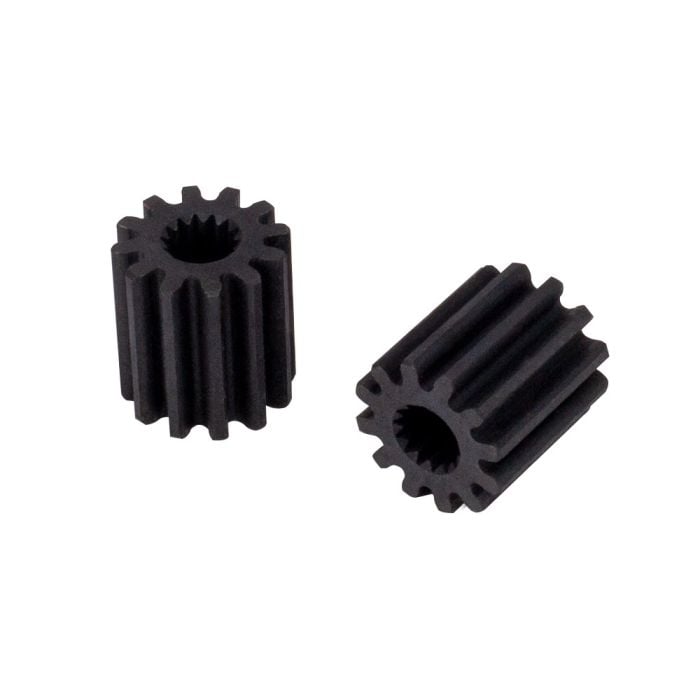

These Falcon 500 Motor Pinions and Pulleys were made slightly out of tolerance, resulting in a tight press fit on the Falcon Shaft.
They've been re-kitted into a 6 pack, and are now available at a discount.
* some product options are currently out of stock
Pinions
- (6) Selected Gear Type
- (18) #8-32 x 0.500" Star Drive Screw (276-4992)
- (18) #10-32 x 0.500" button head cap screw
- (18) #10-32 x 0.500" socket head cap screw
Pinions
- 4140 Steel
Pulleys
- 6061 T-6 Aluminum
- Pinions - Black Nitride
- Pulleys - Black Anodized
Falcon 500 Motor Pinions
- 217-6915: 8T Steel Spur Gear (20 DP, 10T Center Distance, Falcon Motor) - 0.02 lbs
- 217-6916: 9T Steel Spur Gear (20 DP, 10T Center Distance, Falcon Motor) - 0.03 lbs
- 217-6917: 10T Steel Spur Gear (20 DP, 12T Center Distance, Falcon Motor) - 0.04 lbs
- 217-6918: 11T Steel Spur Gear (20 DP, 12T Center Distance, Falcon Motor) - 0.04 lbs
- 217-6919: 12T Steel Spur Gear (20 DP, Falcon Motor) - 0.04 lbs
- 217-6921: 13T Steel Spur Gear (20 DP, 14T Center Distance, Falcon Motor) - 0.07 lbs
- 217-6922: 14T Steel Spur Gear (20 DP, Falcon Motor) - 0.07 lbs
VEXpro gears require lubrication. We recommend white lithium grease.
-
CAD
-
16T x 9mm Wide Double Flange Aluminum Pulley (GT2 3mm, Falcon Motor) (217-6924)
-
Falcon 500 Motor Pinions
-
12T Steel Spur Gear (20 DP, Falcon Motor) (217-6919)
-
11T Steel Spur Gear (20 DP, 12T Center Distance, Falcon Motor) (217-6918)
-
14T Steel Spur Gear (20 DP, Falcon Motor) (217-6922)
-
8T Steel Spur Gear (20 DP, 10T Center Distance, Falcon Motor) (217-6915)
-
9T Steel Spur Gear (20 DP, 10T Center Distance, Falcon Motor) (217-6916)
-
10T Steel Spur Gear (20 DP, 12T Center Distance, Falcon Motor) (217-6917)
-
13T Steel Spur Gear (20 DP, 14T Center Distance, Falcon Motor) (217-6921)
- Download All Files
Click the button next to a file to view it in your browser.
