High Strength Sprockets & Chain
High Strength Sprockets and Chain allow for higher loads to be transmitted across long distances. The Sprockets come in five different sizes, allowing for numerous ratios to best suit your needs. The High Strength and Sprockets are also capable of lifting up to 50 pounds, so make sure to use them on your heavy lifting mechanisms!
Note: We have begun transitioning the color of some Sprockets from Green to Red. The color received may not match the listed product photo.

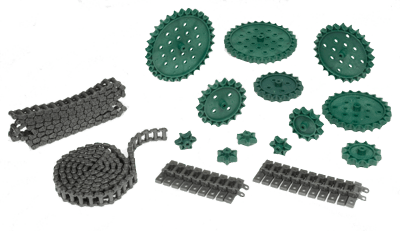

This High Strength Sprocket & Chain Kit provides larger size chain and sprockets designed for use with the VEX EDR Robotics Design System. These reinforced sprockets and chain can be used just like the VEX EDR Sprocket and Chain Kit but can withstand higher stresses and lift heavier loads.
VEX EDR High Strength Chain is the same pitch as VEX EDR Tank Tread. The components from this kit are compatible with all VEX EDR Tank Tread components. Also use included "Attachment Links" to attach structural components to your chain. Every link can act as a master link to make chains of any length. Use this kit for any application where regular chain just won't cut it!
- High Strength Design - up to 50 lbs
- 12 Sprockets in 5 Sizes
- 54" of Chain Links

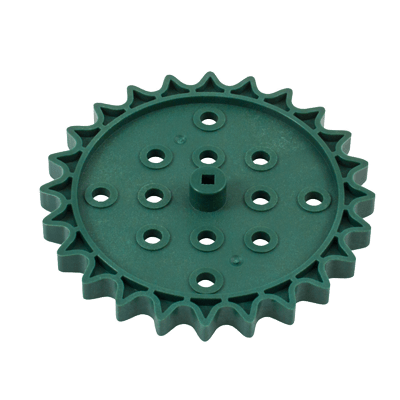

Reinforced High Strength Sprockets can transmit higher loads over long distances. Use this kit to withstand higher stresses and lift heavier loads. Useful for any application where regular chain just won't cut it.
- High Strength Design - lift up to 50 lbs
- (5) size options available individually
- Use with High Strength Chain or Tank Tread
This Additional High Strength Chain Kit provides additional high strength chain that works with the VEX EDR High Strength Sprocket & Chain Kit.
- (140) High Strength Chain Links
- (20) Attachment Links
- High Strength Design - up to 50 lbs
- 54" of Chain Links

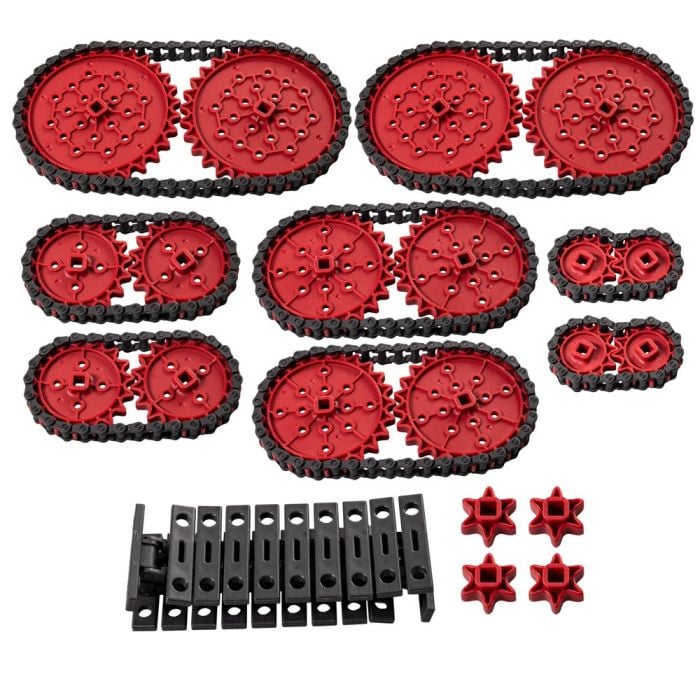

High Strength Sprocket & Chain Kit (276-2252)
- (4) 6T High Strength Sprocket (~0.97" OD)
- (2) 12T High Strength Sprocket (~1.69" OD)
- (2) 18T High Strength Sprocket (~2.43" OD)
- (2) 24T High Strength Sprocket (~3.16" OD)
- (2) 30T High Strength Sprocket (~3.90" OD)
- (140) High Strength Chain Links
- (20) Chain Attachment Links
High Strength Conveyor Chain (276-7141)
- (60) High Strength Conveyor Chain Links
High Strength Sprocket Packs
- (8) 6T High Strength Sprocket (276-3876)
- (4) 12T High Strength Sprocket (276-3877)
- (4) 18T High Strength Sprocket (276-3878)
- (4) 24T High Strength Sprocket (276-3879)
- (4) 30T High Strength Sprocket (276-3880)
Additional High Strength Chain (276-2172)
- (140) High Strength Chain Links
- (20) Chain Attachment Links
High Strength Chain Attachment Link Kit (276-7578)
- (60) High Strength Chain Attachment Links
- Acetal
Chain Width - Links are 0.57" Wide, Attachment Links are 1.5" Wide
Mounting Holes - 0.175" Diameter
- High Strength Chain - 0.032 lbs/ft (14.5 grams)
- Attachment Links - 0.094 lbs/ft (42.6 grams)
Note: 1 ft = 30 links
All listed weights are actual weights of one item (no packaging)
- Tensile Strength: Approximately 50 lbs
-
CAD
-
High Strength Chain Attachment Links (276-2252-002)
-
High Strength Chain Links (276-2252-001)
-
High Strength Conveyor Chain (276-7141)
-
High Strength Sprockets
-
18T High Strength Sprocket (276-3878)
-
18T High Strength Sprocket (HS Bore) (276-3878)
-
6T High Strength Sprocket (276-3876)
-
6T High Strength Sprocket (HS Bore) (276-3876)
-
12T High Strength Sprocket (276-3877)
-
12T High Strength Sprocket (HS Bore) (276-3877)
-
24T High Strength Sprocket (276-3879)
-
24T High Strength Sprocket (HS Bore) (276-3879)
-
30T High Strength Sprocket (276-3880)
-
30T High Strength Sprocket (HS Bore) (276-3880)
- Download All Files
