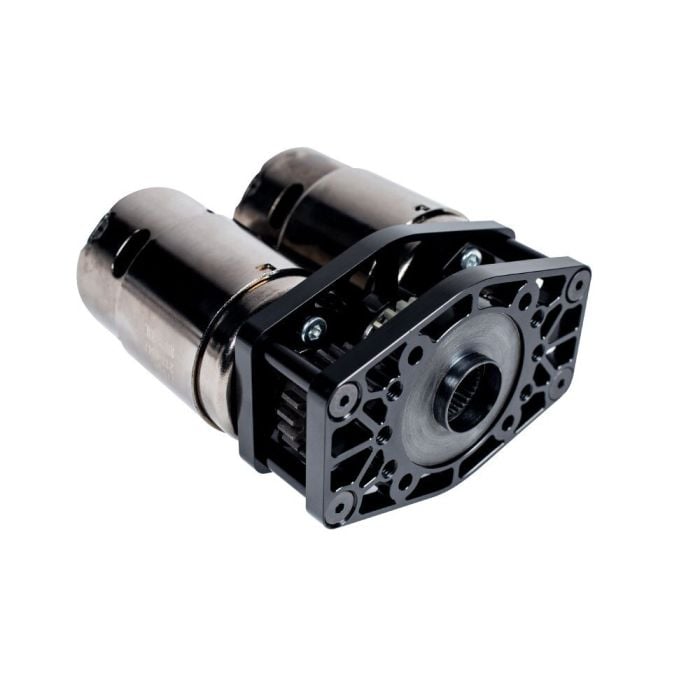

main product photo

Skip to the beginning of the images gallery

VersaDM Gearbox

As low as $0.00

In stock

Works with

products and accessories.

FRC legal.

The VersaDM can be used as a dual motor input for the VersaPlanetary and VersaPlanetary Lite. Unlike the old Dual Motor Input, the VersaDM Gearbox uses a ‘universal motor mounting’ design that allows one mounting pattern to mount RS-550, RS-775 and BAG motors.

The VersaDM Gearbox allows you to choose between 3 different gear ratios: 1:1, 3.75:1 and 5.33:1. The ability to pick a gear ratio AND be an input to the VersaPlanetary means that you can not only eliminate an entire stage from your VersaPlanetary, but also the input block. This means your VP Gearboxes will be smaller and lighter than ever before.

Step 1: Choose your gearbox housing.

Step 2: Choose your motor & gear ratio.

Needed Gears

Step 3 - Choose your output shaft. (Optional)

Qty

Total Price of Items Selected Above:

View Cart / Quote

VersaDM Gearbox Shareable Icon

Get shareable link

VersaDM Gearbox Hint Icon

Docs & Downloads

VersaDM Gearbox (Aluminum) (217-6417)

(1) VersaDM Gearbox Aluminum Input Housing
(1) VersaDM Gearbox Aluminum Output Housing
(1) VersaDM Geabox Output Shaft
(1) VersaDM Gearbox CIM Pilot Ring
(1) 17mm ID x 26mm OD x 5mm WD (Radial Bearing)
(1) 0.375" ID x 0.875" OD x 0.280" WD (Flanged Bearing)
(1) BAG Motor Shaft Coupling
(1) RS-550 Motor Coupling
(1) RS-775 Motor Coupling
(1) FP Motor Shaft Coupling
(2) M3 x 0.5 x 8 Socket Head Cap Screws
(2) M4 x 0.7 x 10 Socket Head Cap Screws
(2) BAG To RS-775 Motor Pilot Adapters
(2) RS-550 To RS-775 Motor Pilot Adapters
(2) #8-32 x 0.500" Socket Head Cap Screws
(2) #8-32 x 1.000" Socket Head Cap Screws
(2) #8-32 x 1.500" Socket Head Cap Screws
(2) #8-32 x 2.000" Socket Head Cap Screws
(4) #8-32 x 1.125" Focket Head Cap Screws
(5) VersaDM Gearbox Aluminum Spacers

VersaDM Gearbox CIM Output Shaft (217-6443)

(1) VersaDM Gearbox CIM Output Shaft
(2) #8-32 x 1.250" Socket Head Caps Screws

VersaDM Gearbox 3/8" Hex Output Shaft (217-6442)

(1) VersaDM Gearbox 3/8" Hex Output Shaft
(2) #8-32 x 1.250" Socket Head Caps Screws

VersaDM Gearbox 1/2" Hex Output Shaft (217-6441)

(1) VersaDM Gearbox 1/2" Hex Output Shaft
(2) #8-32 x 1.250" Socket Head Caps Screws

VersaDM Gearbox (Aluminum) - 6061-T6 Aluminum

217-6417: VersaDM Gearbox (Aluminum) - 0.34 lbs
217-6441: VersaDM Gearbox 1/2" Hex Output Shaft - 0.05 lbs
217-6442: VersaDM Gearbox 3/8" Hex Output Shaft - 0.03 lbs
217-6443: VersaDM Gearbox CIM Output Shaft - 0.02 lbs
