VersaFrame Gussets and Mounts (18 choices)

217-3556 (VersaFrame 135 Degree Gusset)

More Views

VersaFrame Gussets and Mounts (18 choices)

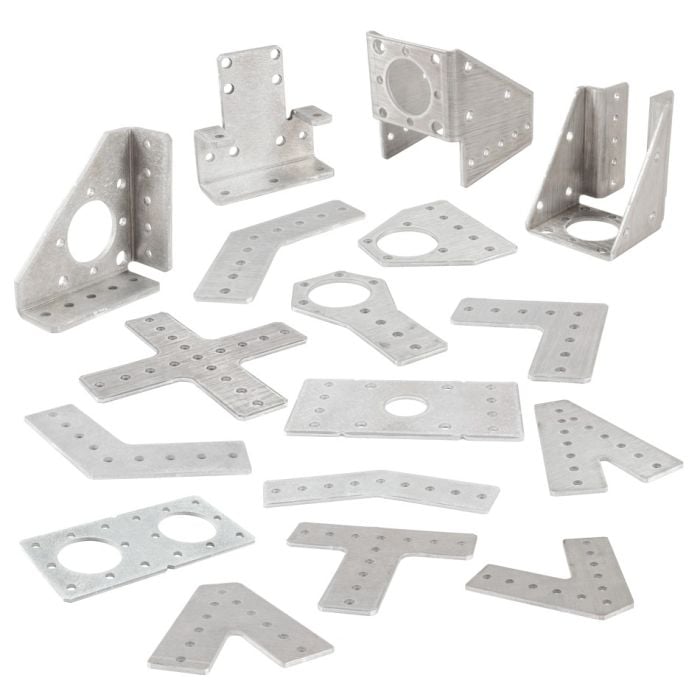

The VersaFrame is a construction system that allows teams to build an upper frame in whatever configuration they can imagine. Pre-drilled holes on a standard 1" pitch are designed to be used with #8 screws and 5/32" rivets, and can be easily drilled out for larger hardware. No need for precision fabrication capability - with just a saw and a drill, any team can build light-weight world-class frames.

VersaFrame gussets provide for connections in many different configurations. In addition to a variety of angles commonly used in mechanical design, custom bearing and motor mounting gussets allow for seamless integration into designs incorporating rollers or other motion elements.

Note: Standoffs are not included with gussets, and must be purchased separately.

Availability: In stock

OR
Product Name Availability Price Qty
VersaFrame Corner Gusset
217-4238

In Stock

$8.99
VersaFrame 1" Wide VersaPlanetary Parallel Mount
217-4178

In Stock

$10.99
VersaFrame 2" Wide VersaPlanetary Parallel Mount
217-4179

In Stock

$10.99
VersaFrame 30 Degree Gusset (2-pack)
217-3555

In Stock

$6.99
VersaFrame 45 Degree Gusset (2-pack)
217-3552

In Stock

$6.99
VersaFrame 60 Degree Gusset (2-pack)
217-3551

In Stock

$6.99
VersaFrame 90 Degree Gusset (2-pack)
217-3548

In Stock

$6.99
VersaFrame 120 Degree Gusset (2-pack)
217-4181

In Stock

$5.99
VersaFrame 135 Degree Gusset (2-pack)
217-3556

In Stock

$6.99
VersaFrame 150 Degree Gusset (2-pack)
217-4180

In Stock

$5.99
VersaFrame Plus Gusset  (2-pack)
217-3550

In Stock

$6.99
VersaFrame End Bearing Mount (2-pack)
217-3554

In Stock

$6.99
VersaFrame Face Bearing Mount (2-pack)
217-4183

In Stock

$5.99
VersaFrame Side Bearing Mount (2-pack)
217-3553

In Stock

$6.99
VersaFrame T Gusset (2-pack)
217-3547

In Stock

$6.99
VersaFrame VersaPlanetary Face Mount  (2-pack)
217-3627

Out of Stock

$5.99

VersaFrame VersaPlanetary Side Mount
217-4239

In Stock

$10.99
VersaChassis Gusset (8-pack)
217-3557

In Stock

$24.99
Add to Wishlist
Material Type
  • 5052 Aluminum
Material Thickness
  • 0.090"
Drawing
Weight
  • VersaFrame Corner Gusset (217-4238): 0.098 lb
  • VersaFrame 1" Wide VersaPlanetary Parallel Mount (217-4178): 0.12 lb
  • VersaFrame 2" Wide VersaPlanetary Parallel Mount (217-4179): 0.11 lb
  • VersaFrame 30 Degree Gusset (217-3555): 0.06 lb
  • VersaFrame 45 Degree Gusset (217-3552): 0.04 lb
  • VersaFrame 60 Degree Gusset (217-3551): 0.04 lb
  • VersaFrame 90 Degree Gusset (217-3548): 0.04 lb
  • VersaFrame 120 Degree Gusset (217-4181): 0.08 lb
  • VersaFrame 135 Degree Guset (217-3556): 0.04 lb
  • VersaFrame 150 Degree Gusset (217-4180): 0.08 lb
  • VersaFrame Plus Gusset (217-3550): 0.06 lb
  • VersaFrame End Bearing Gusset (217-3554): 0.03 lb
  • VersaFrame Bearing Mount (217-4183): 0.09 lb
  • VersaFrame Side Bearing Gusset (217-3553): 0.03 lb
  • VersaFrame T Gusset (217-3547): 0.05 lb
  • VersaFrame VersaPlanetary Face Mount (217-3627): 0.06 lb
  • VersaFrame VersaPlanetary Side Mount (217-4239): 0.09 lb
  • VersaChassis Gusset (217-3557): 0.04 lb
    • CAD Files
