VersaFrame Stock (10 Choices)

VersaFrame Stock (10 Choices)

VersaFrame Stock is a construction system that allows teams to build an upper frame in whatever configuration they can imagine. Pre-drilled holes on a standard 1" pitch are designed to be used with #8 screws and 5/32" rivets, and can be easily drilled out for larger hardware. No need for precision fabrication capability - with just a saw and a drill, any team can build light-weight world-class frames.

The VersaFrame Stock square tube is a custom thickness sized specifically for the FIRST ® Robotics Competition market. With 0.040", 0.050" and 0.10" walls, the tube is lightweight and more than strong enough for most FIRST ® Robotics Competition applications. C-channel and angle pieces help to provide even more strength where it's needed most.

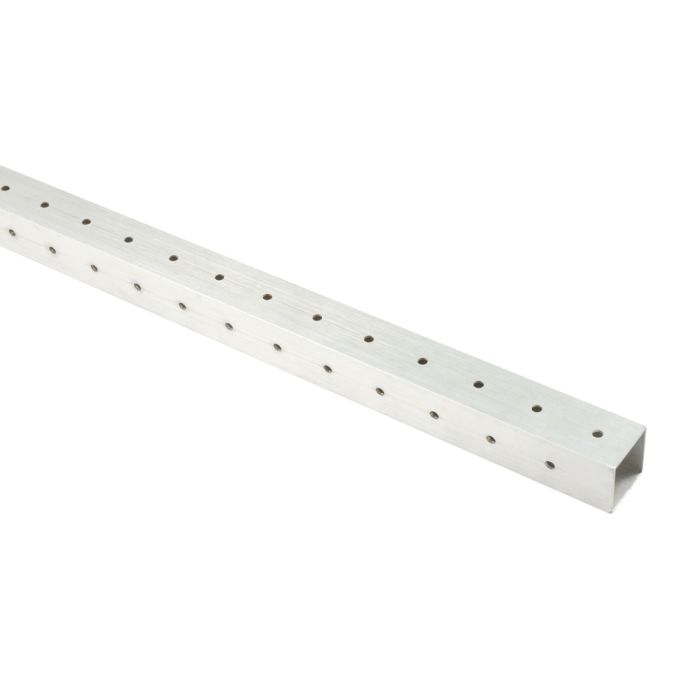

1" x 1" x 0.040" tubes are pre-drilled on all four faces. 1" x 1" x 0.100" tubes and 1" x 2" tubes are pre-drilled on the 1" faces with piloting notches on the sides without holes.

Note: Due to a manufacturing issue, some 1" x 1" x 0.040" Pre-Drilled VersaFrame Aluminum Tubes (217-3426) were received without their offset hole pattern. Users who wish to utilize this and receive one of these tubes will need to drill out holes manually. We apologize for the inconvenience.

Availability: In stock

OR

Aluminum VersaFrame Tube Stock

Product Name Availability Price Qty
1" x 1" x 0.040" Pre-Drilled VersaFrame Aluminum Tube Stock (59")
217-3426

In Stock

$19.99
1" x 1" x 0.100" Pre-Drilled VersaFrame Aluminum Tube Stock (59")
217-4104

In Stock

$24.99
1" x 2" x 0.050" Pre-Drilled VersaFrame Aluminum Tube Stock (59")
217-3425

Out of Stock; Backorder will ship no sooner than December 3rd

$29.99
1" x 2" x 0.100" Pre-Drilled VersaFrame Aluminum Tube Stock (59")
217-3453

In Stock

$34.99

Plastic VersaFrame Tube Stock

Product Name Availability Price Qty
1" x 1" x 0.100" Pre-Drilled VersaFrame Plastic Tube Stock (59")
217-5851

In Stock

$27.99
1” x 2” x 0.100” Pre-Drilled VersaFrame Plastic Tube Stock (59”)
217-4819

In Stock

$34.99

VersaFrame C-Channel

Product Name Availability Price Qty
1" x 1" x 1" x 0.090" VersaFrame Aluminum C-Channel (59")
217-4107

In Stock

$29.99
1" x 2" x 1" x 0.090" VersaFrame Aluminum C-Channel (59")
217-4108

In Stock

$39.99

VersaFrame Angle

Product Name Availability Price Qty
1” x 1” x 0.090” VersaFrame Aluminum Angle (59”)
217-4109

In Stock

$24.99
2” x 2” x 0.090” VersaFrame Aluminum Angle (59”)
217-4110

In Stock

$34.99
Material Type
  • Aluminum Tube Stock - 6061-T6 Aluminum

  • Plastic Tube Stock - Polycarbonate

  • Angle & C-Channel - 5052 Aluminum
Material Thickness
0.040", 0.050", 0.090", or 0.10"
Drawing
Weight
    Aluminum VersaFrame Tube Stock
  • (217-3426) 1" x 1" x 0.040" Pre-Drilled VersaFrame Aluminum Tube Stock (59") - 0.90 lbs
  • (217-4104) 1" x 1" x 0.100" Pre-Drilled VersaFrame Aluminum Tube Stock (59") - 1.95 lbs
  • (217-3425) 1" x 2" x 0.050" Pre-Drilled VersaFrame Aluminum Tube Stock (59") - 1.65 lbs
  • (217-3453) 1" x 2" x 0.100" Pre-Drilled VersaFrame Aluminum Tube Stock (59") - 3.28 lbs

  • Plastic VersaFrame Tube Stock
  • (217-5851) 1” x 1” x 0.100” Pre-Drilled VersaFrame Plastic Tube Stock (59”) - 0.88 lbs
  • (217-4819) 1” x 2” x 0.100” Pre-Drilled VersaFrame Plastic Tube Stock (59”) - 1.34 lbs

  • VersaFrame C-Channel
  • (217-4109) 1" x 1" x 1" x 0.090" VersaFrame Aluminum C-Channel (59") - 0.9 lbs
  • (217-4110) 1" x 2" x 1" x 0.090" VersaFrame Aluminum C-Channel (59") - 1 lbs

  • VersaFrame Angle
  • (217-4107) 1” x 1” x 0.090” VersaFrame Aluminum Angle (59”) - 1.316 lbs
  • (217-4108) 2” x 2” x 0.090” VersaFrame Aluminum Angle (59”) - 1.786 lbs
CAD Files
