VersaRollers
Developed as a collaboration between West Coast Products and VEX Robotics, the VersaRoller system gives teams a modular system to create almost any kind of roller. Available in high-strength black anodized aluminum or lightweight plastic, the VersaRoller system enables you to easily create the solution for your roller needs.
- Each VersaRoller tube comes with scribe lines at every 90°, so you know exactly where to drill holes
- 3/8" Hex Insert makes the VersaRoller system compatible with the FIRST® Tech Challenge
- Common application examples include feeder systems and intake rollers

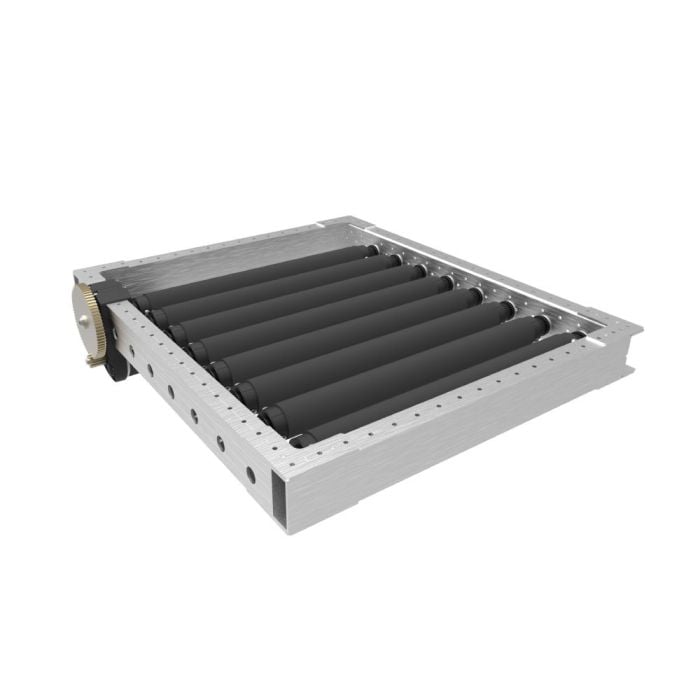

| Application Examples | VersaRoller Idler Roller
VersaRoller Common Example
VersaRoller Easy Drop Example
|
|---|
VersaRoller Hub, 1/2" Hex Bore x 1-1/8" OD (Aluminum) [217-5895]
- (1) VersaRoller 1/2” Hex Hub Insert, 5/16-18 Tapped Hole
- (3) #10-32 x 0.3125" Socket Head Cap Screw w/ Nylon Patch
- (2) 5/16-18 x 0.500" Flanged Button Head Cap Screw w/ Nylon Patch
VersaRoller Hub, 1/2" Hex Bore x 1-1/8" OD (Plastic) [217-5896]
- (1) VersaRoller Hub, 1/2" Hex Bore x 1-1/8" OD (Plastic)
- (3) #10 x 0.3125 Self-Tapping Phillips Button Head Screw, Blunt Tip
- (2) 5/16-18 x 0.500" Flanged Button Head Cap Screw w/ Nylon Patch
VersaRoller 1/2” Hex Hub Insert, 5/16-18 Tapped Hole [217-5897]
- (1) VersaRoller 1/2” Hex Hub Insert, 5/16-18 Tapped Hole
- (1) 1/2” Snap Ring
VersaRoller 1/2” Hex Hub Insert, 1/2" Hex Shaft x 7/8” Long [217-5898]
- (1) VersaRoller 1/2” Hex Hub Insert, 1/2" Hex Shaft x 7/8” Long
VersaRoller 1/2” Hex Hub Insert, 1/2" Hex Shaft x 2-1/2” Long [217-5899]
- (1) VersaRoller 1/2” Hex Hub Insert, 1/2" Hex Shaft x 2-1/2” Long
VersaRoller 1/2” Hex Hub Insert, 3/8" Hex Shaft x 2-5/8” Long [217-5900]
- (1) VersaRoller 1/2” Hex Hub Insert, 3/8" Hex Shaft x 2-5/8” Long
VersaRoller Tube, 1-¼” OD x 1-⅛” ID x 1/16” Wall (Aluminum, 59”) [217-5901]
- (1) VersaRoller Tube, 1-¼” OD x 1-⅛” ID x 1/16” Wall (Aluminum, 59”)
VersaRoller Tube, 1-¼” OD x 1-⅛” ID x 1/16” Wall (Plastic, 36”) [217-5902]
- (1) VersaRoller Tube, 1-¼” OD x 1-⅛” ID x 1/16” Wall (Plastic, 36”)
- 217-5898, 217-5899, 217-5900 - 7075 Aluminum
- 217-5895, 217-5897, 217-5901 - 6061-T6 Aluminum
- 217-5902 - Polycarbonate
- 217-5896 - Glass Filled Nylon
-
VersaRoller Tube
-
VersaRoller Tube, 1-¼” OD x 1-⅛” ID x 1/16” Wall (Plastic, 36”) (217-5902)
-
VersaRoller Tube, 1-¼” OD x 1-⅛” ID x 1/16” Wall (Aluminum, 59”) (217-5901)
-
VersaRoller Hubs
-
VersaRoller Hub, 1/2" Hex Bore x 1-1/8" OD (Aluminum) (217-5895)
-
VersaRoller Hub, 1/2" Hex Bore x 1-1/8" OD (Plastic) (217-5896)
-
VersaRoller Hex Hub Inserts
-
VersaRoller 1/2” Hex Hub Insert, 3/8" Hex Shaft x 2-5/8” Long (217-5900)
-
VersaRoller 1/2” Hex Hub Insert, 1/2" Hex Shaft x 2-1/2” Long (217-5899)
-
VersaRoller 1/2” Hex Hub Insert, 1/2" Hex Shaft x 7/8” Long (217-5898)
-
VersaRoller 1/2” Hex Hub Insert, 5/16-18 Tapped Hole (217-5897)
