VersaPlanetary 180° Drive

For all of its strengths, sometimes the VersaPlanetary Gearbox can be a little too long to fit into tight spaces, especially once you account for the input motor. In these tight applications, the VersaPlanetary 180 Degree Drive Kit is the perfect solution.. By “folding” the motor back on your VersaPlanetary gearbox, we’ve found a way to cut the length of your VersaPlanetary-plus-motor assembly in half.

For an easy, off the shelf solution, you can use the 180 degree gusset kit and its associated GT2 belts and pulleys. Or, you also have the option of buying the standalone 180 degree drive block to integrate into custom designs.

From: $5.99

Price as configured: $0.00

Availability: In stock

Price as configured: $0.00

You may also be interested in the following product(s)

Description

Details

Kit Contents

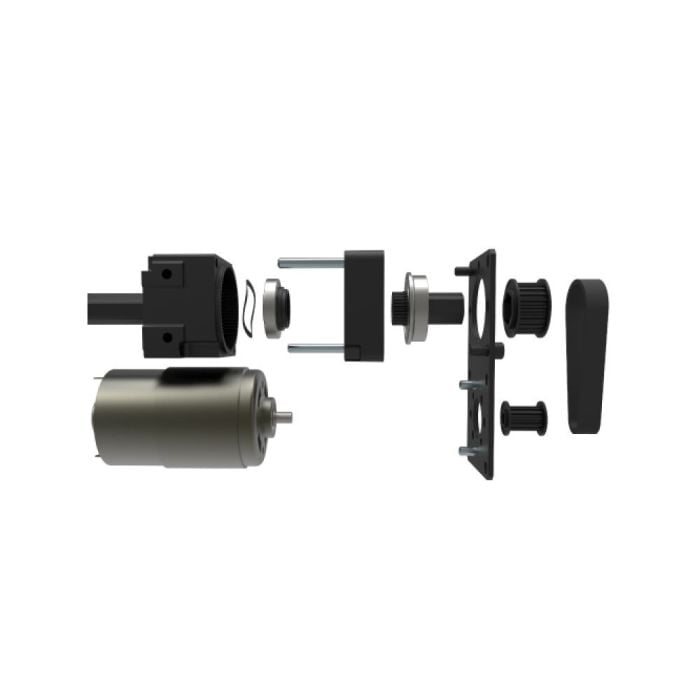

VersaPlanetary 180° Drive Kit (217-6011)
  • (1) Plastic VersaPlanetary 180° Housing
  • (1) Flanged Bearing - 13.75mm (1/2" ThunderHex) x 1.125in x 0.313in
  • (1) Radial Bearing - 17mm x 26mm x 5mm
  • (1) 180° Drive Output Shaft
  • (1) VersaPlanetary 180° Spline Coupler
  • (1) .825" ID x 1.00" OD x .012" Wave Washer
  • (2) #8-32 X 1/4" X 1/4" Hex Standoff


  • VersaPlanetary 180° Drive 0-3 Stage Screw Kit (217-6042)
  • (2) #8-32 x 0.875" Socket Head Cap Screw
  • (2) #8-32 x 1.375" Socket Head Cap Screw
  • (2) #8-32 x 1.875" Socket Head Cap Screw
  • (2) #8-32 x 2.375" Socket Head Cap Screw


  • VersaPlanetary 180° Drive Gusset Kit (217-6043)
  • (1) VersaPlanetary 180° Drive Gusset
  • (1) VersaPlanetary 180° Drive Gusset with Mounting Flange
Docs & Downloads
Drawing
CAD Files
