WCP DS Gearbox

WCP DS - Dual Speed Base Kit

More Views

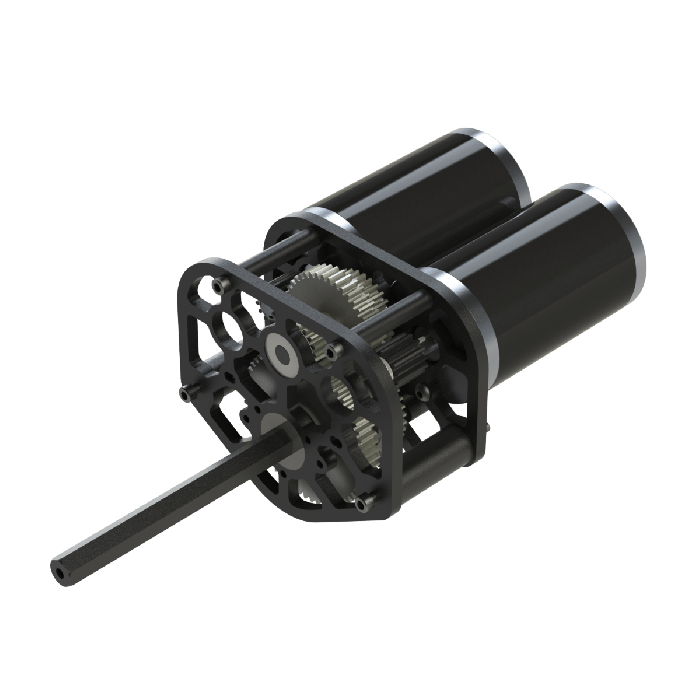

WCP DS Gearbox

The West Coast Products DS Gearbox is the lightest Dog-Style shifting gearbox on the market. Like all West Coast Products items this gearbox is easily adaptable into a West-Coast style drivetrain, or into a conventional skid steer drivetrain.

The Dog itself has been modified, it is now made from solid 4140 steel, and is about 50% thicker across its thinnest cross-section. These changes make the new DOG extremely strong, and allows teams to drill out the DOG, for a roll pin, if desired.

DS Gearbox has multiple CIM motor mounting positions to allow for different sized pinions. There are now 4 possible pinion options, 2 possible input gear options, and 3 standard gear kits. This gives a total of 18 ratio options for the DS Gearbox. (Additional non-standard ratios are possible using other VEXpro gears.)

We know more and more teams are trying to harness their drivetrain motors for other mechanisms, and as such we want to make it easy for teams to integrate a PTO into their robot. The WCP engineers got the chance to design their first item utilizing the VEXpro VersaKeys —the VersaDog. Using the VersaDog, teams can utilize any VEXpro gear, sprocket, or pulley to power their additional mechanisms.

  • Options for either two or three CIM-style motor inputs
  • Standard output or specializedspecialised West Coast Drive Mounting (includes WCD bearing block)
  • Extended length output shaft can be cut by teams to match their configuration
  • Mount to VersaChassis & direct drive any WCP or VEXpro wheel

Note: A pneumatic shifting cylinder and fitting kit is not included in the WCP DS kit. Be sure to add these below in the "Pneumatic Cylinder & Fitting Options" category if needed.

From: $7.99

Price as configured: $0.00

Availability: In stock

Price as configured: $0.00

Add to Wishlist

You may also be interested in the following product(s)

Description

Details

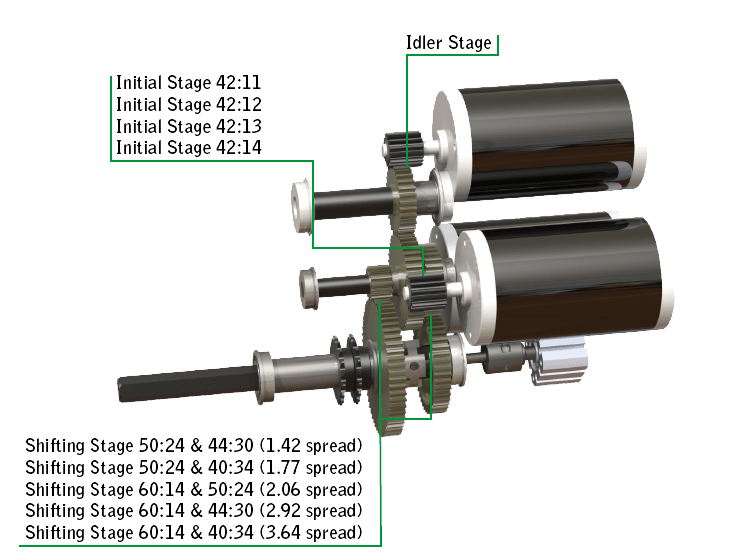

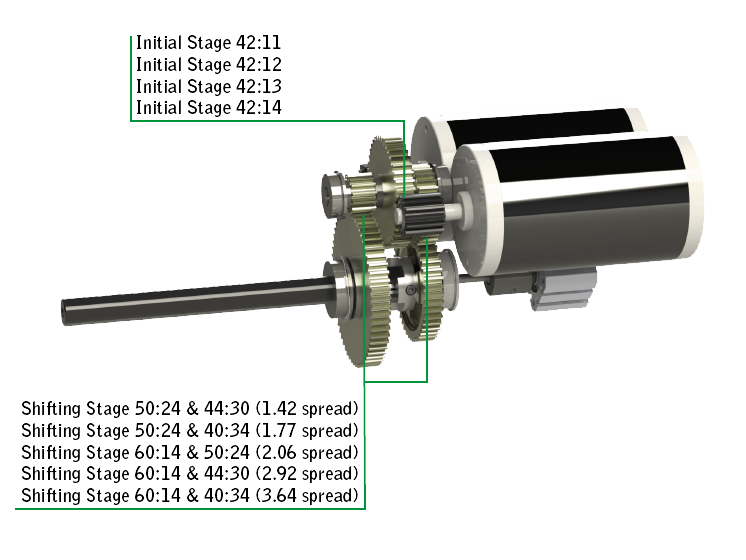

2.92 Spread Ratio
Gear Choices Lead Output Speeds (feet per second)
Pinion Input Input Low Dog Low Input High Dog High 3.25" Low 3.25" High 4" Low 4" High 6" Low 6" High
11 42 14 60 30 44 4.5 12.0 5.5 15.0 8.0 20.0
12 42 14 60 30 44 5.0 13.0 6.0 16.0 9.0 20.5
13 42 14 60 30 44 5.0 13.5 6.5 17.0 9.5 21.0
14 42 14 60 30 44 5.5 14.5 7.0 18.0 10.0 21.5
13 42 14 60 30 44 5.5 14.0 7.0 18.0 10.0 21.5
14 42 14 60 30 44 6.0 15.0 7.5 18.5 11.0 21.5

3.64 Spread Ratio
Gear Choices Lead Output Speeds (feet per second)
Pinion Input Input Low Dog Low Input High Dog High 3.25" Low 3.25" High 4" Low 4" High 6" Low 6" High
11 42 14 60 34 40 4.5 9.0 5.5 11.0 8.0 15.5
12 42 14 60 34 40 5.0 10.0 6.0 12.0 9.0 17.0
13 42 14 60 34 40 5.0 10.0 6.5 13.0 9.5 18.0
14 42 14 60 34 40 6.0 11.0 7.0 13.5 10.0 18.5
13 42 14 60 34 40 5.5 11.0 7.0 13.5 10.0 18.5
14 42 14 60 34 40 6.0 11.5 7.5 14.0 11.0 19.0

2.06 Spread Ratio
Gear Choices Lead Output Speeds (feet per second)
Pinion Input Input Low Dog Low Input High Dog High 3.25" Low 3.25" High 4" Low 4" High 6" Low 6" High
11 42 14 60 24 50 4.5 9.0 5.5 11.0 8.0 15.5
12 42 14 60 24 50 5.0 10.0 6.0 12.0 9.0 17.0
13 42 14 60 24 50 5.5 10.0 6.5 13.0 9.5 18.0
14 42 14 60 24 50 6.0 11.0 7.0 13.5 10.0 18.5
13 42 14 60 24 50 5.5 11.0 7.0 13.5 10.0 18.5
14 42 14 60 24 50 6.0 11.5 7.5 14.0 11.0 19.0

1.42 Spread Ratio (non-standard ratio, gears available here)
Gear Choices Lead Output Speeds (feet per second)
Pinion Input Input Low Dog Low Input High Dog High 3.25" Low 3.25" High 4" Low 4" High 6" Low 6" High
11 42 24 50 30 44 9.0 12.0 11.0 15.0 15.5 20.0
12 42 24 50 30 44 10.0 13.0 12.0 16.0 17.0 20.5
13 42 24 50 30 44 10.0 13.5 13.0 17.0 18.0 21.0
14 42 24 50 30 44 11.0 14.5 13.5 18.0 18.5 21.5
13 42 24 50 30 44 10.5 14.0 13.5 18.0 18.5 21.5
14 42 24 50 30 44 12.0 15.0 14.0 18.5 19.0 21.5

1.77 Spread Ratio (non-standard ratio, gears available here)
Gear Choices Lead Output Speeds (feet per second)
Pinion Input Input Low Dog Low Input High Dog High 3.25" Low 3.25" High 4" Low 4" High 6" Low 6" High
11 42 24 50 34 40 9.0 14.0 11.0 18.0 15.5 21.5
12 42 24 50 34 40 10.0 15.0 12.0 19.0 17.0 21.5
13 42 24 50 34 40 10.0 16.0 13.0 19.5 18.0 21.5
14 42 24 50 34 40 11.0 16.5 13.5 20.5 18.5 21.0
13 40 24 50 34 40 10.5 16.0 13.5 20.0 18.5 21.5
14 40 24 50 34 40 12.0 17.0 14.0 21.0 19.0 21.0

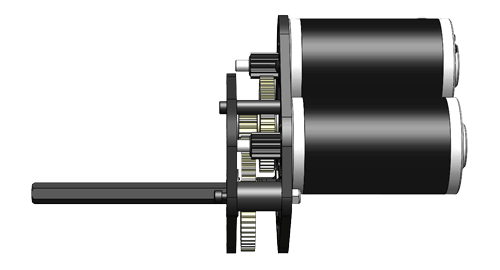

Base Kit (217-3423)

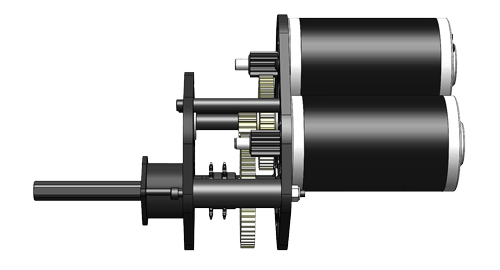

WCD Version (217-3422)




The WCP DS includes the option to come in a "West Coast Drive" (or "WCD") configuration. This style features additional space for a set of sprockets or pulleys to be contained within the gearbox assembly itself, bringing them close to the drive frame and making it easy to create a "West Coast"-style cantilevered drivetrain.

Kit Contents

WCP DS - Dual Speed Base Kit (217-3423):

  • (1) 60t Dog Gear
  • (1) 42t Gear with 3/8" Hex
  • (1) 14t Gear with 3/8" Hex bore (Steel)
  • (2) WCP DS - Gearbox Plate
  • (1) WCP DS - Standard Input Shaft
  • (1) WCP DS - Standard Output Shaft
  • (1) WCP DS - Shifter Shaft
  • (1) WCP DS - Shifter Dog Kit
  • (1) WCP DS Pneumatic Hardware Kit
  • (1) WCP DS - Dual Speed Bearing Kit
  • (1) WCP DS - Shim - .501" ID x .750" OD
  • (2) 1/8" Acetal Spacer - 3/8" Hex (10-pack)
  • (1) 1/16" Acetal Spacer - 3/8" Hex (10-pack)
  • (1) 1/16" Acetal Spacer - 1/2" Hex (10-pack)

    • WCP DS - West Coast Drive Base Kit (217-3424):

  • (1) 60t Dog Gear
  • (1) 42t Gear with 3/8" Hex
  • (1) 14t Gear with 3/8" Hex bore (Steel)
  • (2) WCP DS - Gearbox Plate
  • (1) WCP DS - WCD Input Shaft
  • (1) WCP DS - Standard Output Shaft
  • (1) WCP DS - WCD Hardware Kit
  • (1) WCP DS - Shifter Dog Kit
  • (1) WCP DS Pneumatic Hardware Kit
  • (1) WCP DS - Dual Speed Bearing Kit
  • (1) WCP DS - Gearbox Bearing Block
  • (1) WCP DS - Shim - .501" ID x .750" OD
  • (1) 1/4" Acetal Spacer - 1/2" Hex (10-pack)
  • (1) 1/8" Acetal Spacer - 1/2" Hex (10-pack)
  • (2) 1/16" Acetal Spacer - 1/2" Hex (10-pack)
  • (2) 1/16" Acetal Spacer - 3/8" Hex (10-pack)

    • WCP DS - 3 CIM Standard Drive Base Kit (217-3637):

  • (1) 60t Dog Gear
  • (1) 42t Gear with 3/8" Hex
  • (1) 30t Gear with 1/2" Hex
  • (1) 14t Gear with 3/8" Hex bore (Steel)
  • (2) WCP DS - 3 CIM Gearbox Plate
  • (1) WCP DS - Standard Input Shaft
  • (1) WCP DS - Standard Output Shaft
  • (1) WCP DS - 3 CIM Combiner Shaft
  • (1) WCP DS - 3 CIM Gearbox Plate
  • (1) WCP DS - Shifter Rod
  • (1) WCP DS - Hardware Kit
  • (1) WCP DS Pneumatic Hardware Kit
  • (1) WCP DS - Dual Speed Bearing Kit
  • (2) WCP DS - Standard Bottom Spacers
  • (1) WCP DS - Shim - .501" ID x .750" OD
  • (1) 1/2" Acetal Spacer - 1/2" Hex (10-pack)
  • (2) 1/8" Acetal Spacer - 3/8" Hex (10-pack)
  • (1) 1/16" Acetal Spacer - 3/8" Hex (10-pack)
  • (1) 1/8" Acetal Spacer - 1/2" Hex (10-pack)


    • WCP DS - 3 CIM West Coast Drive Base Kit (217-3433):

  • (1) 60t Dog Gear
  • (1) 42t Gear with 3/8" Hex
  • (1) 30t Gear with 1/2" Hex
  • (1) 14t Gear with 3/8" Hex bore (Steel)
  • (2) WCP DS - Gearbox Plate
  • (1) WCP DS - WCD Input Shaft
  • (1) WCP DS - Standard Output Shaft
  • (1) WCP DS - 3 CIM Combiner Shaft
  • (1) WCP DS - 3 CIM Gearbox Plate
  • (1) WCP DS - Shifter Rod
  • (1) WCP DS - WCD Hardware Kit
  • (1) WCP DS Pneumatic Hardware Kit
  • (1) WCP DS - Dual Speed Bearing Kit
  • (1) WCP DS - Gearbox Bearing Block
  • (2) WCP DS - WCD Bottom Spacers
  • (1) WCP DS - Shim - .501" ID x .750" OD
  • (1) 1/2" Acetal Spacer - 1/2" Hex (10-pack)
  • (2) 1/16" Acetal Spacer - 3/8" Hex (10-pack)
  • (2) 1/16" Acetal Spacer - 1/2" Hex (10-pack)
  • (1) 1/8" Acetal Spacer - 1/2" Hex (10-pack)
  • (1) 1/4" Acetal Spacer - 1/2" Hex (10-pack)


    • WCP DS - PTO Add-On Kit (217-3636):

  • (1) WCP DS - VersaDog
  • (1) WCP DS - Shifter Dog Kit
  • (1) WCP DS Pneumatic Hardware Kit
  • (1) WCP DS - Standard Output Shaft
  • (1) Radial Bearing - 0.500" x 1.125" x .313"
  • (1) 1/8" Acetal Spacer - 1/2" Hex
  • (1) 1/4" Acetal Spacer - 1/2" Hex
  • (1) 1/16" Acetal Spacer - 1/2" Hex
  • (1) 1/2" Retaining Ring
  • (2) Screw, #10-32 x .313 Button head cap
  • (1) WCP DS - Shim - .501" ID x .750" OD

    • Docs & Downloads
    Material Type
    • Gears - 7075 T6 Aluminum with teflon infused ceramic coating
    • Shafts - 7075 T6 Aluminum
    • Plates & Spacers - 6061 T6 Aluminum
    • Bearing Block - 6061 T6 Aluminum
    • DOG - 4140 Steel
    Drawing
    Weight
      Sample Configurations:
    • WCP DS, 2.92 Spread Kit, 11T pinions - 1.93 lbs
    • WCP DS WCD, 2.92 Spread Kit, 11T pinions - 2.15 lbs
