Motor Controller 29

 Motor Controller 29

Hover to View, Click to Zoom

  • Motor Controller 29

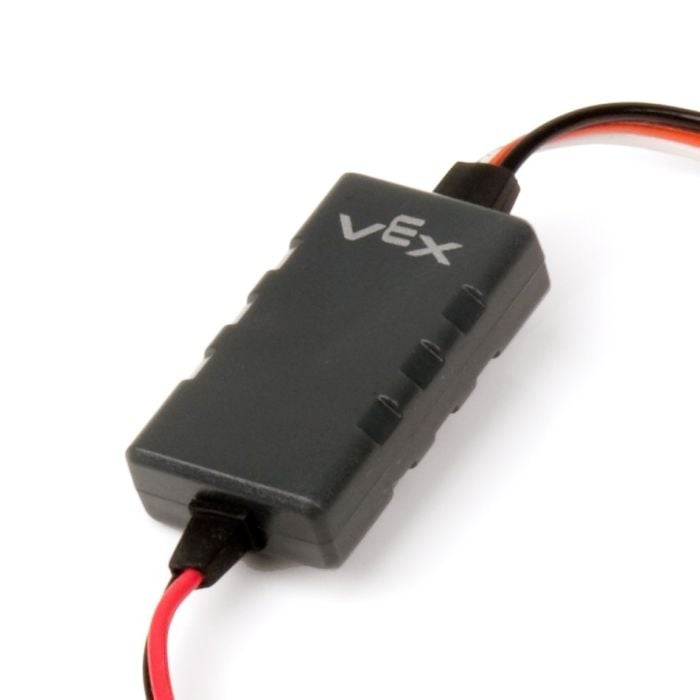

Motor Controller 29

P/N: 276-2193

Add more motors.

The VEX Motor Controller 29 uses a standard PWM signal (like that originating from the 3-wire ports on VEX Microcontrollers) to drive a VEX 2-Wire Motor.

Note: We recommend using no more more than one (1) 3-Wire extension cable in between the Motor Controller 29 and a VEX Microcontroller. For longer extensions, use 2-Wire extension cables in between the Motor Controller 29 and a VEX 2-Wire motor.

$9.99

In stock

Add Items to Cart
OR

You may also be interested in the following product(s)

Product Name P/N: Availability Price Qty
2-Wire Extension Cables (5 options)
In stock

Technical Specifications

Kit Contents (1) Motor Controller 29
Downloads & Docs VEX Wiki - Motor Controller 29
STEP File
Battery In Max battery voltage: 8.5V (with fully charged 7.2V battery)
Max current: 4 A
Inputs
  • Black Wire:Ground
  • Orange Wire:Power
  • White Wire:PWM Signal: 1ms - 2ms will give full reverse to full forward, 1.5ms is neutral,
    200µs for brake mode (like neutral, but motor terminals shunted together). Brake mode may not be supported by your complier.
Outputs
  • Red & Black Wires:Motor Connections
Microcontroller Compatible with 3-wire motor ports on all VEX Microcontrollers
