Tank Tread Kit

In stock
Works with products and accessories.

This kit contains over five feet of tank tread. Use this tank tread to build robot tracks which can overcome tough terrain, or build a conveyor belt for scooping up objects. The Tank Tread Upgrade Kit contains soft rubber pads for increased traction and fins to aid conveyor belt mechanisms.

  • Climb over obstacles.
  • Traverse tough terrain.
  • Drive through sandy or soft spongy surfaces.
  • Can be used for a robot conveyor belt.
  • Every section is a master link, create treads of any length.

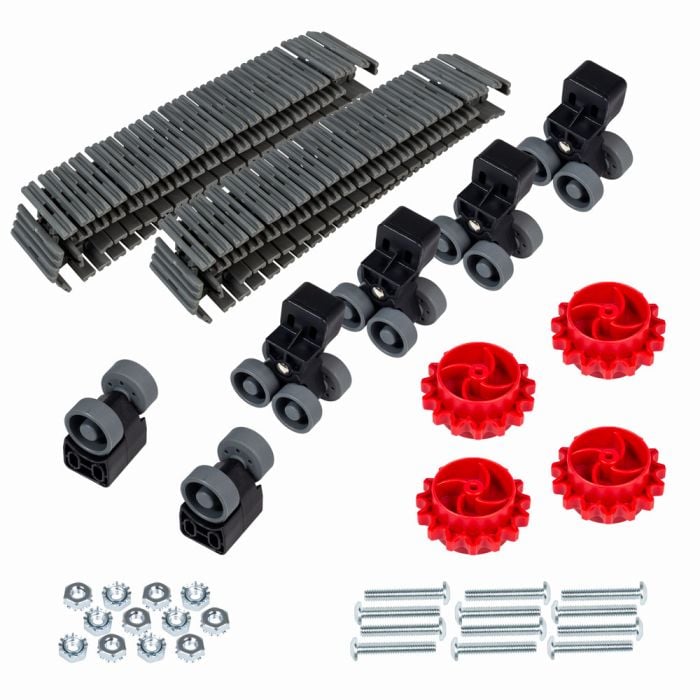

  • (170) Tread Links
  • (4) Tank tread drive/idler wheels
  • (4) Double Bogie wheel assemblies
  • (2) Single Bogie wheel assemblies
  • (12) 8-32 x 1" Bogie wheel support screws
  • (12) Keps nuts
  • Width: 1.5" (38.1mm)
  • Wheel Diameter: 2.375" (60.3mm)
  • Length: 170 Links = 65.5" (1664mm) when laid in one continuous flat section
  • Drive/idler wheels: 0.038 lbs each
  • Double Bogie: 0.078 lbs each
  • Single Bogie: 0.040 lbs each
