V5 Pneumatics Kit

$299
Out of stock
SKU
276-8750
Works with products and accessories.
VRC, VEX U, VAIRC legal.

VEX Robotics Competition, VEX AI Competition, VEX U legal

This kit contains everything needed to get a classroom or VEX Robotics Competition team up and running with Pneumatics.

Pneumatics deliver fast and powerful linear motion that is useful in a variety of applications. Use pneumatics to power your robot's claw, intake deployment, or any mechanism that requires quick motion. In particular, pneumatics are useful in applications requiring only two positions (open/closed, up/down, etc.)

More Information
Product Specs

Force And Pressure

  • System Pressure: 689 kN/m^2 (100 psi)
  • Cylinder Bore: 10 mm (0.394 in)
  • Max Force: 54 N (12 lbf)

Lengths

  • 75mm Stroke Pneumatic Cylinder: 162 mm Compressed / 237mm Extended
  • 50mm Stroke Pneumatic Cylinder: 137 mm Compressed / 187mm Extended
  • 25mm Stroke Pneumatic Cylinder: 112 mm Compressed / 137mm Extended

Weights

  • Air Tank: 315 g (0.694 lb)
  • 75mm Stroke Pneumatic Cylinder: 45 g (0.099 lb)
  • 50mm Stroke Pneumatic Cylinder: 39 g (0.086 lb)
  • 25mm Stroke Pneumatic Cylinder: 33 g (0.073 lb)

Actuations at 30psi Regulated:

  • 75mm Stroke Pneumatic Cylinder: 40 Cycles
  • 50mm Stroke Pneumatic Cylinder: 50 Cycles
  • 25mm Stroke Pneumatic Cylinder: 80 Cycles

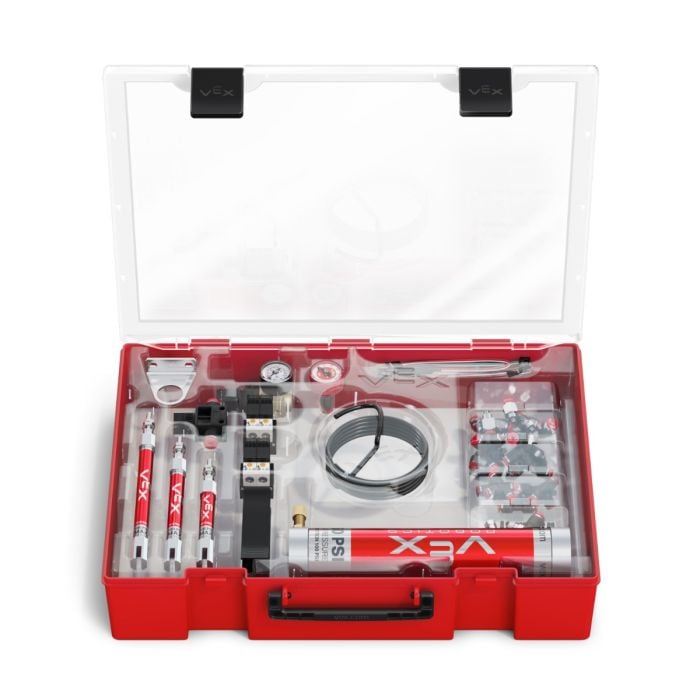

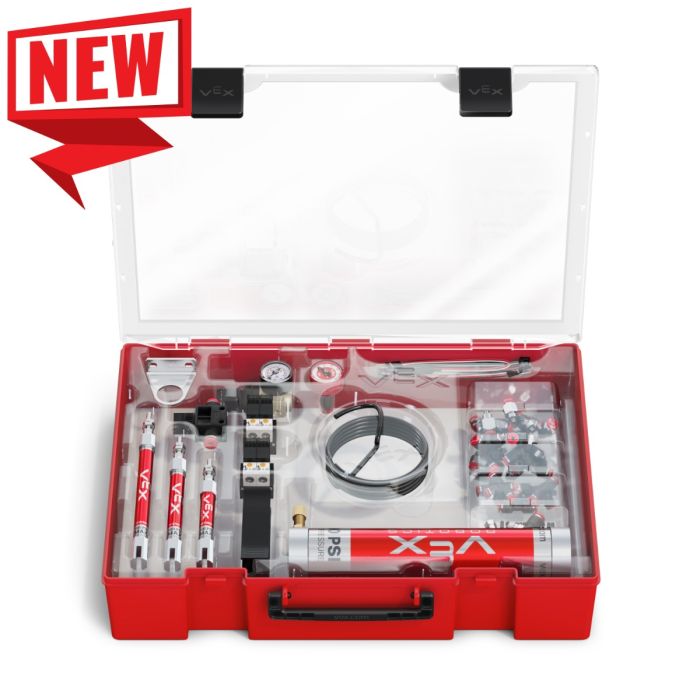

V5 Pneumatics Kit (276-8750)

  • (1) 75mm Stroke Pneumatic Cylinder
  • (1) 50mm Stroke Pneumatic Cylinder
  • (1) 25mm Stroke Pneumatic Cylinder
  • (1) Air Tank 200mL
  • (1) Air Pressure Gauge
  • (1) Air Pressure Regulator
  • (1) Air Pressure Regulator Mounting Bracket
  • (1) Tubing Cutter
  • (2) Double Acting Solenoid Driver Cables
  • (2) Double Acting Solenoids
  • (1) Shut Off Valve Fitting
  • (8) Elbow Fittings
  • (5) Tee Fittings
  • (2) Air Flow Valve Fittings
  • (10) Straight Male Fittings
  • (1) Straight Female Fittings
  • (1) Valve Stem
  • (10) 4mm Plugs
  • (3 Meters) 4mm Tubing
  • Ages: 14+
  • Assembly: Over-tightening components with tools can lead to damage. Hand-tighten only.
  • California residents: see Prop 65 WARNINGS
