EDR 393 Motors & Servos
VEX 393 motors are the primary motors used for robot mechanisms. We also offer replacement gears to give your motors a speed boost. Use 393's to power your intakes, lifts, and drivetrains.
The 2-Wire Motor 393 is the primary actuator used in the VEX EDR. Build rotational mechanisms, drive bases, rotational joints, conveyor belts - anything that spins can be built using the 2-wire Motor 393.
The 2 Wire Motor 393 provides 60% more output power than the standard motor, which allows for more powerful mechanisms and drive bases.
- Strong, steel internal gears.
- Can be configured into a "high speed" version.
The 2-Wire Motor 393 does not have an internal motor controller.
The motor connects directly to 2-Wire Motor Ports (Ports 1 & 10 on the Cortex Microcontroller). For 3-Wire Motor Ports (Ports 2-9 on the Cortex), a Motor Controller 29 must be used in between the Microcontroller and the motor.
| Output Stage Driving Gear | Output Stage Driven Gear | Output Speed (RPM) | Output Stall Torque (N*m) | IME Ticks per Revolution | |
| Standard Motor 393 Gearing | 10t | 32t | 100 | 1.67 | 627.2 |
| High Speed Option (included with Motor 393) | 14t | 28t | 160 | 1.04 | 392 |
| Turbo Gear Set (sold separately) | 18t | 24t | 240 | 0.7 | 261.333 |
Lose your gears? This convenient replacement gear pack for the 2 Wire Motor 393 will get you going again without having to purchase a new motor. Includes one full set of gears.
- Only for the 2 Wire Motor 393
- (1) High Speed Gear Set
- (1) High Torque Gear Set
- (1) Set of replacement case assembly screws
Use the Turbo Gear Set to push your motors to the fastest speeds ever seen in VEX EDR. This gear pack replaces the gears inside a 2-Wire Motor 393 for high-RPM, low-torque applications.
- Only for 2-Wire Motor 393
- 240 RPM output speed is 140% faster than standard gearing
- Use with external gearing or large wheels for even more speed
Servo motors are a type of motor that can be directed to turn to face a specific direction, rather than just spin forward or backward.
- Expand functionality
- Add pan and tilt to a camera
- 100 degrees of rotation
- Do exact positioning
For use with a VEX EDR Continuous Rotation Motor or VEX EDR Servo.
- (3) Clutches
- (3) Short Axles for Clutches

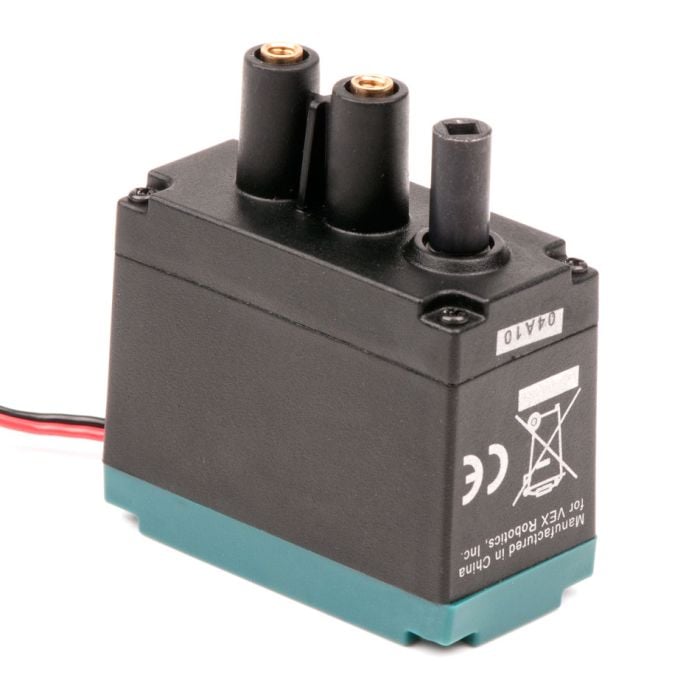

2-Wire Motor 393 (276-2177)
(1) VEX EDR 2-Wire Motor 393 Module
(2) #6-32 x 1/4" Screws
(2) #6-32 x 1/2" Screws
(1) Change Gears Set
(1) Motor Coupler
(1) Motor Post
Motor 393 Refurb Kit (276-2487)
(4) Motor Case Screws
(1) Cluster Gear (11/48)
(1) Cluster Gear (12/49)
High Speed Gear Set:
(1) Cluster Gear (14/33)
(1) Output Gear (28T)
High Torque Gear Set:
(1) Cluster Gear (10/33)
(1) Output Gear (32T)
393 Motor Turbo Gear Set (276-3527)
(4) Turbo Gearset Pinion
(4) Turbo Gearset Output
3-Wire Servo (276-2162)
(1) VEX EDR servo motor
(1) VEX EDR servo motor gear set (4 total gears, 1 replacement for each gear)
(2) #6-32 x 1/4" Screws
(2) #6-32 x 1/2" Screws
(1) Clutch
(1) Clutch post
Clutch (276-1098)
(3) Motor Clutch
Motor 393 Refurb Kit
Powdered Steel and Machined Cold-Rolled-Steel
393 Motor Turbo Gear Set
Powdered Steel and Machined Cold-Rolled-Steel
2 Wire Motor 393
Motor 0.192 lbs (87.1 grams)
#6-32 x 1/4" Screw 0.0014 lbs (0.617 grams)
#6-32 x 1/2" Screw 0.00209 lbs (0.948 grams)
Motor Coupler 0.004 lbs (1.814 grams)
Motor Post 0.002 lbs (0.907 grams)
3-Wire Servo
VEX EDR Continuous Rotation Motor 0.096 lbs (43.5 grams)
#6-32 x 1/4" Screw 0.0014 lbs (0.617 grams)
#6-32 x 1/2" Screw 0.00209 lbs (0.948 grams)
Clutch 0.007 lbs (3.17 grams)
All listed weights are actual weights of one item (no packaging)
2 Wire Motor 393
Free Speed: 100 rpm (As Shipped)/160 rpm (High Speed Option)
Stall Torque: 1.67 N-m (14.76 in-lbs) (As Shipped)/1.04 N-m (9.2 in-lbs) (High Speed Option)
Stall Current: 4.8A
Free Current: 0.37A
Note: All motor specifications are at 7.2 volts.
3-Wire Servo
Rotation: 100 degrees
Stall Torque: 6.5 in-lbs
Voltage: 4.4 - 9.1 Volts (Motor life will be reduced operating outside this range)
PWM Input: 1ms - 2ms will give full reverse to full forward, 1.5ms is neutral
Black Wire: Ground
Orange Wire: Power
White Wire: PWM signal
Current Draw: 20mA to 1.5 A per Servo
Max Power: 4.9 W when rated @ 6V
Note: Performance varies slightly due to variations in manufacturing.
Click the button next to a file to view it in your browser.
2 Wire Motor 393
Drive Shafts (0.125" square bar)
2-Wire Motor Ports
3-Wire Motor Ports (with a Motor Controller 29)
Motor 393 Refurb Kit
2-Wire Motor 393 only
393 Motor Turbo Gear Set
2-Wire Motor 393 only
3-Wire Servo
All VEX EDR Microcontrollers
Drive Shafts (0.125" square bar)
