C-Channels (8-sizes)

More Views

C-Channels (8-sizes)

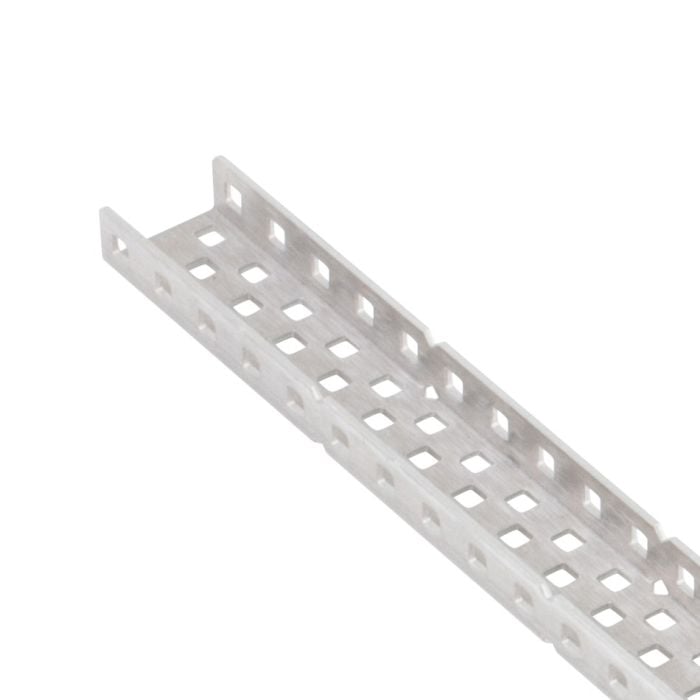

VEX C-channel has holes on 0.500" increments. This structural member’s excellent strength and bending resistance is perfect for building robust robots.

  • Multiple sizes available, in two different material types
  • Made from cold rolled steel, or 5052-H32 Aluminum
  • Each channel is segmented into cuttable 2.5" pieces

Availability: In stock

OR

Steel C-Channel

Product Name Availability Price Qty
1x2x1x35 Steel C-Channel (2-pack)
276-2906

In Stock

$8.99
1x5x1x25 Steel C-Channel (4-pack)
275-1138

In Stock

$17.99
1x5x1x35 Steel C-Channel (4-pack)
275-1139

In Stock

$19.99

Aluminum C-Channel

Product Name Availability Price Qty
1x2x1x25 Aluminum C-Channel (6-pack)
276-2288

In Stock

$29.99
1x2x1x35 Aluminum C-Channel (6-pack)
276-2289

In Stock

$34.99
1x3x1x35 Aluminum C-Channel (6-pack)
276-4359

In Stock

$37.99
1x5x1x25 Aluminum C-Channel (6-pack)
276-2290

In Stock

$39.99
1x5x1x35 Aluminum C-Channel (6-pack)
276-2298

In Stock

$44.99
Kit Contents
Steel C-Channel
  • (2) 1x2x1x35 Steel C-Channel
  • (4) 1x5x1x25 Steel C-Channel
  • (4) 1x5x1x35 Steel C-Channel

Aluminum C-Channel
  • (6) 1x2x1x25 Aluminum C-Channel
  • (6) 1x2x1x35 Aluminum C-Channel
  • (6) 1x3x1x35 Aluminum C-Channel
  • (6) 1x5x1x25 Aluminum C-Channel
  • (6) 1x5x1x35 Aluminum C-Channel
Weight
Steel C-Channel Weights:
  • 1x2x1x35 Steel C-Channel: 0.361 lbs
  • 1x5x1x25 Steel C-Channel: 0.485 lbs
  • 1x5x1x35 Steel C-Channel: 0.678 lbs

Aluminum C-Channel Weights:
  • 1x2x1x25 Aluminum C-Channel: 0.116 lbs
  • 1x5x1x25 Aluminum C-Channel: 0.211 lbs
  • 1x2x1x35 Aluminum C-Channel: 0.157 lbs
  • 1x3x1x35 Aluminum C-Channel: 0.235 lbs
  • 1x5x1x35 Aluminum C-Channel: 0.298 lbs
Material Thickness
  • Steel: 0.046" (1.17mm)
  • Aluminum: 0.064 in (1.6mm)
Material Finish
  • Steel: Zinc Plated
  • Aluminum: Wire brushed clear anodized finish
Material Type
  • Steel: Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)
  • Aluminum:5052-H32 Aluminum
Hole Size
  • 0.182 square (VEX standard)
CAD Files
