VEX IQ 1st gen to 2nd gen Upgrade Kits
Works with
products and accessories.
VEX IQ
legal.
These kits contain all the parts needed to convert a 1st Generation VEX IQ Kit to a 2nd Generation Kit, minus the electronics. Structural and Motion parts only.
Great for those that already have 1st Generation electronics!
If you are looking to upgrade to a 2nd Generation Education Kit, you will only need to purchase 228-8657. If you'd like to upgrade to a 2nd Generation Competition Kit, you will also need to purchase 228-7597.
Â
Â

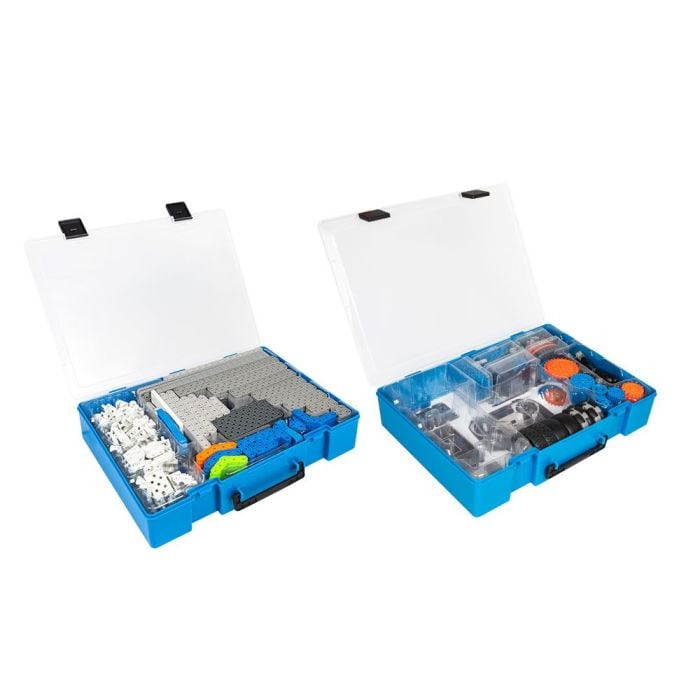

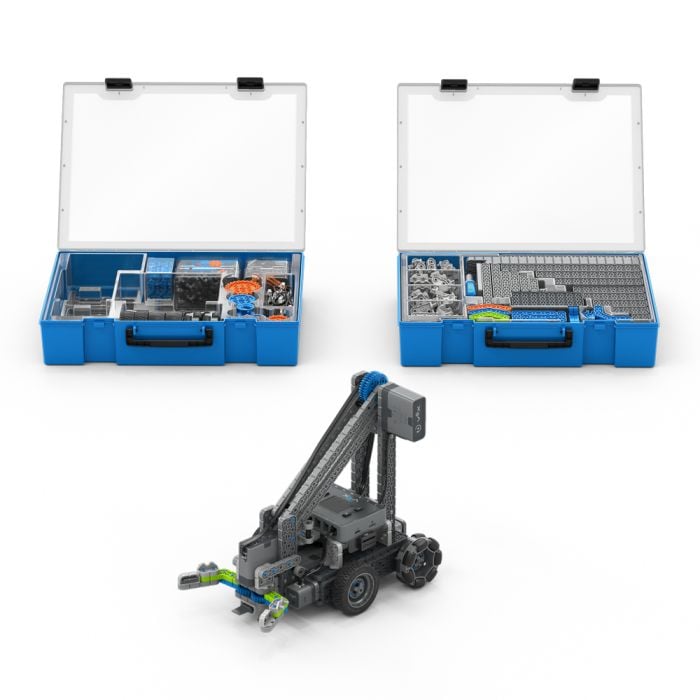

VEX IQ Education Kit (2nd generation) (No Control System) (228-8657)
(7) 1x4 Beam
(2) 1x5 Beam
(6) 1x6 Beam
(8) 1x8 Beam
(6) 1x10 Beam
(4) 1x12 Beam
(4) 1x16 Beam
(5) 2x2 Beam
(6) 2x4 Beam
(6) 2x6 Beam
(2) 2x7 Beam
(6) 2x8 Beam
(4) 2x10 Beam
(6) 2x12 Beam
(4) 2x16 Beam
(2) 2x18 Beam
(2) 2x20 Beam
(2) 3x3 Plate
(4) 4x4 Plate
(2) 4x8 Plate
(6) Large Chassis Corner Connector
(15) Small Chassis Corner Connector
(11) 2x Wide, 1x2 Corner Connector
(9) 1x Wide, 1x1 Corner Connector
(13) 1x Wide, 1x1 Offset Corner Connector
(4) 2x Wide, 2x1 Offset Corner Connector
(5) 2x Wide, 2x1 Corner Connector
(3) 2x Wide, 1x1 Offset Corner Connector
(10) 2x Wide, 2x2 Corner Connector
(8) 2x Wide, 1x2 Offset Corner Connector
(4) 2x Wide, 2x2 Offset Corner Connector
(4) 2x Wide, 3x2 Corner Connector
(4) 3x4 Tee Beam
(5) 2x3 Right Angle Beam
(4) 3x3 30 Degree Angle Beam
(4) 3x3 45 Degree Angle Beam
(4) 3x3 60 Degree Angle Beam
(4) 3x5 Right Angle Beam
(4) 4x4 Offset Right Angle Beam
(3) Rubber Band Anchor
(2) Double 2x Wide, 2x2 Corner Connector
(2) 1x4 Crank Arm with 23 Tooth Gear
(5) Double 2x Wide, 1x2 Corner Connector
(4) Double 2x Wide, 2x2 Double Offset Corner Connector
(4) 2x Wide, 60 Degree Omni 1x2 Corner Connector
(1) 2x8 Smooth Panel
(8) Tripple 2x Wide, 2x2 Corner Connector
(1) Pin Tool
(2) Tire (200 mm Travel)
(6) 36 Tooth Gear
(4) 24 Tooth Gear
(2) 48 Tooth Gear
(4) 16 Tooth Sprocket
(2) 24 Tooth Sprocket
(2) 1x Wide Spool
(2) Small Wheel Hub (44mm)
(6) 2x2 Center Offset Round Lock Beam
(2) 2x Wide, Ø48.5mm Diameter Hub
(2) 2x Wide, 5x Pitch Diameter Balloon Tire (Racing Slick Tread)
(2) 200mm Travel Omni-Directional Wheel
(1) Bumper Sensor
(4) 200mm Smart Cable (Bulk)
(3) 300mm Smart Cable (Bulk)
(1) 400mm Smart Cable (Bulk)
(1) 600mm Smart Cable (Bulk)
(101) Chain Link
(221) 1x1 Connector Pin
(53) 1x2 Connector Pin
(21) 2x2 Connector Pin
(22) 0x2 Connector Pin
(21) 0x3 Connector Pin
(11) Cable Anchor
(11) 0.25x Pitch Standoff
(13) 0.5x Pitch Standoff
(13) 1x Pitch Standoff
(15) 2x Pitch Standoff
(5) 4x Pitch Standoff
(6) 6x Pitch Standoff
(11) 0.5x Pitch Standoff Extender
(13) Mini Standoff Connector
(9) End Standoff Connector
(9) 90 Degree Standoff Connector
(5) 1x2 Beam
(7) 1x1 Idler Pin
(6) 2x Pitch Plastic Motor Shaft
(6) 4x Pitch Plastic Motor Shaft
(6) 3x Pitch Capped Plastic Shaft
(4) 5x Pitch Capped Plastic Shaft
(7) 0x2 Idler Pin
(6) 3x Pitch Plastic Motor Shaft
(24) Washer
(28) 0.25x Pitch Spacer
(2) 4x Pitch Shaft
(4) 6x Pitch Shaft
(32) Rubber Shaft Collar
(10) 1x1 Beam
(10) 12 Tooth Gear
(4) 8 Tooth Sprocket
(5) 1x Pitch Plastic Motor Shaft
(5) 1x4 Low-Profile End Lock Beam
(3) 2x Pitch Capped Shaft
(3) 3x Pitch Capped Shaft
(3) 4x Pitch Capped Shaft
(2) 5x Pitch Capped Shaft
(4) 2x Pitch Motor Shaft
(4) 3x Pitch Motor Shaft
(4) 4x Pitch Motor Shaft
(5) Traction Link
(3) Short Intake Flap
(2) Medium Intake Flap
(2) 24x Pitch Rope
(2) Silicone Rubber Band #32
(4) 1x3 Center Lock Beam
VEX IQ Education to Competition Upgrade Kit (228-7597)
(4) 3x4 Plate
(4) 3x6 Plate
(2) 3x10 Plate
(4) 3x16 Plate
(2) 12x Pitch Shaft
(4) 2x4 Wedge Beam
(4) 3x5 Wedge Beam
(4) 3x12 Girder Plate; 2x8 2x Offset Trapezoid
(2) 60 Tooth Gear
(2) 48 Tooth Gear
(2) 16 Tooth Sprocket
(4) 24 Tooth Sprocket
(6) 36t Hybrid Gear
(2) 2x Wide Spool
(2) 3x3 Wye Lock Beam
(4) 2x2 Center Offset Round Lock Beam
(2) 1x1 Left Corner Beam
(2) 1x1 Right Corner Beam
(4) 2x1 Left Corner Beam
(4) 2x1 Right Corner Beam
(2) 2x2 Left Corner Beam
(2) 2x2 Right Corner Beam
(2) 2x1 Extended Left Corner Beam
(2) 2x1 Extended Right Corner Beam
(2) 2x2 Extended Left Corner Beam
(2) 2x2 Extended Right Corner Beam
(8) Double 1x Wide, 1x1 Corner Connector
(8) Double 1x Wide, 2x1 Corner Connector
(6) Double 2x Wide, 1x2 Offset Corner Connector
(4) 1x Wide, 1x2 Corner Connector
(4) 2x Wide, 1x3 Offset Corner Connector
(4) 2x Wide, 30 Degree Right 1x2 Corner Connector
(4) 2x Wide, 30 Degree Left 1x2 Corner Connector
(8) Triple 1x Wide, 1x1 Corner Connector
(2) 1x2 Left Chassis Corner Connector
(2) 1x2 Right Chassis Corner Connector
(4) Quad 2x Wide, 2x2 Corner Connector
(12) Straight Standoff Connector
(10) 45 Degree Standoff Connector
(10) Truss Standoff Connector
(50) 0x1 Sheet Pin
(4) Cam Follower
(8) .5x Pitch Idler Pulley
(16) Ball Pin Bushing
(2) 1x3 Ball Socket Linkage
(2) 1x4 Ball Socket Linkage
(8) 1x4 Single-Ended Ball Socket Beam
(6) 2x Pitch Linear Motion Bracket
(4) 1x Pitch Linear Motion Bracket (Snap)
(8) 1x6 Continuous Linear Motion Rack Gear
(6) 12 Tooth Gear
(2) Worm Gear
(4) 24 Tooth Gear
(60) Chain Link
(4) 8 Tooth Sprocket
(8) 12t Hybrid Gear
(6) 24t Hybrid Gear
(2) 16 Tooth Ratchet
(3) Short Low-Profile Pawl
(2) 12x Pitch Rope
(1) 48x Pitch Rope
(2) Silicone Rubber Band #117B
(3) 2x30 mm Square Silicone Band
(6) 2x Pitch Motor Shaft
(6) 3x Pitch Motor Shaft
(6) 4x Pitch Motor Shaft
(1) 6x Pitch Flywheel (75g)
(160) Tank Tread Attachment Link
(1) 400mm Smart Cable (Bulk)
(1) 600mm Smart Cable (Bulk)
(8) Traction Link
(8) Short Intake Flap
(8) Medium Intake Flap
(8) Long Intake Flap
(6) 1x3 Beam
(6) 1x5 Beam
(4) 1x7 Beam
(4) 1x9 Beam
(2) 1x11 Beam
(2) 1x13 Beam
(4) 2x3 Beam
(4) 2x5 Beam
(4) 2x7 Beam
(2) 2x9 Beam
(4) 2x12 Beam
(4) 3x3 Right Angle Beam
(4) 2x11 Beam
(2) 6x2x2 Tee Beam
(8) 8x Pitch Standoff
(8) 1x6 (3-4-5 Triangle) Diagonal Offset Truss Beam
(6) 2x3 Delta Tee Beam
(6) 2x4x2 Double 60 Degree Beam
(4) 2x Wide, 3x3 60 Degree Angle Beam
(2) 4x3 1x Offset Trapezoid Beam
(6) 1x6 Linear Motion Beam
(6) 1x8 Linear Motion Beam
(4) 2x2 30 Degree Beam
(4) 2x2 45 Degree Angle Beam
(4) 2x6x2 30 Degree Jogged Beam
(2) 1x14 Beam
(2) 1x18 Beam
(2) 1x20 Beam
(2) 2x14 Beam
(6) 2x20 Beam
(2) 7x9x11 (6-8-10 Triangle) Truss Plate
(1) 2x Pitch Shock Absorber (Strong)
(1) 2x Pitch Shock Absorber (Weak)
(2) Small 2x Pitch Drop Cam
(2) Large 1x Pitch Drop Cam
(4) 2x Wide, Ø32.2mm Diameter Hub
(4) 2x Wide, 3.5x Pitch Diameter Balloon Tire (Trapezoid Offroad Tread)
(2) 2x Wide, 40 Tooth Rubber Tread
(1) 2x Wide, 56 Tooth Rubber Tread
(2) IQ Competiton Plastic Sheet (Small)
(2) IQ Competiton Plastic Sheet (Meduim)
(2) IQ Competiton Plastic Sheet (Large)
(2) Smart Motor
(1) 200mm Travel Omni-Directional Wheel (2-pack)
Kit Options
228-7597 - VEX IQ Education to Competition Upgrade Kit
8.2 lbs (3.7 kgs)
228-8657 - VEX IQ Education Kit (No Control System) (2nd gen)
7.5 lbs (3.4 kgs)
