Gussets
"Too much structure isn't a good thing." - Nobody Ever*
Gussets are used to connect pieces of metal that may not have been possible beforehand. Not only that, but they also serve as a great way to strengthen your robot's joints.
VEX V5 gussets come in a variety of shapes and angles, to ensure that your robot will be as structurally sound as possible when it hits the competition floor.
*VEX Robotics acknowledges that too much structure can sometimes be a detriment.
Six gussets in one pack

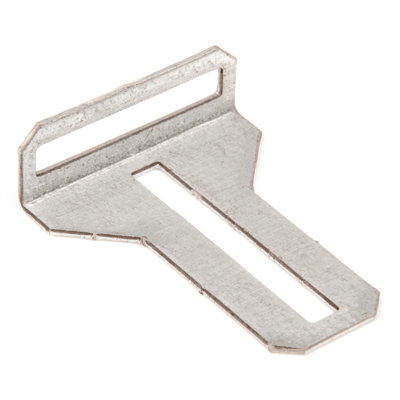

Angle Gussets are used for strengthening "T" joints. Slots on both main flanges allow for adjustment on two axis.
- Can also be used as a motor mount
- Made from cold rolled steel, 0.032" thick, zinc plated

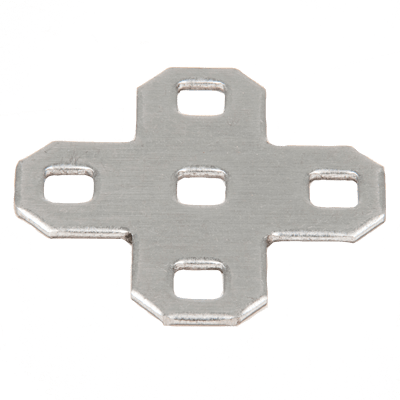

Plus Gussets are a generic gusset for strengthening flat joints. Can be easily cut into a "T" gusset or an "L" gusset.
- Made from cold rolled steel, 0.032" thick, zinc plated

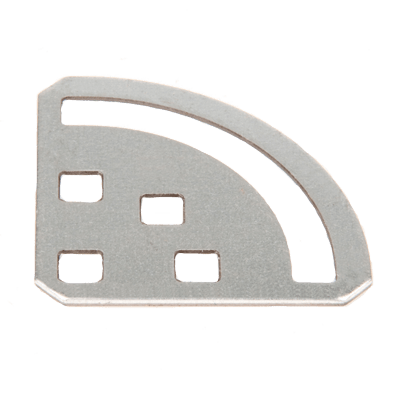

Pivot Gussets allow parts to be connected at any angle from 0 to 90 degrees. Can also be used as a corner gusset.
- Made from cold rolled steel, 0.032" thick, zinc plated

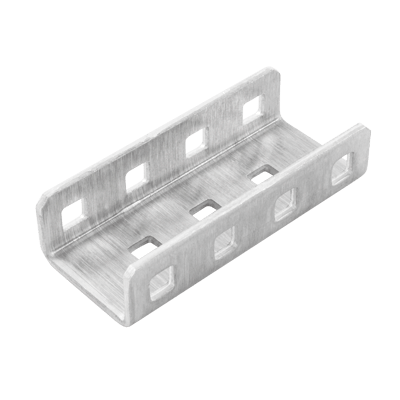

Use these C-Channel Couplers to attach two VEX EDR 1x2x1 C-Channels together in line to make longer structural pieces.

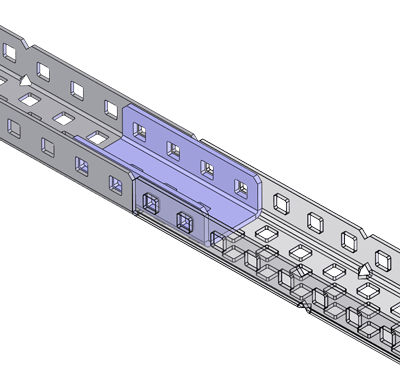

To install this gusset, simply insert it between the two pieces of C-Channel you are wanting to join as shown in the image to the right, and bolt together as normal.
- Allows for greater mounting versatility using VEX EDR Structural parts
- Includes (8) C-Channel Coupler Gussets

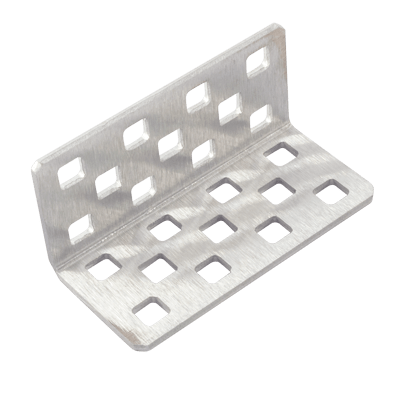

Use these Angle Couplers to attach two VEX EDR 2x2 Angles together in line to make longer structural pieces.

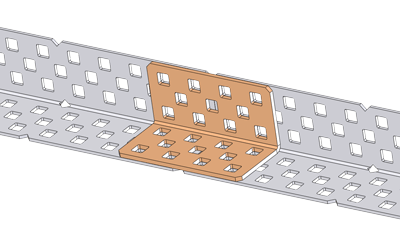

When installing this gusset, similar to the C-Channel Coupler Gusset, simply place it evenly between the pieces of metal you are joining as shown in the image to the right, and bolt together as normal.
- Allows for greater mounting versatility using VEX EDR Structural parts
- Includes (8) Angle Coupler Gussets

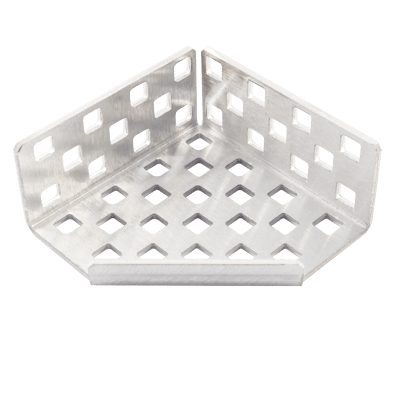

Use these Angle Corner Gussets to attach VEX EDR 2x2 Angles together at a 90-degree corner.

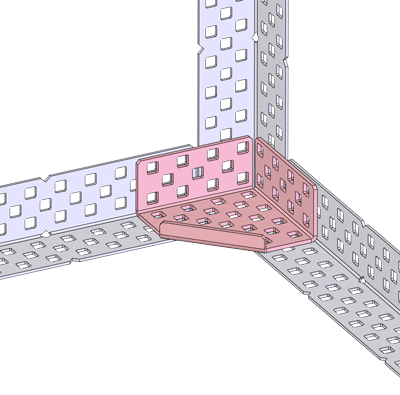

To install this gusset, line up the bases of the pieces of metal you are joining, and bolt them to the outside of the gusset as shown in the image to the right.
- Useful for making structural corners on cubes
- Includes (4) Angle Corner Gussets
Â
|

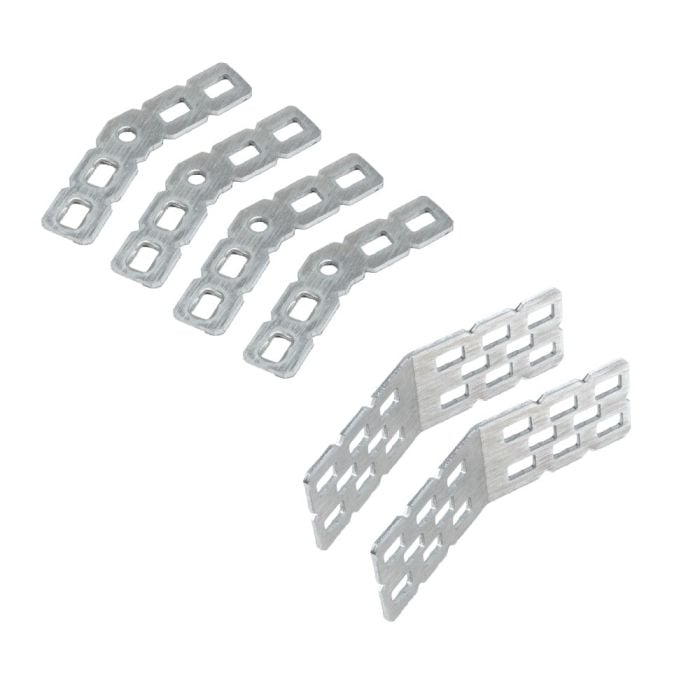

30 Degree Gusset Pack (276-7758)
45 Degree Gusset Pack (276-7759)
60 Degree Gusset Pack (276-7760)
90 Degree Gusset Pack (276-7761)
|
Gusset Pack (276-1110)
C-Channel Coupler Gusset (276-2575)
Angle Coupler Gusset (276-2578)
Angle Corner Gusset (276-2576)
|
Â
- 45-Degree Gusset, Gusset Pack - Cold Rolled Steel per ASTM A-1008 CS Type B
- 90-Degree Gusset, C-Channel Coupler, Angle Coupler, Angle Corner - Aluminum, 5052-H32
90-Degree Gusset, C-Channel Coupler, Angle Coupler, Angle Corner - Brushed Finish, no coating

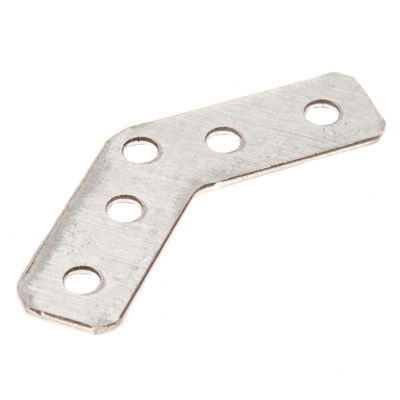

45-Degree Gusset - 0.046" Thick (1.17 mm)
90-Degree Gusset, C-Channel Coupler, Angle Coupler, Angle Corner - 0.063" Thick (1.6 mm)
- 30 Degree Flat Gusset - 0.010 lbs (4.54 g)
- 30 Degree Bent Gusset - 0.010 lbs (4.54 g)
- 45 Degree Flat Gusset - 0.010 lbs (4.54 g)
- 45 Degree Bent Gusset - 0.010 lbs (4.54 g)
- 60 Degree Flat Gusset - 0.010 lbs (4.54 g)
- 60 Degree Bent Gusset - 0.010 lbs (4.54 g)
- 90 Degree Flat Gusset - 0.010 lbs (4.54 g)
- 90 Degree Bent Gusset - 0.010 lbs (4.54 g)

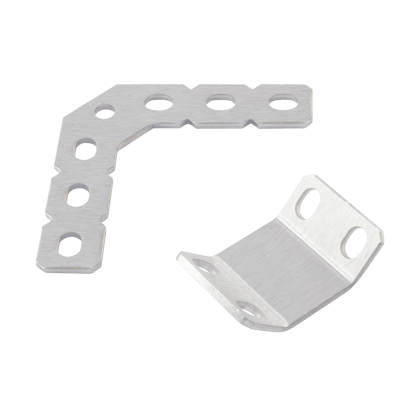

- 90-Degree Gusset (276-2577) - (Plate - 0.006 lbs (2.72 g)), (Angle - 0.010 lbs (4.54 g))
- Gusset Pack - (Angle Gusset - 0.011 lbs (5 g)) (Plus Gusset - 0.011 lbs (5 g)) (Pivot Gusset - 0.011 lbs (5 g))
- Channel Coupler Gusset - 0.018 lbs (8.16 g)
- Angle Coupler Gusset - 0.016 lbs (7.26 g)
- Angle Corner Gusset - 0.032 lbs (14.51 g)
-
CAD
-
Angle Coupler Gusset (276-2578)
-
C-Channel Coupler Gusset (276-2575)
-
60 Degree Flat Gusset (276-7760-001)
-
45 Degree Flat Gusset (276-7759-001)
-
90 Degree Flat Gusset (276-7761-001)
-
Angle Corner Gusset (276-2576)
-
45 Degree Gusset (275-1186)
-
90 Degree Bent Gusset (276-7761-002)
-
45 Degree Bent Gusset (276-7759-002)
-
90-Degree Gusset Set - Plate (276-2577)
-
90-Degree Gusset Set - Angle (276-2577)
-
30 Degree Flat Gusset (276-7758-001)
-
60 Degree Bent Gusset (276-7760-002)
-
30 Degree Bent Gusset (276-7758-002)
-
Gusset Pack
-
Gusset Pack - Pivot (276-1110)
-
Gusset Pack - Angle (276-1110)
-
Gusset Pack - Plus (276-1110)
- Download All Files
