Planetary Gear & XL Turntable Pack
As low as
$0.00
In stock
Works with
products and accessories.
VIQRC
legal.

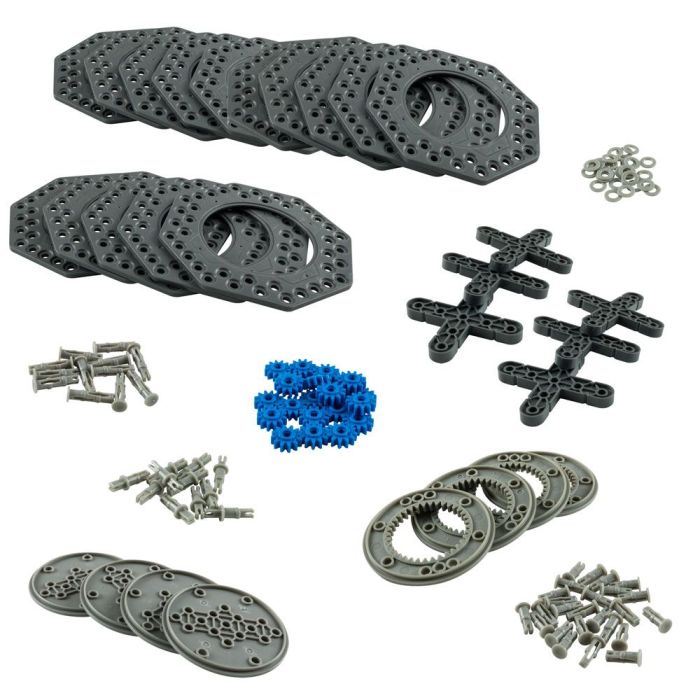

The Planetary Gear & XL Turntable pack provides two options for low friction, high load rotational joints. These are especially well suited for rotational joints with lots of side load - this kit makes it easy to build a turret on your robot!
- (20) 0x2 Idler Pins
- (10) 0x3 Idler Pins
- (10) 1x2 Idler Pins
- (20) Washers
- (6) 3x3 Plus Gusset Beams
- (12) XL Turntable Outer Housings
- (4) XL Turntable Plain Bushings
- (4) XL Turntable 36 Tooth Ring Gear Bushings
- (20) 12 Tooth Gears
- (20) 0x2 Idler Pin (228-2500-084)
- (10) 0x3 Idler Pin (228-2500-097)
- (10) 1x2 Idler Pin (228-2500-098)
- (20) Washer (228-2500-112)
- (6) 3x3 Plus Gusset Beam (228-2500-156)
- (12) XL Turntable Outer Housing (228-2500-199)
- (4) XL Turntable Plain Bushing (228-2500-200)
- (4) XL Turntable 36 Tooth Ring Gear Bushing (228-2500-202)
- (20) 12 Tooth Gear (228-2500-213)
- ABS Plastic
-
CAD
-
XL Turntable Outer Housing (228-2500-199)
-
XL Turntable 36 Tooth Ring Gear Bushing (228-2500-202)
-
3x3 Plus Gusset Beam (228-2500-156)
-
XL Turntable Plain Bushing (228-2500-200)
-
12 Tooth Gear (228-2500-213)
-
VEX IQ Pins
-
0x2 Idler Pin (228-2500-084)
-
0x3 Idler Pin (228-2500-097)
-
1x2 Idler Pin (228-2500-098)
-
VEX IQ Hardware
-
Washer (228-2500-112)
- Download All Files
