Plates (2-sizes)

More Views

Plates (2-sizes)

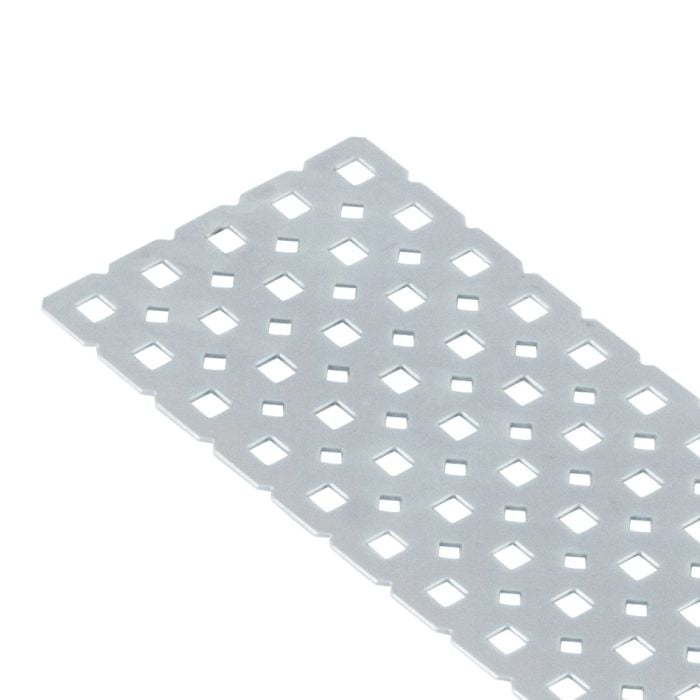

Plate with holes on 0.500" increments and 1/8" diamonds in between. Can be cut on 0.500" increments.

  • Available in two sizes.
  • Made from cold rolled steel, 0.046" thick, zinc plated.

Availability: In stock

OR
Product Name Availability Price Qty
Plate 15x5 (2-pack)
275-2023

In Stock

$4.99
Plate 25x5 (4-pack)
275-1140

In Stock

$14.99
Kit Contents
  • (2) Plate 15 x 5 (275-2023)
  • (4) Plate 25 x 5 (275-1140)
Weight
  • Plate 15 x 5: 0.134 lbs
  • Plate 25 x 5: 0.327 lbs
Material Thickness
  • 0.046" (1.17 mm)
Material Finish
  • Zinc Plated
Material Type
  • Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength
Hole Size
  • 0.182 square (VEX standard)
CAD Files
Click the button next to a file to view it in your browser.
