Bearings
Want a smoother ride? Use Bearings to reduce friction and keep your mechanisms and wheels moving smoothly.
Bearing Flats mount directly on a piece of VEX V5 structure and supports a shaft which runs perpendicular and directly through the structure.
Low Profile Bearing Flats are similiar, but are a smaller profile. They can even fit inside C-Channels!
Pillow Block Bearings mount on a piece of structure and supports a shaft which is offset either above, below, or to the side of the structure. Lock Bars allow any VEX V5 component to be “locked” to a shaft so that it will spin with the shaft.
- Pillow Block Bearings mount on a piece of structure to support a shaft
- Lock Bars allow VEX V5 components to be "locked" to a shaft
- These items are not sold separately
Shaft Collar Retainers contain a pocket to retain shaft collars. Compatible with Shaft Collar (16-pack) (276-2010), Star Drive Shaft Collar (16-pack) (276-6103), and Rubber Shaft Collar (30-Pack) (228-3510)!

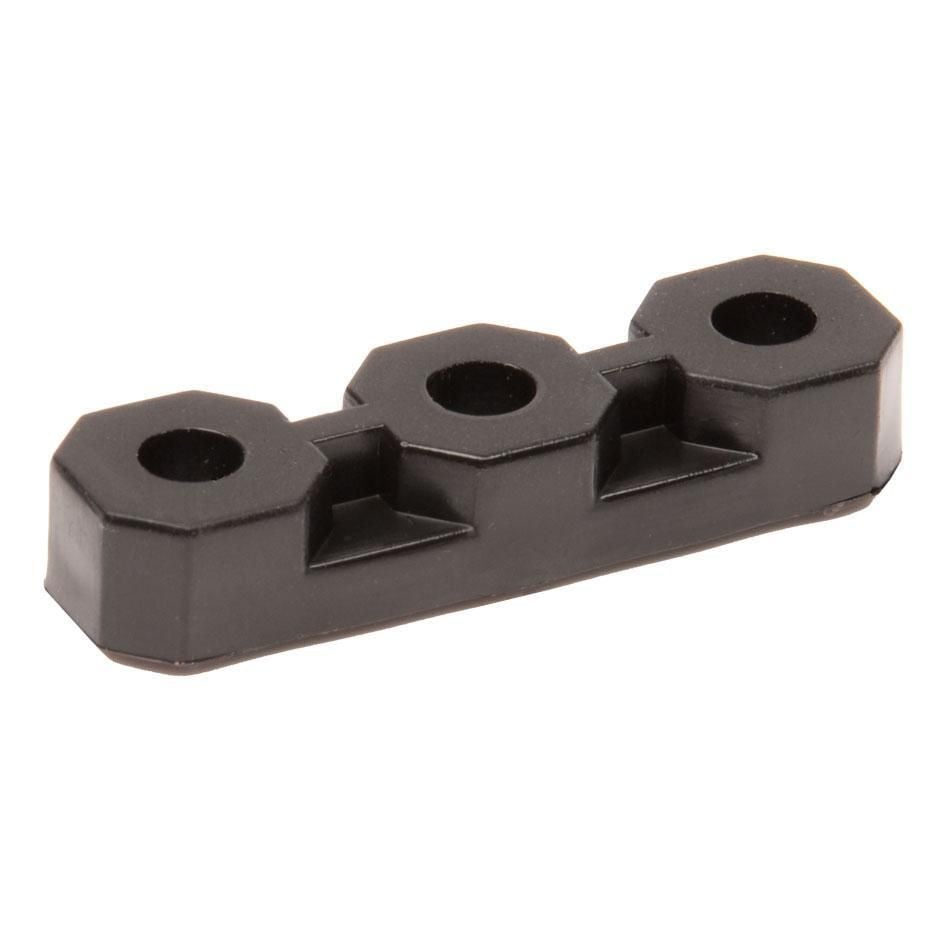

Bearing Flats [10-pack] (276-1209)
- (10) Bearing Flats

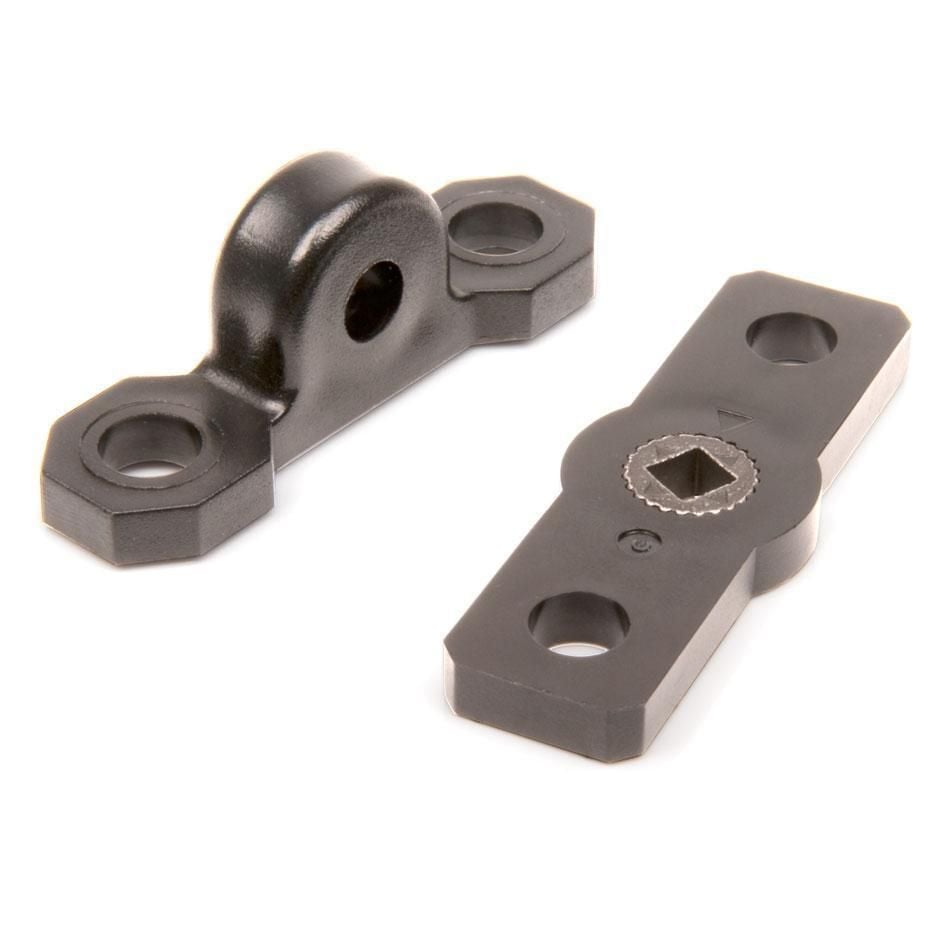

Pillow Block Bearing & Lock Bar Pack (276-2016)
- (6) Bearing Blocks
- (4) Lock Bar

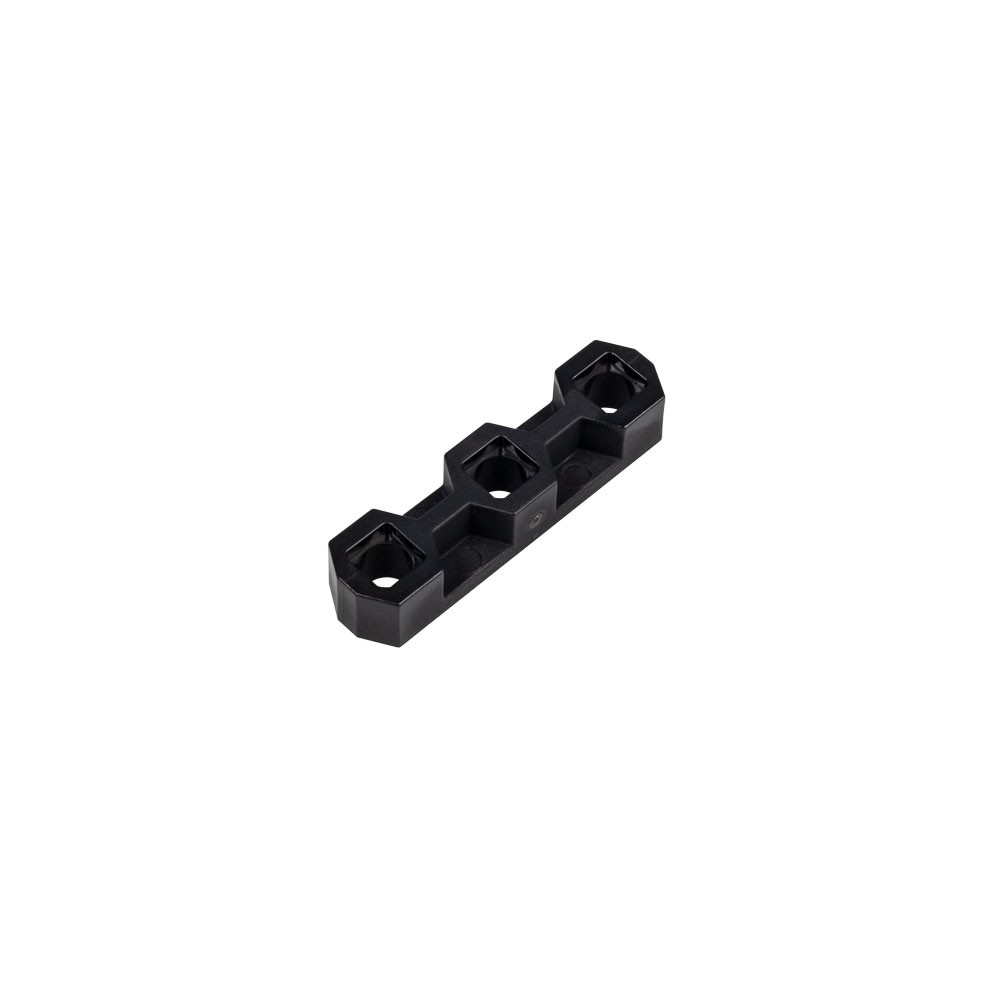

Low Profile Bearing Flat (276-8023)
- (10) Low Profile Bearing Flats

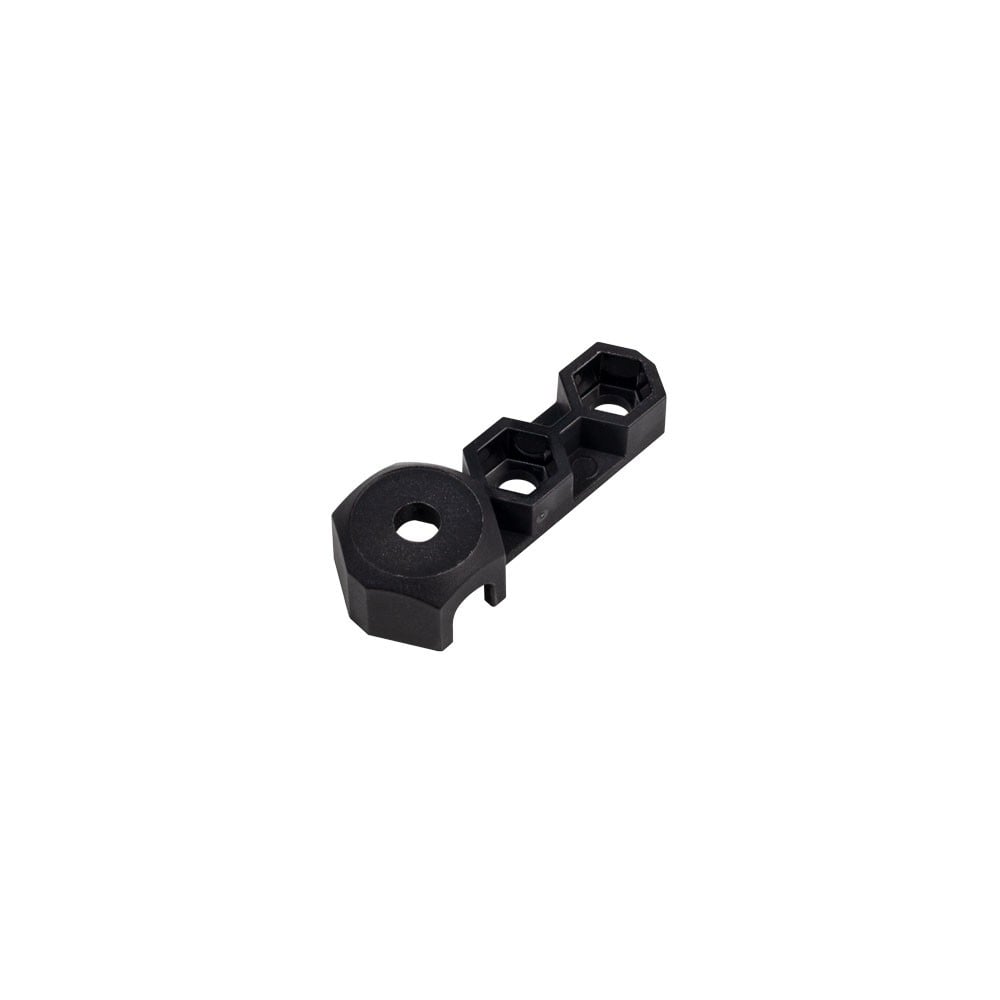

Shaft Collar Retainer with Bearing Flat (276-8024)
- (10) Shaft Collar Retainer with Bearing Flat (10-pack)
Click the button next to a file to view it in your browser.
Bearing
- Compatible with VEX V5 Shafts (Square bars) 0.125" (3.175mm)
