Shaft Collars
Shaft Collars lock to drive shafts, keeping wheels and gears from sliding along the shaft. Collars fit around Drive Shafts and can be fastened in place using a hex or star drive set screw.
Clamping Shaft Collars use a standard hex or star drive V5 screw and nut to maintain a tight lock without scratching or damaging the shaft.
Rubber Shaft Collars easily slide onto shafts. Friction between the rubber collar and steel shaft keeps wheels and gears from sliding off.
Note:Â All shaft collars on this page are for use with VEX 0.125" shafts. High Strength Shaft Collars for use with 0.25" shafts can be found here >

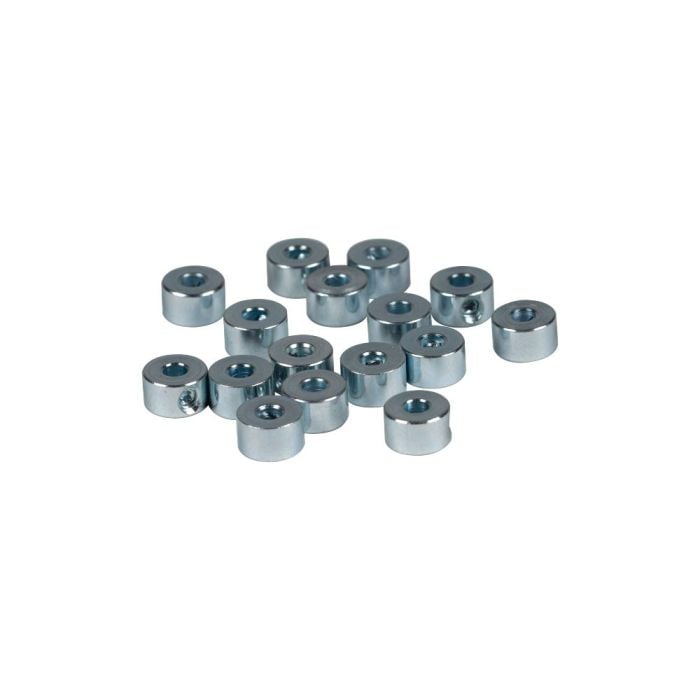

Star Drive Shaft Collar [16-pack] (276-6103)
- (16) Shaft Collars with Star Drive Set Screws
Star Drive Clamping Shaft Collar [10-Pack] (276-6101)
- (10) Clamping Shaft Collar
- (10) #8-32 x 0.5" Star Drive Screw
- (10) #8-32 Nylock Nut
Rubber Shaft Collar [30-Pack] (228-3510)
- (30) Rubber Slide On Shaft Collars (228-2500-143)
#8-32 x 0.125" Star Drive Set Screw [32-pack] (276-6098)
- (32) Replacement Star Drive Shaft Collar Set Screws
- Star Drive Clamping Shaft Collar (276-6101): Plastic
- Star Drive Shaft Collar (276-6103): Steel
Click the button next to a file to view it in your browser.
Star Drive Shaft Collar [16-pack] (276-6103)
- Compatible with VEX V5 Shafts (Square bars) 0.125" (3.175mm)
- Use with T8 Star Screwdriver
Clamping Shaft Collar [10-Pack] (276-6101)
- Compatible with VEX V5 Shafts (Square bars) 0.125" (3.175mm)
- Use with #8-32 Hex Screwdriver
Rubber Shaft Collar [30-Pack] (228-3510)
- Compatible with VEX V5 Shafts (Square bars) 0.125" (3.175mm)
#8-32 x 0.125" Star Drive Set Screw [32-pack] (276-6098)
- Compatible with VEX V5 Shafts (Square bars) 0.125" (3.175mm)
- Use with T8 Star Screwdriver
