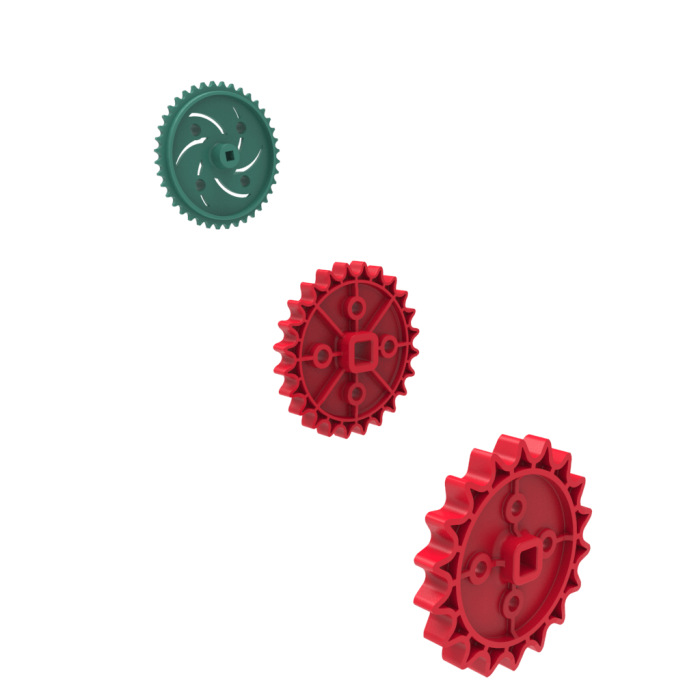

main product photo

Sprockets

As low as $0.00
In stock
Works with
products and accessories.
V5RC, VURC, VAIRC legal.

Sprockets come in a variety of sizes for different ratio possibilities. Each chain link is also a master link, which allows for quick and painless substitution. The standard Sprocket & Chain Kit (3P) is designed to carry moderate loads.

6P Sprockets were designed to be smaller in diameter than the pre-existing High Strength Sprockets, allowing for the construction of smaller, more compact mechanisms.

High Strength Sprockets and Chain (9P) allow for higher loads to be transmitted across long distances. The Sprockets come in five different sizes, allowing for numerous ratios to best suit your needs. The High Strength and Sprockets are also capable of lifting up to 50 pounds, so make sure to use them on your heavy lifting mechanisms!

* some product options are temporarily out of stock
3P
6P
9P
View Cart / Quote
V5 Sprockets Shareable Icon
Get shareable link
V5 Sprockets Hint Icon
Add to Wish List
Sprocket Size Type Product SKU Configure
3P Kit Sprocket & Chain Kit 276-2166 Select
6P Sprockets 8T 6P Sprocket (8-Pack) 276-8030 Select
16T 6P Sprocket (8-Pack) 276-8328 Select
24T 6P Sprocket (8-Pack) 276-8329 Select
32T 6P Sprocket (4-Pack) 276-8330 Select
40T 6P Sprocket (4-Pack) 276-8331 Select
Chain Chain Add-On Pack 228-4983 Select
9P Sprockets 6T HS Sprocket (8-Pack) 276-3876 Select
12T HS Sprocket (4-Pack) 276-3877 Select
18T HS Sprocket (4-Pack) 276-3878 Select
24T HS Sprocket (4-Pack) 276-3879 Select
30T HS Sprocket (4-Pack) 276-3880 Select
Chain High Strength Conveyor Chain 276-7141 Select
High Strength Chain Attachment Link Kit 276-7578 Select
Additional High Strength Chain 276-2172 Select
3P Sprockets 6P Sprockets 9P Sprockets

Sprocket & Chain Kit (276-2166)

  • (2) 10T Sprockets (.526" diameter)
  • (4) 15T Sprockets (.75" diameter)
  • (4) 24T Sprockets (1.18" diameter)
  • (2) 40T Sprockets (1.93" diameter)
  • (2) 48T Sprockets (2.3" diameter)
  • (326) Chain Links = 48" (1,219 mm) of chain

8T, 16T & 24T Sprockets

  • (8) of the selected size sprocket
  • High Strength Shaft Adapters


32T & 40T Sprockets

  • (4) of the selected size sprocket
  • High Strength Shaft Adapters


Chain

  • (200) Chain Links

High Strength Conveyor Chain (276-7141)

  • (60) High Strength Conveyor Chain Links

High Strength Sprocket Packs

  • (8) 6T High Strength Sprocket (276-3876)
  • (4) 12T High Strength Sprocket (276-3877)
  • (4) 18T High Strength Sprocket (276-3878)
  • (4) 24T High Strength Sprocket (276-3879)
  • (4) 30T High Strength Sprocket (276-3880)

Additional High Strength Chain (276-2172)

  • (140) High Strength Chain Links
  • (20) Chain Attachment Links


High Strength Chain Attachment Link Kit (276-7578)

  • (60) High Strength Chain Attachment Links

8T Sprocket (6P)

  • SMF 5040 Steel

All other Sprockets & Chain

  • Acetal



3P Sprockets   9P Sprockets
  • Chain Links Weight - 0.008 lbs/ft (3.63 grams/ft)
    1 ft = 80 links

  • High Strength Chain - 0.032 lbs/ft (14.5 grams)
  • Attachment Links - 0.094 lbs/ft (42.6 grams)

    Note: 1 ft = 30 links
