Wheels
Defense may not always win championships, but being able to move does. Put some power on the floor with our large variety of wheel options available for builders.

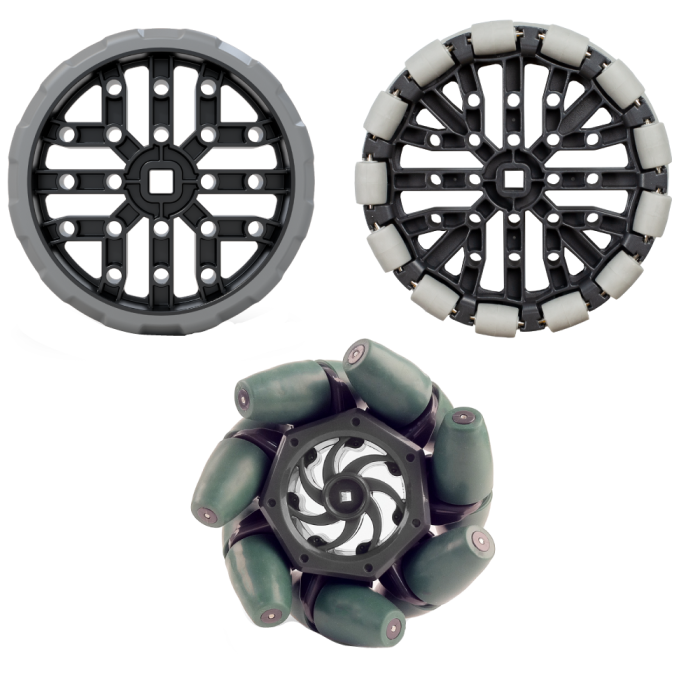

Omni-Directional or Mecanum Wheels are great for quick, lateral movements. If you need more grip, Traction Wheels offer great pushing ability and are designed for optimal grip on soft surfaces like the foam tiles used in the VEX Robotics Competition.
- Offered in multiple sizes
- Wheel diversity allows for numerous applications
Wheel Type | Wheel Size | Wheel | SKU | Configure |
---|---|---|---|---|
Omni Directional Wheels | 2.75" | 2.75" Omni-Directional Wheel - Double Roller (2-pack) | 276-1902 | Select |
2.75" (220mm Travel) Omni-Directional Anti-Static Wheel (2-Pack) | 276-8106 | Select | ||
3.25" | 3.25" Omni-Directional Wheel (4-Pack) | 276-3526 | Select | |
3.25" (260mm Travel) Omni-Directional Anti-Static Wheel (2-Pack) | 276-8026 | Select | ||
4" | 4" Omni-Directional Wheel (2-pack) | 276-2185 | Select | |
4" (320mm Travel) Omni-Directional Anti-Static Wheel (2-Pack) | 276-8107 | Select | ||
Traction Wheels | 2.75" | 2.75" Wheel (4-pack) | 276-1496 | Select |
2.75" (220mm Travel) Anti-Static Wheel (2-Pack) | 276-8098 | Select | ||
3.25" | 3.25" Traction Wheel (4-Pack) | 276-3525 | Select | |
3.25" (260mm Travel) Anti-Static Wheel (2-Pack) | 276-7771 | Select | ||
4" | 4" Wheel (4-pack) | 276-1497 | Select | |
4" (320mm Travel) Anti-Static Wheel (2-Pack) | 276-8103 | Select | ||
5" | 5" Wheel (4-pack) | 276-1498 | Discontinued | |
Mecanum Wheels | 2" | 2" Mecanum Wheel (4-Pack) | 217-7400 | Select |
4" | 4" Mecanum Wheel | 276-1447 | Select | |
Other | N/A | Wheel Kit | 276-2164 | Select |
N/A | 4" High Traction Tire | 276-1489 | Select | |
N/A | 6" Wheel Leg | 276-2218 | Discontinued |
Â
Wheel Kit (276-2164)
2.75" Double-Roller Omni-Directional Wheels (276-1902)
2.75" (220mm Travel) Omni-Directional Anti-Static Wheel (2-Pack) (276-8106)
3.25" Omni-Directional Wheels (276-3526)
3.25" Omni-Directional Anti-Static Wheels (276-8026)
4" Omni-Directional Wheels (276-2185)
4" Omni-Directional Anti-Static Wheels (276-8107)
2.75" Diameter Wheels (276-1496)
2.75" Anti-Static Wheels (2-Pack) (276-8098)
|
3.25" Traction Wheel (276-3525)
3.25" Anti-Static Wheels (2-Pack) (276-8098)
4" Diameter Wheels (276-1497)
4" Anti-Static Wheels (2-Pack) (276-8098)
5" Diameter Wheels (276-1498)
4" High Traction Tire (276-1489)
2" Mecanum Wheel (217-7400)
4" Mecanum Wheel (276-1447)
Plastic 1/2" VersaHex Adapters v2 (1/4" Square Bore) (48Â Pack) [217-8004]
6" Wheel Legs (276-2218)
|
Omni-Directional Wheels
- 2.75" Double-Roller Omni-Directional Wheels: 0.154 lbs (70 grams)
- 3.25" Omni-Directional Wheels: 0.132 lbs (60 grams)
- 4" Omni-Directional Wheels: 0.232 lbs (105 grams)
Traction Wheels
- 2.75" Wheels: 0.110 lbs (50 grams)
- 2.75" Anti-Static Wheels: 0.096 lbs (44 grams)
- 3.25" Traction Wheels: 0.110 lbs (50 grams)
- 3.25" Anti-Static Wheels: .128 lbs (58 grams)
- 4" Wheels: 0.198 lbs (90 grams)
- 4" Anti-Static Wheels: 0.164 lbs (74 grams)
- 5" Wheels: 0.352 lbs (160 grams)
Traction Tires
- 4" High Traction Tires: 0.077 lbs (35 grams)
Mecanum Wheels
- 2" Mecanum Wheels: 0.122lbs (55.34 grams)
- 4" Mecanum Wheels: 0.41 lbs (186 grams)
Wheel Legs
- 6" Wheel Leg: 0.074 lbs (34 grams)
All listed weights are actual weights of one item (no packaging)
Â
-
Traction Tires
-
4" High Traction Tire (276-1489)
-
Omni-Directional Wheels
-
2.75" Omni-Directional Wheel - Double Roller (276-1902)
-
3.25" Omni-Directional Wheel (276-3526)
-
2.75" (220mm Travel) Omni-Directional Anti-Static Wheel (276-8106)
-
4" Omni-Directional Wheel (276-2185)
-
3.25" (260mm Travel) Omni-Directional Anti-Static Wheel (276-8026)
-
4" (320mm Travel) Omni-Directional Anti-Static Wheel (276-8107)
-
Traction Wheels
-
3.25" Traction Wheel (276-3525)
-
2.75" Wheel (276-1496)
-
4" Wheel (High Strength Bore) (276-1497-110)
-
5" Wheel (276-1498)
-
4" Wheel (276-1497)
-
2.75" (220mm Travel) Anti-Static Wheel (276-8098)
-
3.25" (260mm Travel) Anti-Static Wheel (276-7771)
-
4" (320mm Travel) Anti-Static Wheel (2-Pack) (276-8103)
-
Mecanum Wheels
-
4" Mecanum Wheel (276-1447)
-
Wheel Legs
-
6" Wheel Leg (276-2218)
-
Misc. Files
-
2" Mecanum Wheel- Left (217-7400)
-
2" Mecanum Wheel- Right (217-7400)
- Download All Files
Click the button next to a file to view it in your browser.
Omni-Directional Wheels
- 2.75" Double-Roller and 4" Omni-Directional Wheels are compatible with 0.125" square bar drive shafts
- 3.25" Omni-Directional Wheels are compatible with All VEX V5 shafts. (0.25" and 0.125" square bars)
Traction Wheels
- 2.75", 4" and 5" Traction Wheels are compatible with 0.125" square bar drive shafts.
- 3.25" Traction Wheels are compatible with All VEX V5 shafts. (0.25" and 0.125" square bars)
Traction Tires
- Use with 4" VEX wheels
Mecanum Wheels
- 2" Mecanum Wheels are compatible with High Strength (0.25") drive shafts, when also using VersaHex Adapters.
- 4" Mecanum Wheels are compatible with 0.125" (3.2mm) square bar drive shafts
Wheel Legs
- 6" Wheel Legs are compatible with 0.125"(3.2mm) square bar drive shafts.
