Advanced Gearbox Brackets

In stock

Works with

products and accessories.

V5RC, VURC, VAIRC legal.

These gearbox brackets provide support for several options of advanced motion. These parts allow advanced mechanical VEX V5 designers to create new ingenious mechanisms.

Create Linear Motion with the Rack Gears
Transfer Motion 90 degrees with Bevel Gears
Add a Differential to your Drivetrain
Get a high-reduction with the Worm Gears
Increase design possibilities for your robots

Note: The Rack Gearbox Bracket is not compatible with the current VEX V5 Linear Slide Pack (SKU 276-1926)

Grouped product items
	Product Name	SKU	Qty
	Bevel Gearbox Bracket (2-pack)
	$11.49 Add to Wish List	275-1189
	Rack Gearbox Bracket v2 (2-pack)
	$11.49 Add to Wish List	276-5771
	Worm Gearbox Bracket (2-pack)
	$14.99 Add to Wish List	275-1187

View Cart / Quote

Details

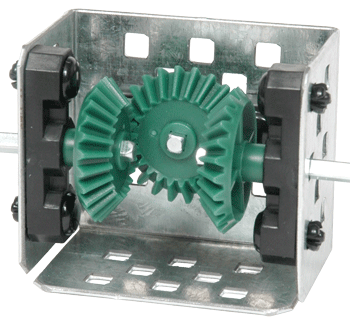

Use additional standard VEX EDR Motion Products (not included) to utilize this bracket with VEX EDR Bevel Gears. There are two Bevel Gear Brackets included in this kit. More information on the advantages of these advanced gears can be found in the VEX EDR Curriculum.

Designed for the VEX EDR Bevel Gears
Sold in a pack of 2 brackets

Metal only. Gears and bearings not included

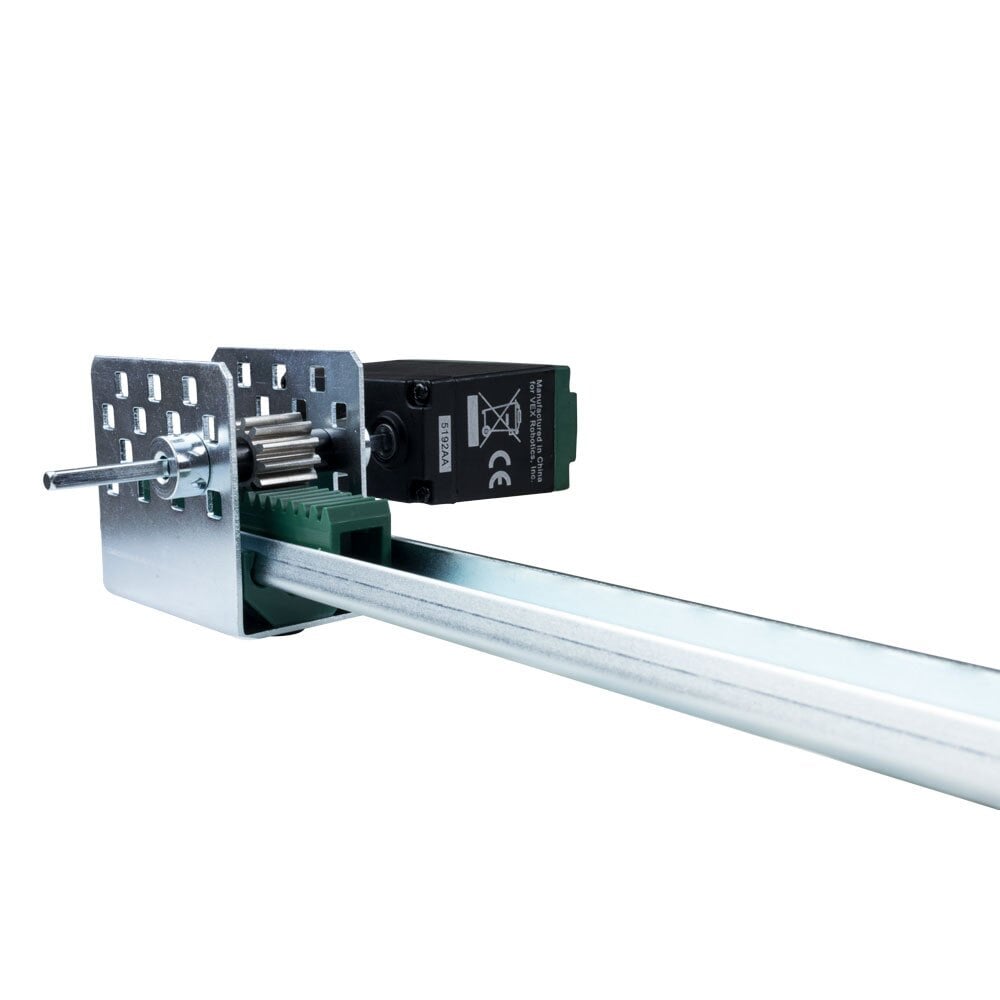

Attach this bracket to the Rack Gear v2, and drive it with a pinion gear to transfer motion linearly. More information on the advantages of these advanced gears can be found in the VEX EDR Curriculum.

Note: This product is compatible with the VEX EDR Linear Slide Pack (SKU 276-1926), and the Rack Gear v2 (276-4782)

Create linear motion
Sold in a pack of 2 brackets

Gears sold separately

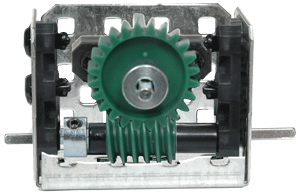

This Bracket is designed with the VEX EDR Worm Gear. This is the simplest way to mount and utilize the worm gears. More information on the advantages of these advanced gears can be found in the VEX EDR Curriculum.
