Gears

Gears

Gears are one of the primary sources of power transmission in VEX EDR. We offer a variety of both normal and high strength gears, that come in a multitude of shapes and sizes. Start with a simple project like building a gear reduction, and work your way up towards building more complex mechanism such as a differential for a drivetrain.

More information on gears and power transmission can be found in the VEX EDR Curriculum.

Availability: In stock

OR

Standard Gears

Product Name Availability Price Qty
Gear Kit
276-2169

In Stock

$12.99

High Strength Gears

Product Name Availability Price Qty
12T Metal Pinion (12-pack)
276-2251

In Stock

$19.99
36T High Strength Gear (8-pack)
276-5034

In Stock

$12.99
60T High Strength Gear (8-pack)
276-5035

In Stock

$14.99
84T High Strength Gear (4-Pack)
276-3438

In Stock

$12.99
High Strength Gear Kit
276-2250

In Stock

$19.99

Other

Product Name Availability Price Qty
Rack Gear (16-pack)
276-1957

Discontinued

$19.99

Rack Gear v2 (16-pack)
276-4782

In Stock

$19.99
Advanced Gear Kit
276-2184

Ships in 4 Weeks

$19.99
Description

Details

This Gear Kit contains additional gears so you will always have the right combination available to ensure you can achieve the desired balance of torque, speed, and direction.


To expand your inventing possibilities, the 60- and 84-tooth gears have extra mounting holes. These mounting holes can be used for attaching metal bars or parts to these gears when using them as part of a turntable system, or other similar designs.


This kit contains four sizes of VEX Spur Gears (12-, 36-, 60-, and 84-tooth gears). The 60- and 84-tooth gears have extra mounting holes for attaching metal bars or parts to these gears when using them as part of a turntable system or similar design.

  • Create robot transmissions, gearboxes, and gear reductions.
  • Vary the speed or torque of robot motion systems.
  • Increase design possibilities for your robots.

Build mechanisms capable of achieving higher torque or speed than ever before with High Strength Gears - lift heavier loads and survive bigger impacts with the additional gear ratio options provided by the largest high strength gear available.


  • Works with the VEX High Strength Gear Kit or any VEX spur gear
  • Double-thick face width and ribbing provide added strength
  • Metal Square Hosle Inserts prevent axles from "stripping"
  • Build gearboxes that resist high shock-loads
  • Bolt gears together for added strength

Now modified for 1/4" shaft, also includes inserts for .125" shaft. These metal 12-tooth spur gears are great for applications under high shock load or requiring high strength. Look for this update to begin rolling out in the next few months!

  • Double-thick face.
  • All metal gear for high strength.
  • Mates with standard VEX gears.

This High Strength Gear Kit provides several new gears with features to handle higher loads. Each of these gears has a wider face width; this means each tooth is wider so applied loads will be spread over a larger area.


The 12-tooth High Strength Gear is molded out of powdered metal. The 36-tooth and 60-tooth Gears have powdered metal inserts. These metallic components will protect the gear from high loads applied by a VEX axle.


  • High strength gears mate with all VEX spur gears.
  • Double-thick face width provides added tooth strength.
  • Metal Square Hole Inserts prevent axles from "stripping".
  • Use metal pinions for high strength where it counts.
  • Use the round-hole inserts to build free spinning idler gears.
  • Build gearboxes that resist high shock-loads.
  • Bolt Gears together for added strength.

Rack Gears can be used to turn rotary motion into linear motion.


  • Use any VEX spur gear as a pinion to drive these rack gears.
  • Stack multiple rack gears back to back for longer motions.
  • Combine these with a VEX linear slide and Rack Gear Bracket (sold separately) to create a simple linear actuator.
  • Each Rack Gear includes (3) 6-32 threaded inserts on their back face. Mount these similar to VEX motors or servos with 6-32 screws.
  • Discontinued. Available while supplies last



Now with a new design! The Rack Gear v2 is wider and thereby more compatible with VEX High Strength gears. v2 has also eliminated the brass inserts from the original design, and replaced them with molded-in nut pockets. Now you can use 8-32 screws!

This Advanced Gear Kit contains several gear types designed to help you build advanced mechanical systems.


The rack gear will mount on any VEX metal component and mesh with any VEX gear to create linear motion systems.


The worm gears allow users to create very high reduction gearing in a small package; these gears will also resist "back driving" which may be useful in some applications.


The kit comes with several bevel gears which allow designers to transfer motion "around corners"; you can change the axis of motion by 90 degrees. These bevel gears can also be used with the differential frame to build a differential. This can be utilized to create more efficient "car style" drivetrains.

  • Create Linear Motion with the Rack Gears.
  • Transfer Motion 90 degrees with Bevel Gears.
  • Add a Differential to your Drivetrain.
  • Get a high-reduction with the Worm Gears.
  • Increase design possibilities for your robots.
Kit Contents

Gear Kit (276-2169)

  • (4) 12T gears
  • (4) 36T gears
  • (4) 60T gears
  • (2) 84T gears

12T Metal Pinion (276-2251)

  • (12) 12T Metal Pinion (0.58 inch diameter)
  • (12) 12TPinion Gear Inserts

36T High Strength Gear Pack (276-5034)

  • (8) 36T High Strength Gear
  • (16) Square Gear Insert
  • (16) Free Spinning Insert

60T High Strength Gear Pack (276-5035)

  • (8) 60T High Strength Gear
  • (16) Square Gear Insert
  • (16) Free Spinning Insert

84T High Strength Gear Pack (276-3438)

  • (4) 84T High Strength Gear
  • (8) Square Gear Insert
  • (8) Free Spinning Insert

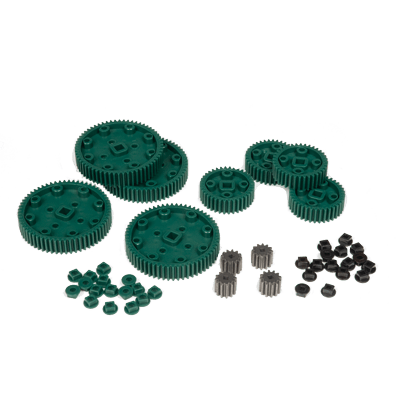

High Strength Gear Kit (276-2250)

  • (4) 12T High Strength Gear (0.58 inch diameter)
  • (4) 36T High Strength Gear (1.58 inch diameter)
  • (4) 60T High Strength Gear (2.58 inch diameter)
  • (16) High Strength Square Gear Insert
  • (16) Free Spinning Gear Insert

Rack Gear (276-1957)

  • (16) 19T Rack Gear

  • Rack Gear v2 (276-4872)

  • (16) 19T Rack Gear v2

  • Advanced Gear Kit (276-2184)

  • (8) 19T Rack Gear
  • (2) 12T Metal Pinion
  • (4) Worm Gears
  • (4) Worm Wheel
  • (1) Differential Frame
  • (7) 24T bevel Gear
  • (16) #6-32 x 1/4 inch Button Head Screws
  • Docs & Downloads
    Weight
    • 12T Metal Pinion (276-2251): 0.002 lbs (0.907 grams)
    • 36T High Strength Gear (276-5034): 0.012 lbs (5.44 grams)
    • 60T High Strength Gear (276-5035): 0.03 lbs (15 grams)
    • 84T High Strength Gear (276-3438): .08 lbs (35 grams)
    • Rack Gear (276-1957): 0.020 lbs (9.07 grams)

    All listed weights are actual weights of one item (no packaging)
    Material Type
    • Gear Kit (276-2169): Acetal
    • 12T Metal Pinion (276-2251): Steel
    • 36T High Strength Gear (276-5034): Acetal
    • 60T High Strength Gear (276-5035): Acetal
    • 84T High Strength Gear (276-3438): Acetal
    • Rack Gear (276-1957): Acetal
    • Rack Gear v2 (276-4782): Acetal
    • Advanced Gear Kit (276-2184): Acetal
    Compatibility
    • Gear Kit (276-2169): Compatible with all High Strength Gears and 12T Metal Pinions

    • 12T Metal Pinion (276-2251): Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
    • 36T High Strength Gear (276-5034): Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
    • 60T High Strength Gear (276-5035): Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
    • 84T High Strength Gear (276-3438): Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts
    • High Strength Gear Kit (276-2250): Compatible with all High Strength Gears, all VEX spur gears, and all VEX EDR Shafts

    • Rack Gear (276-1957): Compatible with all VEX Spur Gears
    • Rack Gear v2 (276-4782): Compatible with all VEX Spur Gears

    • Advanced Gear Kit (276-2184): Compatible with Drive Shafts and all VEX Spur Gears. Note: Worm Gears only mate with the Worm wheel, and 24T Bevel Gear only mate with themselves
    Other Info
    Gear Kit (276-2169)
    • Gear Type - Spur
    • Diametral Pitch - 24
    • Pressure Angle - 20 degrees
    • Face Width - 0.250" (6.35mm)

    12T Metal Pinion (276-2251)
    • Gear Type - Spur
    • Diametral Pitch - 24
    • Pressure Angle - 20 degrees
    • Face Width - 0.500" (12.7mm)
    • Pitch Diameter - 0.5" (12.7mm)

    36T High Strength Gear (276-5034)
    • Pitch Diameter - 1.5" (38.1mm)

    60T High Strength Gear (276-5035)
    • Pitch Diameter - 2.5" (63.5mm)
    84T High Strength Gear (276-3438)
    • Pitch Diameter - 3.5" (88.9mm)

    High Strength Gear Kit (276-2250)
    • Gear Type - Spur
    • Diametral Pitch - 24
    • Pressure Angle - 20 degrees
    • Face Width - 0.500" (12.7mm)

    Rack Gear (276-1957)
    • Length - 2.50" (63.5mm)

    Advanced Gear Kit (276-2184)
    • Differential Frame Requires (3) 24-tooth bevel gear to make a functional differential
    • Rack Gears can be combined continuously to create a longer slide
    • Worm Gear length - 0.75" (19.1mm)
    • Rack Gear length - 2.50" (63.5mm)
