Angles (3-sizes)

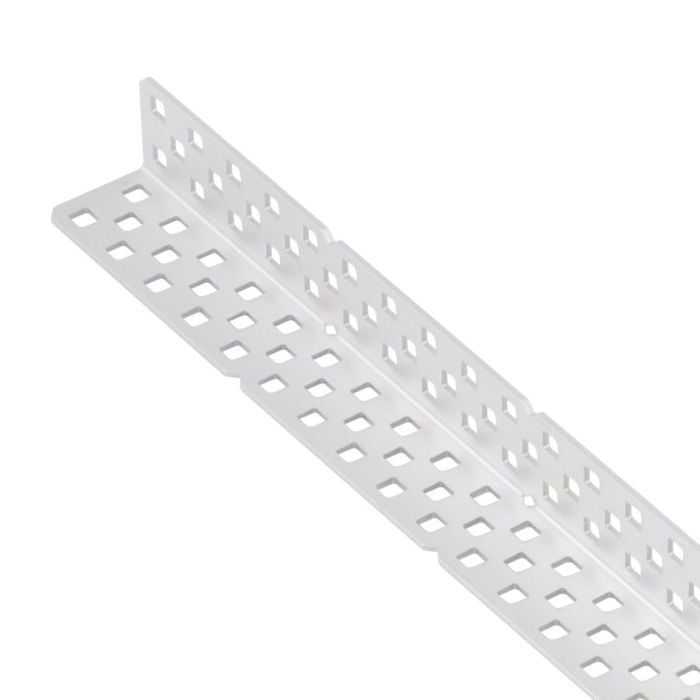

Angle 2x2x35 (275-1143)

More Views

Angles (3-sizes)

VEX angle without slots, typically used for structural framing.

  • Can be cut on 0.500" increments
  • Made from cold rolled steel, 0.046" thick, zinc plated
  • All items are (4) to a package

Availability: In stock

OR
Product Name Availability Price Qty
2x2x25 Steel Angle (4-pack)
275-1142

In Stock

$14.99
2x2x35 Steel Angle (4-pack)
275-1143

In Stock

$17.99
3x3x35 Steel Angle (4-pack)
275-1144

In Stock

$19.99
Add to Wishlist
Kit Contents
  • (4) 2x2x25 Steel Angle (275-1142)
  • (4) 2x2x35 Steel Angle (275-1143)
  • (4) 3x3x35 Steel Angle (275-1144)
Weight
  • 2x2x25 Steel Angle: 0.252 lbs
  • 2x2x35 Steel Angle: 0.353 lbs
  • 3x3x35 Steel Angle: 0.516 lbs
Material Thickness
  • 0.046" (1.17mm)
Material Finish
  • Zinc Plated
Material Type
  • Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)
Hole Size
  • 0.182 square (VEX standard)
CAD Files
Click the button next to a file to view it in your browser.
