Screws
The proverbial glue that holds your robot together. VEX V5 screws come in a multitude of lengths and two standard thread sizes, #6-32 and #8-32.
Locking screws have been coated with a thread locker to help keep them locked into place. A locking screw can be installed 10-15 times and still retain a firm lock.
Thumbscrews can be tightened/loosened by hand, speeding up robot assembly, and Shoulder Screws are perfect for pivots with minimal slop. Setscrews are used in Shaft Collars and U-Joints to clamp to a shaft.
There's nothing more frustrating than a stripped screw. With VEX V5 Star Drive Screws, this becomes a thing of the past. These grade 8 screws were designed to withstand a great amount of torque, which allows builders to truly "lock down" their mechanisms.
Note: Screw sizes are available in Hex Drive, or high-torque Star Drive.

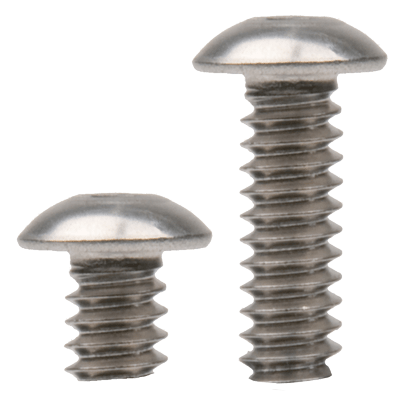

#6-32 Screw with Button Head. 5/64" VEX EDR Hex Key. High Strength Stainless Steel. Various lengths.
- Use for Motors and Servos only
- High Strength Stainless Steel

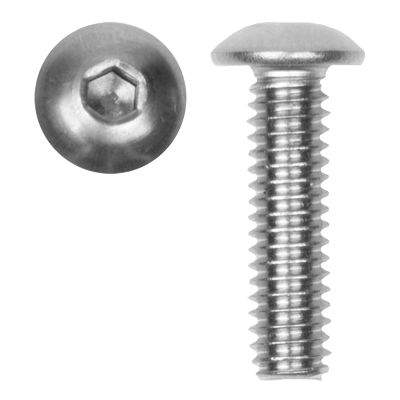

#8-32 Screw with Button Head. Standard 3/32" Hex Key. High Strength Stainless Steel. Various lengths.
- Standard Hex Key VEX EDR screw type
- High Strength Stainless Steel

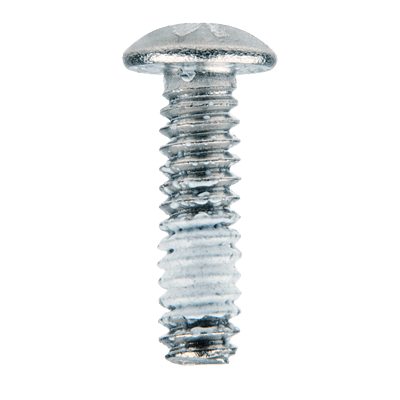

These #6-32 Locking Screws have thread locker applied on their threads; this thread locker will help hold the screw in position. A Locking Screw can be installed and removed approximately 10-15 times and still retain a firm lock each time.
- Use for Motors and Servos only
- High Strength Stainless Steel

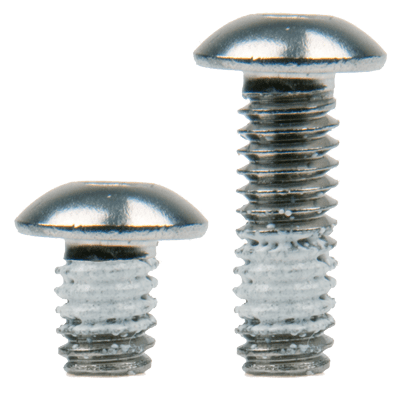

These #8-32 Locking Screws have thread locker applied on their threads; this thread locker will help hold the screw in position.
- Can be used approximately 10-15 times and still retain a firm lock
- Provide similar functionality to the VEX EDR Nylock Nuts
- Come in 2 sizes, 1/4 inch and 1/2 inch

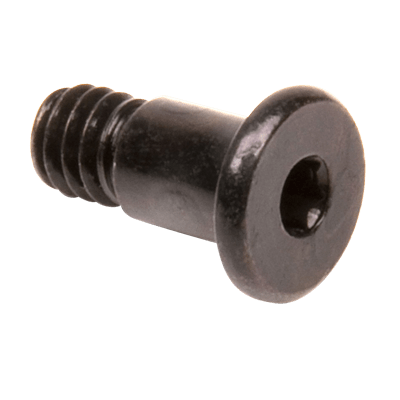

Who says a round peg can't fit in a square hole? Shoulder Screws make low-slop pivots in VEX EDR metal. Designed to fit snugly in a VEX EDR square hole. Allows several layers of metal to pivot.
- Perfect for pivots with minimal slop
- 0.176" dia x 0.20" long shoulder
- 3/32" Standard VEX Hex Key Drive

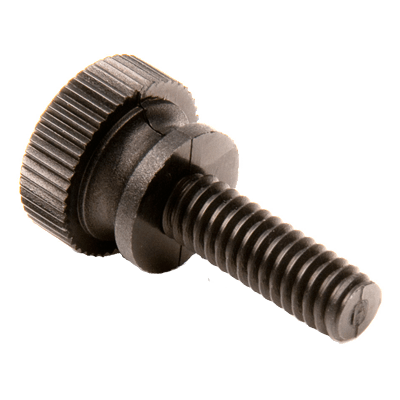

These plastic Thumbscrews are the same size (8-32) as standard VEX EDR screws, only they have a 0.428" diameter knurled head so they can be tightened or loosened by hand. Great for applications where a screw will be inserted or removed multiple times, such as robot access panels or battery mounts. Or if you're just afraid of tools.
- Speed up robot assembly
- 50 ea of the 1/2" Thumbscrews

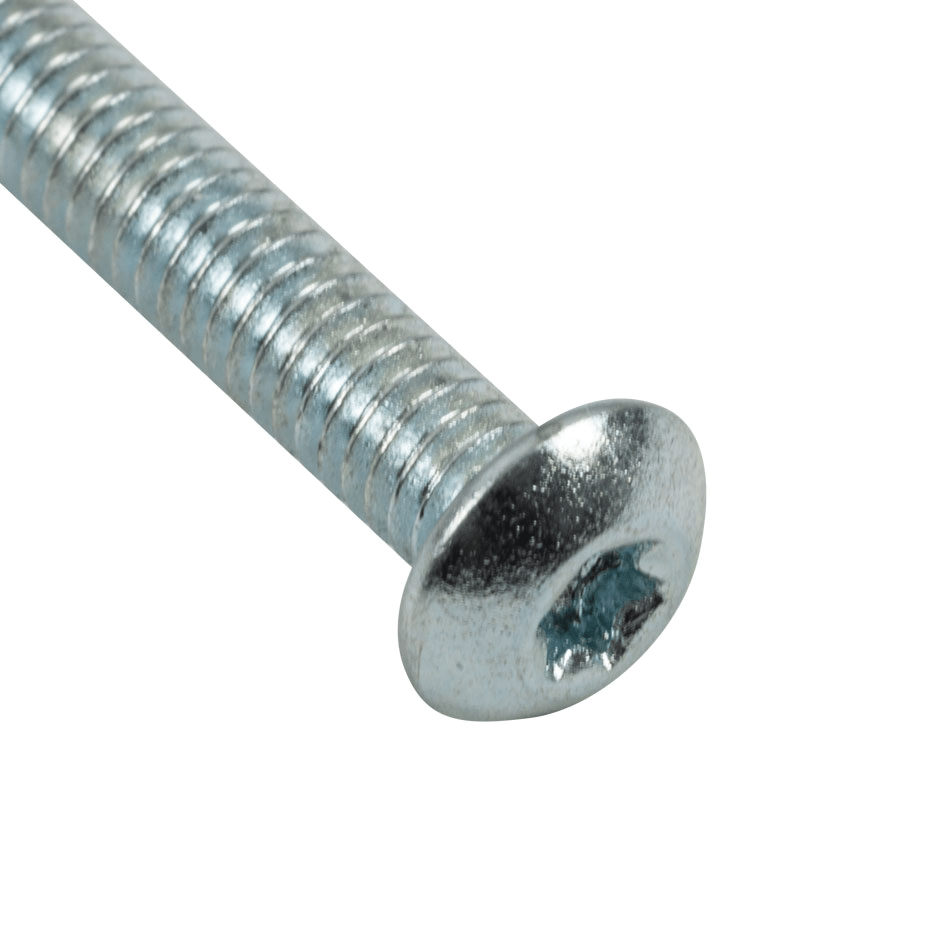

There's nothing more frustrating than a stripped screw. With VEX Star Drive Screws, this becomes a thing of the past. These screws were designed to withstand a great amount of torque, which allows builders to truly "lock down" their mechanisms. With 13 different types of screws, there is sure to be one to fit your needs.
- SAE Grade 8 Screws
- High Strength Stainless Steel
- 150,000 PSI Tensile Strength
- 8-32 Star Drive Screws use T15 Drivers
#6-32 Hex Drive Screws
(50) #6-32 x 1/4" Screw (275-0659)
(50) #6-32 x 1/2" Screw (275-1169)
(100) #6-32 x 1/2" Locking Screw (276-1958)
#8-32 Hex Drive Screws
(100) #8-32 x 1/4" Screw (275-1002)
(100) #8-32 x 3/8" Screw (275-1003)
(100) #8-32 x 1/2" Screw (275-1004)
(100) #8-32 x 5/8" Screw (275-1005)
(100) #8-32 x 3/4" Screw (275-1006)
(100) #8-32 x 7/8" Screw (275-1007)
(100) #8-32 x 1.000" Screw (275-1008)
(50) #8-32 x 1.250" Screw (275-1009)
(50) #8-32 x 1.500" Screw (275-1010)
(50) #8-32 x 1.750" Screw (275-1011)
(25) #8-32 x 2.000" Screw (275-1012)
(100) #8-32 x 1/4" Locking Screw (275-1260)
(100) #8-32 x 1/2" Locking Screw (275-1261)
Specialty Screws
(25) #8-32 Shoulder Screws (276-1408)
(50) 1/2" Thumbscrew (275-1485)
#8-32 Star Drive Screws (Uses T-15 Drivers)
(100) #8-32 x 1/4" Star Drive Screw (276-4990)
(100) #8-32 x 3/8" Star Drive Screw (276-4991)
(100) #8-32 x 1/2" Star Drive Screw (276-4992)
(100) #8-32 x 5/8" Star Drive Screw (276-4993)
(100) #8-32 x 3/4" Star Drive Screw (276-4994)
(100) #8-32 x 7/8" Star Drive Screw (276-4995)
(100) #8-32 x 1.000" Star Drive Screw (276-4996)
(50) #8-32 x 1.250" Star Drive Screw (276-4997)
(50) #8-32 x 1.500" Star Drive Screw (276-4998)
(50) #8-32 x 1.750" Star Drive Screw (276-4999)
(25) #8-32 x 2.000" Star Drive Screw (276-5004)
(100) #8-32 x 1/4" Locking Star Drive Screw (276-5006)
(100) #8-32 x 1/2" Locking Star Drive Screw (276-5007)
How to Design a Chassis
How to Remove a Stripped Screw
How to Decide on Which Fastener
How to Decide on a Manipulator
How to Decide on a Robot Claw
How to Decide on an Assembly to Throw Game Objects
How to Decide on a Robot Lift System
How to Decide on a Robot Arm
How to Decide on a Passive Manipulator
#6-32 Screws: High Strength Stainless Steel with no finish
#8-32 Screws: High Strength Stainless Steel with no finish
#6-32 Locking Screws: High Strength Stainless Steel with no finish
#8-32 Locking Screws: High Strength Stainless Steel with no finish
Shoulder Screws: High Strength Stainless Steel with no finish
Thumbscrews: Plastic
#8-32 Star Drive: High Strength Stainless Steel with no finish
Shoulder Screws: 0.0025 lbs (1.27g)
Thumbscrews: 0.002 lbs (0.907g)
Thread Type
#6-32 Screws: 6-32 UNC
#8-32 Screws: 8-32 UNC
#6-32 Locking Screws: 6-32 UNC
#8-32 Locking Screws: 8-32 UNC
Shoulder Screws: 8-32 UNC
Thumbscrews: 8-32 UNC
#8-32 Star Drive: 8-32 UNC
#6-32 Screws: Use the 5/64" Hex Key
#8-32 Screws: Use the 3/32" Hex Key
#6-32 Locking Screws: Use the 5/64" Hex Key
#8-32 Locking Screws: Use the 3/32" Hex Key
Shoulder Screws: Use the 3/32" Hex Key
#8-32 Star Drive:Use the T15 Star Drive Key
-
6-32 Hex Drive Screws
-
#6-32 x 1/4" Screw (275-0659)
-
#6-32 x 1/2" Screw (275-1169)
-
8-32 Hex Drive Screws
-
#8-32 x 3/4" Screw (275-1006)
-
#8-32 x 1.250" Screw (275-1009)
-
#8-32 x 5/8" Screw (275-1005)
-
#8-32 x 1.750" Screw (275-1011)
-
#8-32 x 1/4" Screw (275-1002)
-
#8-32 x 3/8" Screw (275-1003)
-
#8-32 x 1.500" Screw (275-1010)
-
#8-32 x 2.000" Screw (275-1012)
-
#8-32 x 7/8" Screw (275-1007)
-
#8-32 x 1.000" Screw (275-1008)
-
#8-32 x 1/2" Screw (275-1004)
-
Specialty Screws
-
1/2" Thumbscrew (275-1485)
-
#8-32 Shoulder Screws (276-1408)
-
8-32 Star Drive Screws
-
#8-32 x 1/2" Star Drive Screw (276-4992)
-
#8-32 x 1.250" Star Drive Screw (276-4997)
-
#8-32 x 3/8" Star Drive Screw (276-4991)
-
#8-32 x 1.000" Star Drive Screw (276-4996)
-
#8-32 x 5/8" Star Drive Screw (276-4993)
-
#8-32 x 2.000" Star Drive Screw (276-5004)
-
#8-32 x 1.750" Star Drive Screw (276-4999)
-
#8-32 x 3/4" Star Drive Screw (276-4994)
-
#8-32 x 1/4" Star Drive Screw (276-4990)
-
#8-32 x 7/8" Star Drive Screw (276-4995)
-
#8-32 x 1.500" Star Drive Screw (276-4998)
Download All Files
Click the button next to a file to view it in your browser.
#6-32 Screws: 393 Motors and Servos
#8-32 Screws: V5 Smart Motors & All standard VEX nuts and standoffs
#6-32 Locking Screws: 393 Motors and Servos
#8-32 Locking Screws: V5 Smart Motors & All standard VEX nuts and standoffs
Shoulder Screws: All standard VEX nuts and standoffs
Thumbscrews: All standard VEXÂ nuts and standoffs
#8-32 Star Drive Screws: V5 Smart Motors & All standard VEX nuts and standoffs
