High Strength Shafts & Hardware

High Strength Shafts & Hardware

High Strength Shaft Hardware functions similarly to standard ⅛” shaft hardware, just on a larger scale. Use the High Strength Shaft Bearing to allow shafts to turn smoothly, the High Strength Shaft Spacer Kit to position objects on a shaft while reducing friction, and the High Strength Clamping Collar to hold everything in place.

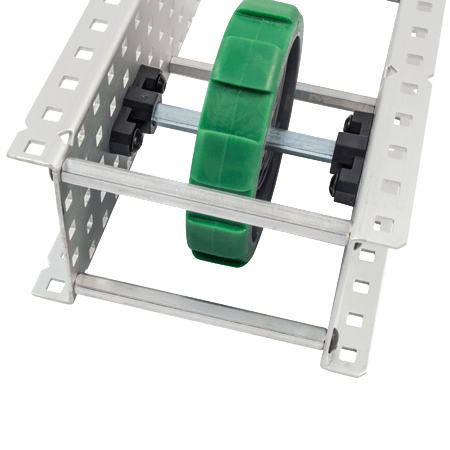

VEX EDR 2", 3", and 4" High Strength Shafts are actually designed about 1 mm shorter than their respective 2", 3", and 4" 8-32 Standoffs.

This means that if you use standoffs to hold together two pieces of metal, the High Strength Shaft can rest on High Strength Shaft Bearings attached to those two pieces without any cutting required.

NOTE: 1/4" High Strength Shafts can only be used with 1/4" accessories, including:

Availability: In stock

OR

High Strength Shaft

Product Name Availability Price Qty
2" High Strength Shaft (4-Pack)
276-3440

In Stock

$4.99
3" High Strength Shaft (4-Pack)
276-3522

In Stock

$4.99
4" High Strength Shaft (4-Pack)
276-3523

In Stock

$4.99
12" High Strength Shaft (4-Pack)
276-3524

In Stock

$14.99

High Strength Shaft Hardware

Product Name Availability Price Qty
High Strength Shaft Insert Kit
276-3881

In Stock

$9.99
High Strength Shaft Bearing (10-Pack)
276-3521

In Stock

$7.99
High Strength Shaft Spacer Kit
276-3441

In Stock

$9.99
High Strength Clamping Shaft Collar (10-Pack)
276-3520

In Stock

$9.99
Description

Details

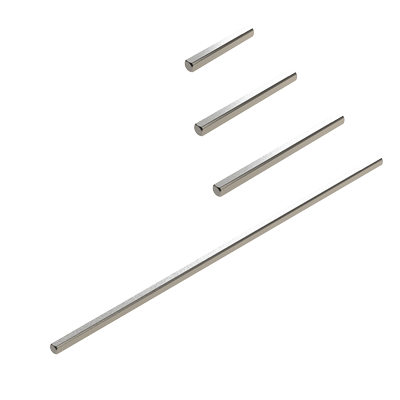

1/4" High Strength Shafts are tougher, stronger, and ready for even the most stressful robotic applications. These thicker shafts are more resistant to both twisting and bending fatigue, meaning that you should have no fear of designing high-torque gearboxes or high-impact drivetrains.

  • Works with all VEX EDR High Strength Gears
  • Works with the 3.25" Omni Wheel and 3.25" Traction Wheel
  • Four lengths: 2", 3", 4", 12"
  • Use the 12" to make your own custom length shafts

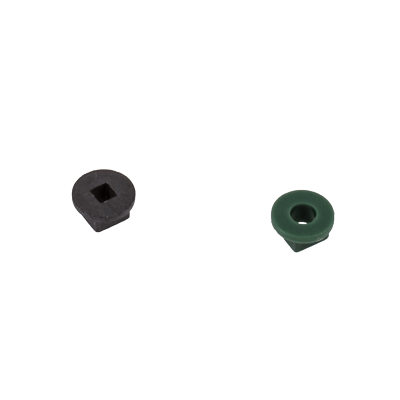

Removable High Strength Shaft Inserts for High Strength Gears and some wheels that allow for versatility in user application. Switch from a driven gear (square hole) to a free spinning one (round hole) in seconds.

  • Increased versatility during design and construction
  • Free spinning plastic and high strength metal inserts available
  • Fits VEX EDR drive shafts (0.125" square bars)

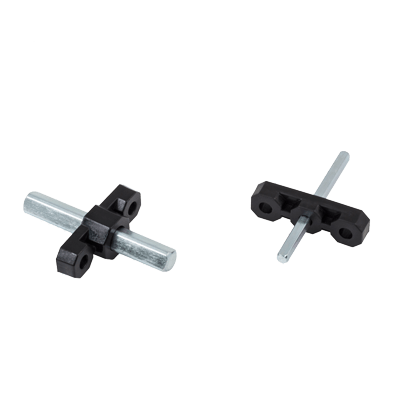

The High Strength Shaft Bearing is a larger version of the Bearing Flat that is designed for the 0.25" High Strength Shafts.



VEX EDR 2", 3", and 4" High Strength Shafts are actually designed about 1mm shorter than their respective 2", 3", and 4" #8-32 Standoffs.




This means that if you use standoffs to hold together two pieces of metal, the High Strength Shaft can rest on High Strength Shaft Bearings attached to those two pieces without any cutting required.

High Strength Spacers are designed for use on VEX EDR High Strength Shafts. Spacers are often used to properly position objects on a shaft or to reduce friction between rotating objects.

  • Four sizes available
  • Eliminate slop on shafts
  • Add space between metal parts

High Strength Shaft Collars are designed to fit onto High Strength Shafts. This clamping-style collar uses standard VEX EDR button head screws and nuts to maintain a tight lock without scratching or damaging the shaft.

  • Designed specifically for VEX EDR High Strength Shafts
  • Standard VEX EDR screws use a 3/32" allen key
  • Clamping collar is easily adjustable without damaging shaft
Kit Contents

High Strength Shaft (Sold Separately)

  • (4) 2" High Strength Shaft (276-3440)
  • (4) 3" High Strength Shaft (276-3522)
  • (4) 4" High Strength Shaft (276-3523)
  • (4) 12" High Strength Shaft (276-3524)

High Strength Shaft Insert Kit (276-3881)

  • (8) Plastic Shaft Inserts
  • (8) Metal Shaft Inserts

High Strength Shaft Bearing (276-3521)

  • (10) High Strength Shaft Bearings

High Strength Shaft Spacer Kit (276-3441)

  • (30) 1/16" High Strength Shaft Spacer
  • (20) 1/8" High Strength Shaft Spacer
  • (10) 1/4" High Strength Shaft Spacer
  • (10) 1/2" High Strength Shaft Spacer

High Strength Clamping Shaft Collar (276-3520)

  • (10) High Strength Clamping Shaft Collar
  • (10) #8-32 x 0.625" Button Head Screw
  • (10) #8-32 Nylock Nut
Weight
High Strength Shaft
  • 2" Shaft Weight - 0.03 lbs (13.6 grams)
  • 3" Shaft Weight - 0.05 lbs (22.7 grams)
  • 4" Shaft Weight - 0.07 lbs (31.8 grams)
  • 12" Shaft Weight - 0.20 lbs (90.9 grams)

All listed weights are actual weights of one item (no packaging)

Material Type
High Strength Shaft
  • 1018 Steel

High Strength Shaft Insert Kit (276-3881)
  • Free Spinning Insert - ABS Plastic
  • HS Insert - Powdered Metal

High Strength Shaft Bearing (276-3521)
  • Unreinforced Nylon
High Strength Shaft Spacer Kit (276-3441)
  • Acetal

High Strength Clamping Shaft Collar (276-3520)
  • Glass-Filled Nylon
Compatibility
High Strength Shaft
  • Compatible with HS Gears, HS Shaft Hardware, 3.25"
    Traction wheels, and 3.25" Omni-Directional Wheels

High Strength Shaft Insert Kit (276-3881)
  • Compatible with HS Gears, 3.25" Traction wheels, 3.25"
    Omni-Directional Wheels, and .125" Drive Shafts

High Strength Shaft Bearing (276-3521)
  • Compatible with High Strength Shafts (0.25" square bars)
High Strength Shaft Spacer Kit (276-3441)
  • Compatible with ONLY High Strength Shafts (0.25" square bars)

High Strength Clamping Shaft Collar (276-3520)
  • Compatible with ONLY High Strength Shafts (0.25" square bars)
Other Info
High Strength Shaft
  • Size - 0.25" (6.35mm) Square Bar

High Strength Shaft Spacer Kit (276-3441)
  • Diameter - 0.39" (10mm)
  • Hole - .25" square
  • Height - .0625", 0.125", 0.25", 0.5"
