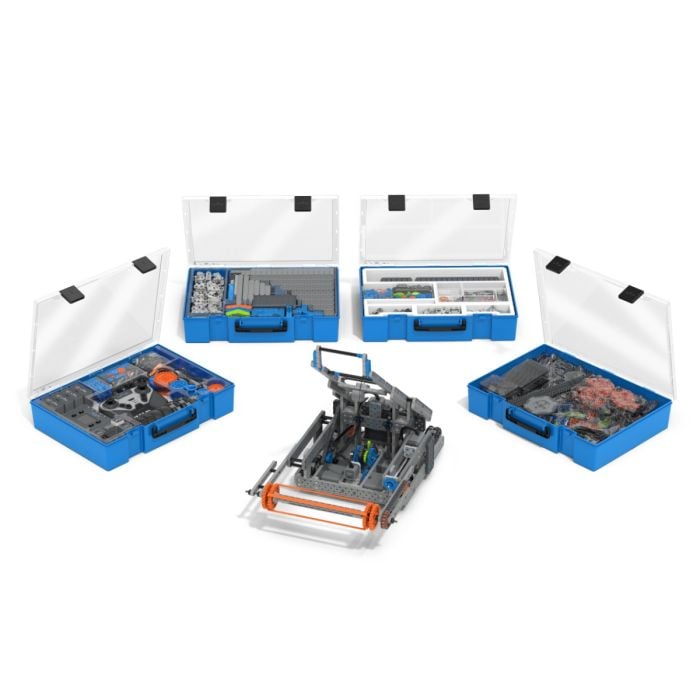

VEX IQ Competition Kit (2nd gen)

As low as $0.00

In stock

Works with

products and accessories.

VEX IQ legal.

Shop
All

Education
Kit

Classroom
Bundles

Competition
Kit

Single Competition Robot Kit

Learn about IQ >

Explore the VEX IQ Competition Kit of Parts >

VEX IQ Competition Kits

VEX IQ Competition Kit (2nd generation) + $729.99

SKU#: 228-7980

add Professional Development

VEX PD+ + $999

SKU#: 210-8353

Extended Warranty

Learn more | Terms and Conditions

^*Protection for select products only. Confirmation of coverage will pop up after you click "Add to Cart / Quote."

Qty

Total Price of Items Selected Above:

View Cart / Quote

Get shareable link

Resources

Kit Contents

Docs & Downloads

Posters

Weight

Battery Info

Electronics

(1) Robot Brain (2nd generation) (228-6480-000)
(6) Smart Motor (228-2560-000)
(1) Controller (2nd Generation) (228-6470-000)
(1) Robot Battery (Li-Ion, 2000 mAh) (228-7045-000)
(1) Touch LED (228-3010-000)
(1) Bumper Switch (228-2677-000)
(1) Optical Sensor (228-7082-000)
(1) Distance Sensor (228-7106-000)
(2) 600mm Cable (228-2780-004)
(2) 400mm Cable (228-2780-003)
(3) 300mm Cable (228-2780-002)
(4) 200mm Cable (228-2780-001)
(1) USB A-C Cable (228-6961-002)

Structure
(5) 1x2 Beam (228-2500-001)
(6) 1x3 Beam (228-2500-002)
(7) 1x4 Beam (228-2500-003)
(8) 1x5 Beam (228-2500-004)
(6) 1x6 Beam (228-2500-005)
(4) 1x7 Beam (228-2500-006)
(8) 1x8 Beam (228-2500-007)
(4) 1x9 Beam (228-2500-008)
(6) 1x10 Beam (228-2500-009)
(2) 1x11 Beam (228-2500-010)
(4) 1x12 Beam (228-2500-011)
(2) 1x13 Beam (228-2500-012)
(2) 1x14 Beam (228-2500-013)
(4) 1x16 Beam (228-2500-014)
(2) 1x18 Beam (228-2500-015)
(2) 1x20 Beam (228-2500-016)
(5) 2x2 Beam (228-2500-017)
(4) 2x3 Beam (228-2500-018)
(6) 2x4 Beam (228-2500-019)
(4) 2x5 Beam (228-2500-020)
(6) 2x6 Beam (228-2500-021)
(6) 2x7 Beam (228-2500-022)
(6) 2x8 Beam (228-2500-023)
(2) 2x9 Beam (228-2500-024)
(4) 2x10 Beam (228-2500-025)
(10) 2x12 Beam (228-2500-026)
(2) 2x14 Beam (228-2500-027)
(4) 2x16 Beam (228-2500-028)
(2) 2x18 Beam (228-2500-029)
(8) 2x20 Beam (228-2500-030)
(2) 3x3 Plate (228-2500-031)
(4) 3x4 Plate (228-2500-032)
(4) 3x6 Plate (228-2500-034)
(2) 3x10 Plate (228-2500-036)
(4) 3x16 Plate (228-2500-038)
(4) 4x4 Plate (228-2500-040)
(2) 4x8 Plate (228-2500-043)
(221) 1x1 Connector Pin (228-2500-060)
(53) 1x2 Connector Pin (228-2500-061)
(21) 2x2 Connector Pin (228-2500-062)
(11) 0.25x Pitch Standoff (228-2500-063)
(13) 0.5x Pitch Standoff (228-2500-064)
(13) 1x Pitch Standoff (228-2500-065)
(15) 2x Pitch Standoff (228-2500-067)
(5) 4x Pitch Standoff (228-2500-070)
(6) 6x Pitch Standoff (228-2500-072)
(7) 1x1 Idler Pin (228-2500-073)
(6) 2x Pitch Plastic Motor Shaft (228-2500-078)
(6) 4x Pitch Plastic Motor Shaft (228-2500-079)
(6) 3x Pitch Capped Plastic Shaft (228-2500-081)
(4) 5x Pitch Capped Plastic Shaft (228-2500-083)
(7) 0x2 Idler Pin (228-2500-084)
(22) 0x2 Connector Pin (228-2500-086)
(21) 0x3 Connector Pin (228-2500-087)
(6) 3x Pitch Plastic Motor Shaft (228-2500-094)
(50) 0x1 Sheet Pin (228-2500-099)
(11) 0.5x Pitch Standoff Extender (228-2500-109)
(24) Washer (228-2500-112)
(28) 0.25x Pitch Spacer (228-2500-114)
(2) 4x Pitch Shaft (228-2500-120)
(4) 6x Pitch Shaft (228-2500-122)
(6) Large Chassis Corner Connector (228-2500-126)
(15) Small Chassis Corner Connector (228-2500-127)
(11) 2x Wide, 1x2 Corner Connector (228-2500-128)
(9) 1x Wide, 1x1 Corner Connector (228-2500-129)
(13) 1x Wide, 1x1 Offset Corner Connector(228-2500-130)
(4) 2x Wide, 2x1 Offset Corner Connector (228-2500-131)
(5) 2x Wide, 2x1 Corner Connector (228-2500-132)
(3) 2x Wide, 1x1 Offset Corner Connector (228-2500-133)
(10) 2x Wide, 2x2 Corner Connector (228-2500-134)
(8) 2x Wide, 1x2 Offset Corner Connector (228-2500-135)
(4) 2x Wide, 2x2 Offset Corner Connector (228-2500-136)
(4) 2x Wide, 3x2 Corner Connector (228-2500-137)
(32) Rubber Shaft Collar (228-2500-143)
(4) 3x4 Tee Beam (228-2500-144)
(5) 2x3 Right Angle Beam (228-2500-145)
(4) 3x3 Right Angle Beam (228-2500-146)
(4) 3x3 30 Degree Angle Beam (228-2500-147)
(4) 3x3 45 Degree Angle Beam (228-2500-148)
(4) 3x3 60 Degree Angle Beam (228-2500-149)
(4) 3x5 Right Angle Beam (228-2500-150)
(4) 4x4 Offset Right Angle Beam (228-2500-151)
(10) 1x1 Beam (228-2500-154)
(3) Rubber Band Anchor (228-2500-157)
(11) Cable Anchor (228-2500-158)
(13) Mini Standoff Connector (228-2500-170)
(12) Straight Standoff Connector (228-2500-171)
(9) End Standoff Connector (228-2500-172)
(10) 45 Degree Standoff Connector (228-2500-175)
(9) 90 Degree Standoff Connector (228-2500-178)
(4) 2x11 Beam (228-2500-206)

Motion

(2) Tire (200 mm Travel) (228-2500-209)
(16) 12 Tooth Gear (228-2500-213)
(6) 36 Tooth Gear (228-2500-214)
(2) 60 Tooth Gear (228-2500-215)
(2) Worm Gear (228-2500-219)
(2) Double 2x Wide, 2x2 Corner Connector (228-2500-220)
(8) 24 Tooth Gear (228-2500-227)
(4) 48 Tooth Gear (228-2500-228)
(113) Chain Link (228-2500-230)
(160) Tank Tread Attachment Link (228-2500-231)
(8) 8 Tooth Sprocket (228-2500-232)
(6) 16 Tooth Sprocket (228-2500-233)
(6) 24 Tooth Sprocket (228-2500-235)
(13) Traction Link (228-2500-239)
(11) Short Intake Flap (228-2500-240)
(10) Medium Intake Flap (228-2500-241)
(8) Long Intake Flap (228-2500-242)
(2) 1x4 Crank Arm with 23 Tooth Gear (228-2500-246)
(8) 12t Hybrid Gear (228-2500-250)
(6) 24t Hybrid Gear (228-2500-251)
(6) 36t Hybrid Gear (228-2500-252)
(2) 12x Pitch Shaft (228-2500-263)
(8) Double 1x Wide, 1x1 Corner Connector (228-2500-270)
(5) Double 2x Wide, 1x2 Corner Connector (228-2500-271)
(8) Double 1x Wide, 2x1 Corner Connector (228-2500-272)
(6) Double 2x Wide, 1x2 Offset Corner Connector (228-2500-274)
(4) Double 2x Wide, 2x2 Double Offset Corner Connector (228-2500-277)
(4) 1x Wide, 1x2 Corner Connector (228-2500-279)
(4) 2x Wide, 1x3 Offset Corner Connector (228-2500-283)
(5) 1x Pitch Plastic Motor Shaft (228-2500-328)
(4) 2x Wide, 60 Degree Omni 1x2 Corner Connector (228-2500-368)
(4) 2x Wide, 30 Degree Right 1x2 Corner Connector (228-2500-371)
(4) 2x Wide, 30 Degree Left 1x2 Corner Connector (228-2500-372)
(2) 1x1 Left Corner Beam (228-2500-391)
(2) 1x1 Right Corner Beam (228-2500-392)
(4) 2x1 Left Corner Beam (228-2500-400)
(4) 2x1 Right Corner Beam (228-2500-401)
(2) 2x2 Left Corner Beam (228-2500-406)
(2) 2x2 Right Corner Beam (228-2500-407)
(2) 2x1 Extended Left Corner Beam (228-2500-408)
(2) 2x1 Extended Right Corner Beam (228-2500-409)
(2) 2x2 Extended Left Corner Beam (228-2500-412)
(2) 2x2 Extended Right Corner Beam (228-2500-413)
(2) 1x Wide Spool (228-2500-420)
(2) 2x Wide Spool (228-2500-421)
(2) 12x Pitch Rope (228-2500-430)
(2) 24x Pitch Rope (228-2500-438)
(1) 48x Pitch Rope (228-2500-442)
(2) Silicone Rubber Band #32 (228-2500-468)
(2) Silicone Rubber Band #117B (228-2500-470)
(2) 6x2x2 Tee Beam (228-2500-478)
(1) 2x8 Smooth Panel (228-2500-524)
(8) 8x Pitch Standoff (228-2500-1061)
(10) Truss Standoff Connector (228-2500-1109)
(8) 1x6 (3-4-5 Triangle) Diagonal Offset Truss Beam (228-2500-1110)
(2) 7x9x11 (6-8-10 Triangle) Truss Plate (228-2500-1117)
(4) 1x3 Center Lock Beam (228-2500-1141)
(2) 3x3 Wye Lock Beam (228-2500-1159)
(6) 2x3 Delta Tee Beam (228-2500-1189)
(6) 2x4x2 Double 60 Degree Beam (228-2500-1199)
(2) Small Wheel Hub (44mm) (228-2500-1208)
(3) 2x30 mm Square Silicone Band (228-2500-1225)
(4) 2x4 Wedge Beam (228-2500-1240)
(4) 3x5 Wedge Beam (228-2500-1245)
(8) Triple 1x Wide, 1x1 Corner Connector (228-2500-1250)
(8) Triple 2x Wide, 2x2 Corner Connector (228-2500-1253)
(2) 1x2 Left Chassis Corner Connector (228-2500-1254)
(2) 1x2 Right Chassis Corner Connector (228-2500-1255)
(4) Quad 2x Wide, 2x2 Corner Connector (228-2500-1258)
(4) 2x Wide, 3x3 60 Degree Angle Beam (228-2500-1268)
(4) Cam Follower (228-2500-1303)
(2) Small 2x Pitch Drop Cam (228-2500-1305)
(2) Large 1x Pitch Drop Cam (228-2500-1306)
(2) 4x3 1x Offset Trapezoid Beam (228-2500-1357)
(1) 6x Pitch Flywheel (75g) (228-2500-1402)
(2) 16 Tooth Ratchet (228-2500-1407)
(3) Short Low-Profile Pawl (228-2500-1411)
(8) .5x Pitch Idler Pulley (228-2500-1413)
(6) 1x6 Linear Motion Beam (228-2500-1457)
(6) 1x8 Linear Motion Beam (228-2500-1459)
(6) 2x Pitch Linear Motion Bracket (228-2500-1469)
(4) 1x Pitch Linear Motion Bracket (Snap) (228-2500-1470)
(8) 1x6 Continuous Linear Motion Rack Gear (228-2500-1473)
(1) 2x Pitch Shock Absorber (Strong) (228-2500--480)
(4) 2x2 30 Degree Beam (228-2500-1485)
(4) 2x2 45 Degree Angle Beam (228-2500-1486)
(5) 1x4 Low-Profile End Lock Beam (228-2500-1548)
(4) 2x6x2 30 Degree Jogged Beam (228-2500-1556)
(1) 2x Pitch Shock Absorber (Weak) (228-2500-1560)
(4) 3x12 Girder Plate; 2x8 2x Offset Trapezoid (228-2500-1600)
(16) Ball Pin Bushing (228-2500-1660)
(2) 1x3 Ball Socket Linkage (228-2500-1664)
(2) 1x4 Ball Socket Linkage (228-2500-1665)
(8) 1x4 Single-Ended Ball Socket Beam (228-2500-1689)
(10) 2x2 Center Offset Round Lock Beam (228-2500-1925)
(4) 2x Wide, Ø32.2mm Diameter Hub (228-2500-1950)
(2) 2x Wide, Ø48.5mm Diameter Hub (228-2500-1953)
(4) 2x Wide, 3.5x Pitch Diameter Balloon Tire
Trapezoid Offroad Tread) (228-2500-1957)
(2) 2x Wide, 5x Pitch Diameter Balloon Tire (Racing Slick Tread) (228-2500-1958)
(2) Small Rubber Intake Belt (228-2500-1960)
(1) Large Rubber Intake Belt (228-2500-1961)
(3) 2x Pitch Capped Shaft (228-2500-2219)
(3) 3x Pitch Capped Shaft (228-2500-2221)
(3) 4x Pitch Capped Shaft (228-2500-2223)
(2) 5x Pitch Capped Shaft (228-2500-2225)
(4) 2x Pitch Motor Shaft (228-2500-2234)
(4) 3x Pitch Motor Shaft (228-2500-2236)
(4) 4x Pitch Motor Shaft (228-2500-2238)
(2) 2x12 Plastic Sheet (228-2500-2710)
(2) 6x6 Plastic Sheet (228-2500-2711)
(2) 6x12 Plastic Sheet (228-2500-2712)
(4) Omni Wheels (228-2536-000)
(1) Pin Tool (228-4035-000)

How to Start a Competition Team

IQ Competition Kit Contents

VEX IQ Competition Kits

228-7980 - IQ Competition Kit (2nd gen) 18.2 lbs (8.2 kgs)

IQ Robot Battery

Internal rechargeable Lithium Ion cells
Charged through a USB-C connector
Charge time is 2 hours
Should last a full classroom day

IQ Controller

Internal rechargeable Lithium Ion cell
Charged through a USB-C connector
Charge time is 2 hours
Should last for months on one charge
