Rubber Bands
VEX Rubber Bands have dozens of uses on a robot. Their spring-like properties make them perfect for latches, triggers, and return mechanisms. EPDM Rubber Bands and Synthetic Rubber Bands work better for high elongation uses, while Silicone Rubber Bands have a higher coefficient of friction against many types of plastic, enabling your intake mechanisms to grip objects easier. See the Material Type tab below for information regarding latex content.
| CAD File |
|---|
275-1089
- #32 Rubber Bands
276-3990
- #64 Rubber Bands
228-6633
- (10) Silicone Rubber Band #32 (228-2500-468)
228-6634
- (10) Silicone Rubber Band #64 (228-2500-475)
276-8076
- (10) EPDM Elastic Bands #32
276-8077
- (10) EPDM Elastic Bands #64
Note: VEX Rubber Bands are not made with natural rubber latex. They are / may be made in manufacturing facilities that make both latex and non-latex Rubber Bands. There may be trace amounts of latex on any given VEX Rubber Band.
275-1089 & 276-3990
Synthetic Rubber
228-6633 & 228-6634
Silicone
276-8076 & 276-8077
EPDM (Ethylene Propylene Diene Monomer) Rubber
Size

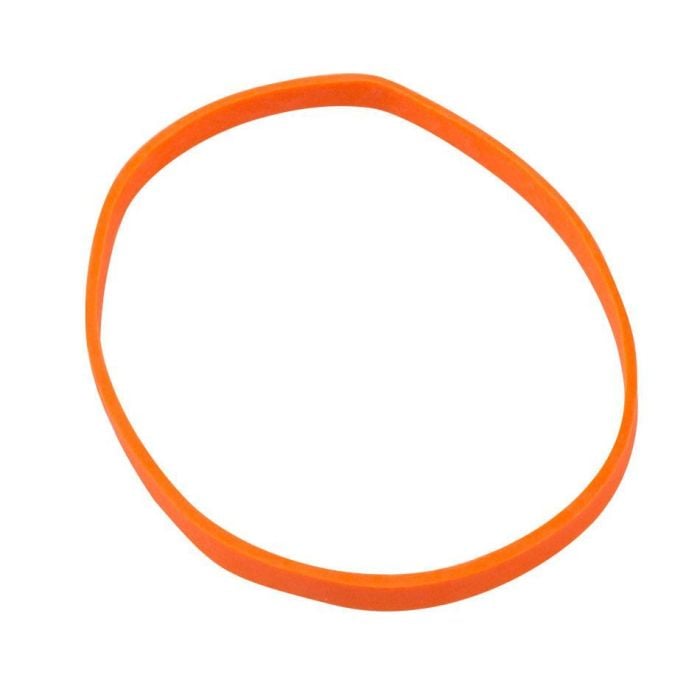

Rubber Band #32 (275-1089)
- Length: 3.125" (79 mm)
- Width: 1/8" (3 mm)
- Thickness: 1/32" (0.8 mm)
 Rubber Band #64 (276-3990)
- Length: 3.5" (89 mm)
- Width: 1/4" (6 mm)
- Thickness: 1/32" (0.8 mm)
Silicone Rubber Band #32 (228-6633)
- Length: 3.75" (95 mm)
- Width: 1/8" (3 mm)
- Thickness: 1/20" (1.27 mm)
Silicone Rubber Band #64 (228-6634)
- Length: 3.75" (95 mm)
- Width: 1/4" (6 mm)
- Thickness: 1/20" (1.27 mm)
EPDM Elastic Bands #32 (276-8076)
- Length: 3.75" (95 mm)
- Width: 1/4" (6 mm)
- Thickness: 1/32" (0.8 mm)
EPDM Elastic Bands #64 (276-8077)
- Length: 3.5" (89 mm)
- Width: 1/4" (6 mm)
- Thickness: 1/32" (0.8 mm)
