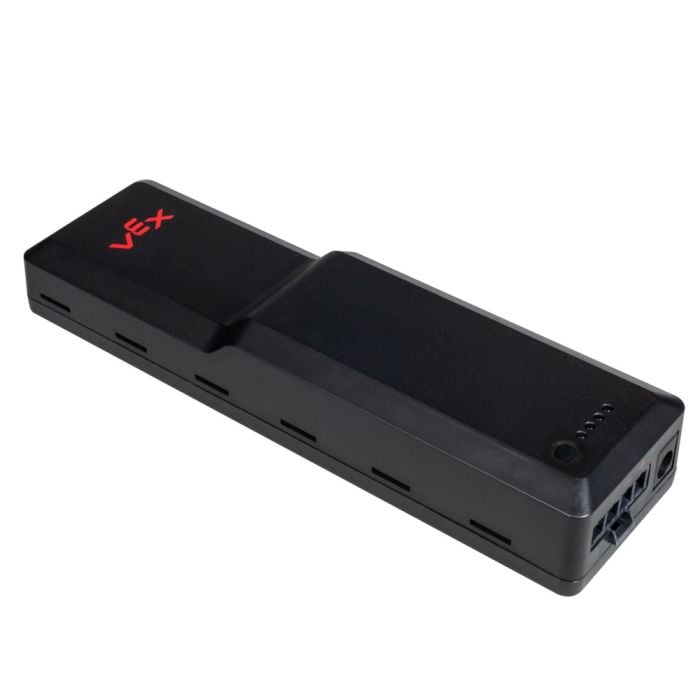

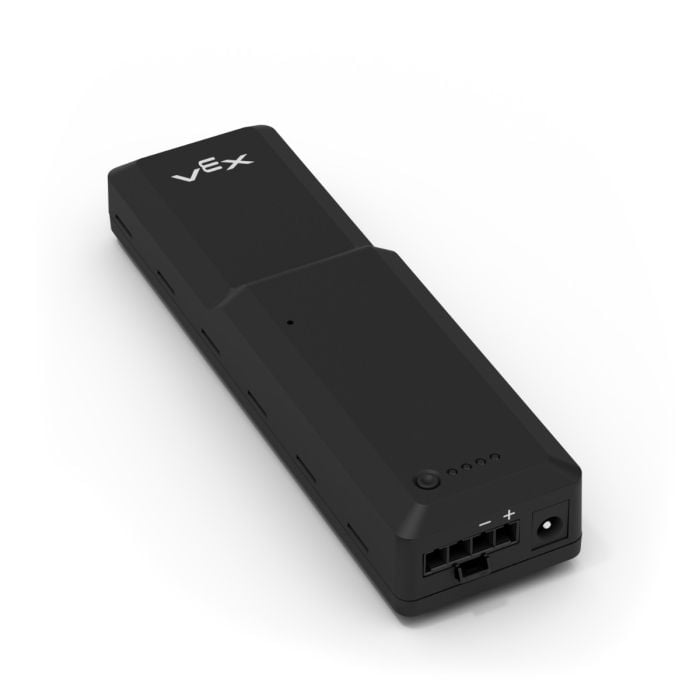

V5 Robot Battery Li-Ion 1100mAh

276-4811

The V5 Robot Battery Li-Ion 1100mAh is the next evolution of the VEX EDR NiMh Battery, which will provide you consistent performance every time you power up your robot. This Lithium Iron Phosphate (LiFePO4) battery is equipped with circuitry and control to allow for higher sustained power and more reliable function. The V5 System as a whole is designed to produce identical motor performance at any battery charge level. This means that the same battery can be used for multiple competition matches or class periods before needing to be recharged. LiFePO4 batteries are proven to offer longer life cycles, and are safer than Lithium Ion batteries.

  • Built-in charge indicator lights
  • Charge time is approximately one hour
  • Battery run time depends on many factors including your robot design, your driving, and the number of motors used. Robots' often get 30+ minutes of heavy drive time from a single charge. Competition teams should be able to use one Robot Battery for multiple matches without recharging. Remember that with V5, a low battery does not change the motor’s performance.

    Note: Battery power cable and charger not included. (Power cable ships with V5 Robot Brain)
$49.99

Availability: Expected to Ship in August*

OR
* We anticipate V5 to ship in August. However, there is no guarantee to the actual ship date.
Product Specs
V5 Robot Battery Specifications 7.2V Robot Battery
Battery Chemistry Lithium Iron (LiFePO4) Nickel Metal Hydride (NiMH)
Approximate Lifespan 2000 full recharge cycles 500 full recharge cycles
Nominal Voltage 12.8 Volts 7.2 Volts
Maximum Current 20 Amps 8 Amps (12 Amps with power expander)
Maximum Output Power 256 Watts 58 Watts (86 Watts with power expander)
# Motors at Peak Power 10 3 (5 with power expander)
Low Battery Performance Motors output 100% power Motors output 51% power
Capacity 14 Wh 20 Wh (32 Wh with power expander)
Weight 0.77 lbs (350 g)
0.47 lbs (213 g)
Dimensions 1.82" W x 6.31" L x 1.18" H
(46.45mm W x 160.45 mm Lx 30.33 mm H)
1.9" W x 5.23' L x 0.97" H
(48.26 mm W x 132.72 mm Lx 24.64 mm H)




Kit Contents
  • (1) V5 Robot Battery
