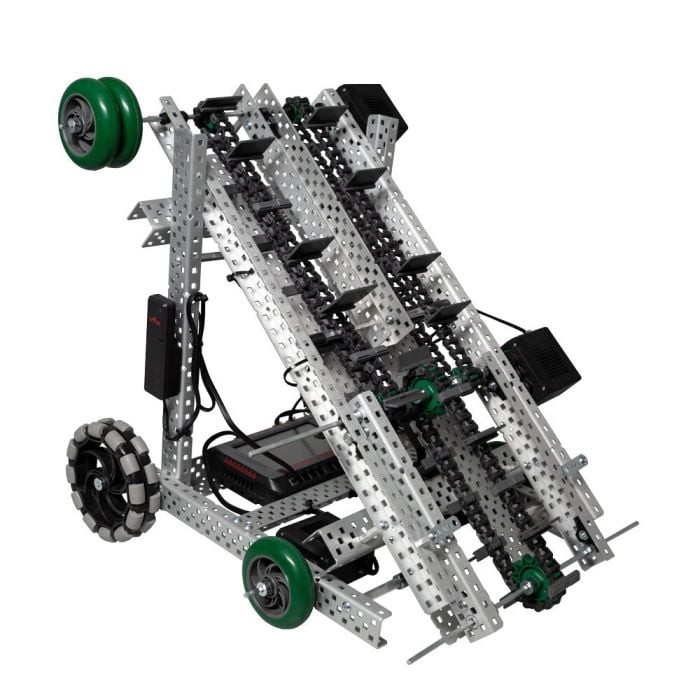

VEX V5 Competition Starter Kit
Works with
products and accessories.
VEX V5, VEX U, VEX AI
legal.
Take educational robotics to the next level by competing in the VEX Robotics Competition . The V5 Competition Starter Kit includes a complete V5 control system, aluminum structural elements, and high-strength parts so that a team of students can build a bigger, stronger, and faster robot.
Compete with over 11,000 worldwide VEX Robotics Competition teams
Lightweight aluminum structure designed specifically for competition
Scalable programming software suite available with VEXcode
Recommended: one competition team per kit.
View our Sales Brochure
Electronics
(1) V5 Robot Brain
(1) V5 Controller
(1) V5 Robot Radio
(1) V5 Robot Battery Li-Ion 1100mAh
(1) V5 Robot Battery Cable
(1) V5 Robot Battery Charger
(4) V5 Smart Motors
(2) Bumper Switch v2
(3) 300mm Smart Cables
(1) 600mm Smart Cable
(1) 900mm Smart Cable
(1) USB-A to Micro-USB Cable
(2) Brain Attachment Flange - Short
(2) Brain Attachment Flange - Long
Motion
(1) V5 Claw Assembly
(4) 2.75" (220mm Travel) Anti-Static Wheels
(2) 4" (320mm Travel) Anti-Static Wheel
(5) 12T High Strength Metal Pinion
(4) 36T High Strength Gears v2
(4) 60T High Strength Gears v2
(5) 84T High Strength Gears v2
(9) High Strength Shaft Adapter (1/8” Square Bore, 1/2" Long)
(26) High Strength Metal Gear Insert
(16) Free-Spinning Gear Inserts
(4) 2" or 4x Pitch Shafts
(6) 3" or 6x Pitch Shafts
(1) 3.5" or 7x Pitch Shaft
(5) 4" or 8x Pitch Shafts
(4) 12" or 24x Pitch Shafts
(4) 6T High Strength Sprockets
(2) 12T High Strength Sprockets
(2) 18T High Strength Sprockets
(2) 24T High Strength Sprockets
(2) 30T High Strength Sprockets
(140) High Strength Chain Links
(20) Chain Attachment Links
(25) Tank Tread Traction Links
(30) Conveyor-belt Base Links
(10) Short Conveyor-belt Inserts
(10) Medium Conveyor-belt Inserts
(10) Tall Conveyor-belt Inserts
Structure
(3) 2x2x2x20 Aluminum U-Channels
(2) 1x2x1x15 Aluminum C-Channels
(4) 1x2x1x25 Aluminum C-Channels
(6) 1x2x1x35 Aluminum C-Channels
(2) 2x2x14x20 Aluminum Angles
(4) 2x2x25 Aluminum Angles
(2) 1x1x35 Aluminum Angles
(4) 5x25 Aluminum Plates
(4) 90-Degree Gusset Plate
(4) 90-Degree Gusset Angle
(25) Bearing Flat
(12) Pillow Block Bearing
(8) Drive Shaft Bar Locks
(25) Rubber Shaft Collar
(32) Star Drive Shaft Collars
(6) 0x2 Connector Pin
(8) 1/8" Spacers
(20) 1/4" Spacers
(28) 3/8" Spacers
(13) 1/2" Spacers
(2) 7/8" Spacers
(25) #8-32 x 1/4" Locking Star Drive Screws
(29) #8-32 x 1/2" Locking Star Drive Screws
(6) #8-32 x 1.500" Locking Star Drive Screws
(82) #8-32 x 3/8" Star Drive Screws
(25) #8-32 x 1/2" Star Drive Screws
(27) #8-32 x 1.000" Star Drive Screws
(32) #8-32 Hex Nuts
(200) #8-32 Nylock Nuts
(35) 1-Post Hex Nut Retainer with Bearing Flat
(25) 1-Post Hex Nut Retainers
(27) 4-Post Hex Nut Retainers
(20) 0.50" Standoffs
(8) 1.00" Standoffs
(40) 2.00" Standoffs
Tools & Accessories
(2) #32 Rubber Bands
(2) V5 Battery Clips
(2) Open End Wrenches
(2) T8 Star Drive Keys
(4) T15 Star Drive Keys
(100) 4" Zip Ties
(1) V5 Clawbot Instruction Manual
V5 Competition Starter Kit
276-7030 - VEX V5 Competition Starter Kit
18.0 lbs (8.2 kgs)
